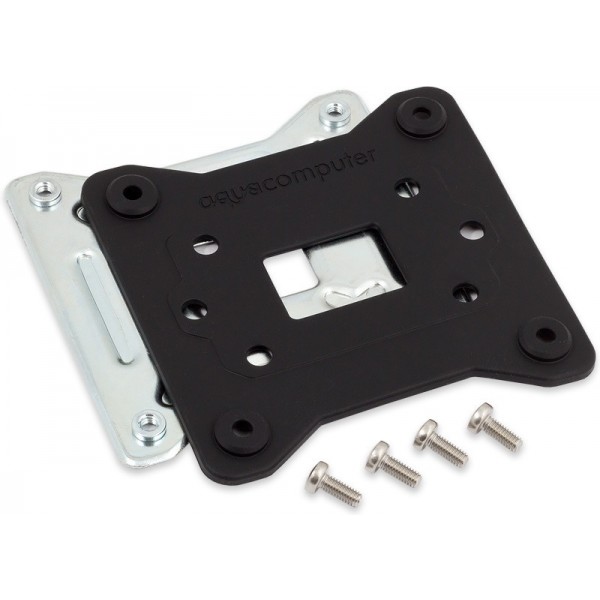

Aquacomputer Backplate for Cuplex Kryos, Socket 1200/1156/1155/1151/1150 (21493)

The Aquacomputer Backplate for Cuplex Kryos, Socket 1200/1156/1155/1151/1150 (21493) is a replacement back plate for cuplex kryos CPU waterblocks on Intel socket 1200, 1156, 1155, 1151 and 1150. A silicone insulation plate and four screws come with it.

Properties

Sockets

Intel 1200, 1156, 1155, 1151, 1150

For

cuplex kryos PRO, cuplex kryos Delrin, cuplex PRO, cuplex XT, cuplex XT di

Insulation

Silicone plate between back plate and motherboard

Pieces

Back plate, insulation plate, 4 screws

What it does

The plate can be installed behind the motherboard, where it helps to distribute the pressure generated by the waterblock's mounting mechanism evenly. The included silicone plate goes between back plate and motherboard. It gives electrical insulation and protection for electronic components on the rear side of the board.

Compatibility

Aquacomputer lists the back plate as compatible with these blocks:

• cuplex kryos PRO
• cuplex kryos Delrin
• cuplex PRO
• cuplex XT and cuplex XT di

Aquacomputer adds that the backplate is already included in delivery of cuplex kryos XT and cuplex kryos HF, so those blocks need it only as a spare.

Other sockets

For socket 1700 there is the back plate for cuplex kryos, socket 1851/1700 (21500). More plates are in our brackets and backplates section.

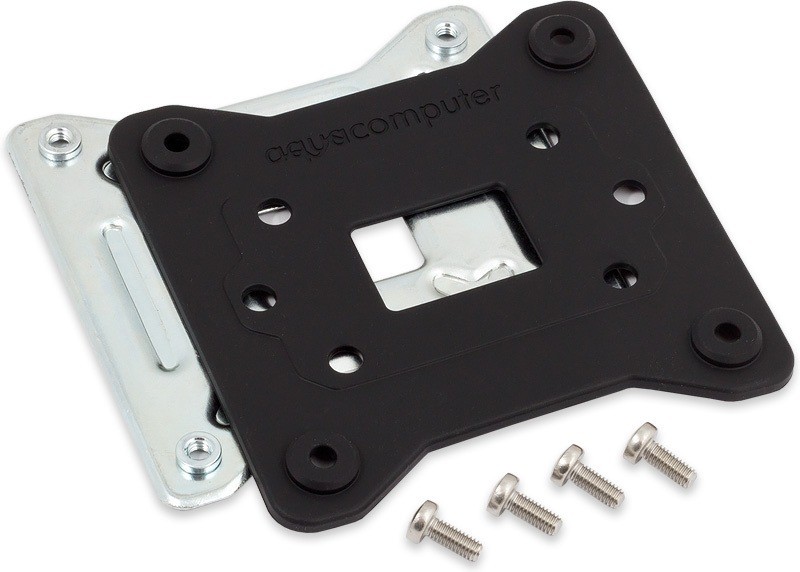

In the box

• 1x back plate
• 1x insulation plate made from silicone
• 4x screws
