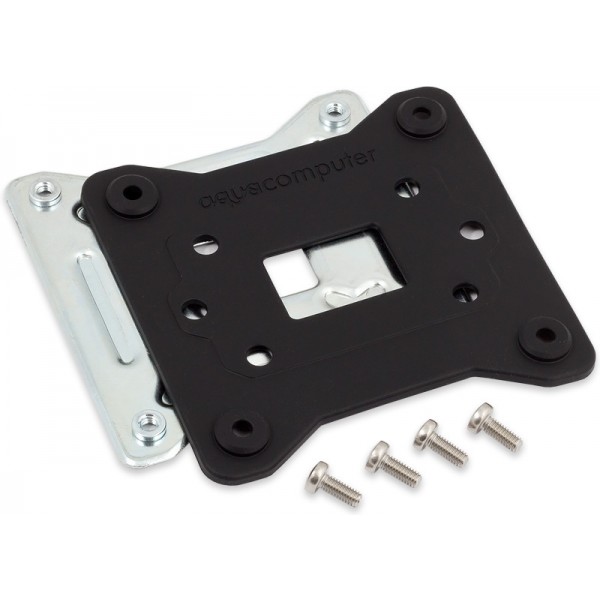

Aquacomputer Backplate for Cuplex Kryos, Socket 1851/1700 (21500)

The Aquacomputer Backplate for Cuplex Kryos, Socket 1851/1700 (21500) is a back plate for cuplex kryos CPU waterblocks on Intel socket 1851 and 1700, mounted behind the mainboard. Delivery also includes a rubber insulating plate and four screws.

Properties

Sockets

Intel 1851 and 1700

For

cuplex kryos XT, HF, PRO, Delrin and NEXT, cuplex PRO, cuplex XT, cuplex XT di

Insulation

Rubber plate between back plate and motherboard

Pieces

Back plate, insulation plate, 4 screws

What it does

The waterblock's mounting mechanism presses the block onto the CPU. Installed behind the motherboard, the plate takes that pressure and ensures an even distribution of it, which relieves the board itself. A rubber cover sits between backplate and mainboard: it gives electrical insulation and helps to protect components on the underside of the board.

Compatibility

Aquacomputer lists the back plate as compatible with these blocks:

• cuplex kryos XT
• cuplex kryos HF
• cuplex kryos PRO
• cuplex kryos Delrin
• cuplex PRO
• cuplex XT and cuplex XT di
• cuplex kryos NEXT

Other sockets

For Intel 1156, 1155, 1151 and 1150 boards there is the back plate for cuplex kryos, socket 1200/1156/1155/1151/1150 (21493). More plates are in our brackets and backplates section.

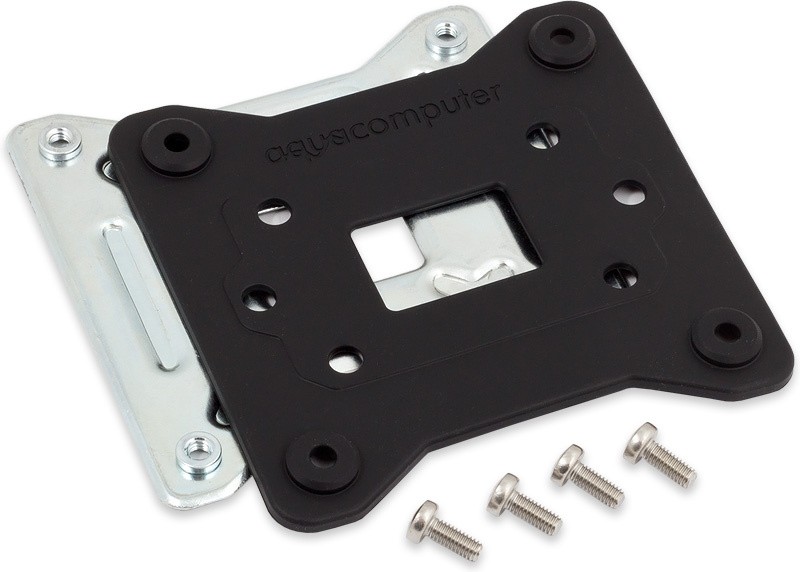

In the box

• 1x back plate
• 1x insulation plate made from rubber
• 4x screws
