Aquacomputer Retrofit Kit Socket 2011-3/2011/2066 for Cuplex Kryos NEXT Acrylic Glass Version (21694)

The Aquacomputer Retrofit Kit Socket 2011-3/2011/2066 for Cuplex Kryos NEXT Acrylic Glass Version (21694) is a CPU block mounting kit for Intel socket 2011-3, 2011 and 2066 motherboards. It adapts an existing cuplex kryos NEXT or cuplex kryos NEXT VISION to those sockets. Please note: it is compatible with the acrylic glass version only.

Properties

For

cuplex kryos NEXT and NEXT VISION, acrylic glass version

Sockets

2011-3, 2011, 2066

Pieces

2 mounting plates with spring cups, 4 knurled screws

Material

Stainless steel plates

Swapping the retention plates

This set contains the necessary plates to adapt the block, and it also includes a suitable set of mounting material. First remove the four screws from the base part of the block and lift the base part off. The acrylic version has no set screws to undo, so the old retention plates pull straight out of the water block housing.

Slide the new plates into the recesses of the housing. A gasket that came off during disassembly goes back into its groove, aligned exactly with it. Then put the base part on the housing and refit the countersunk head screws from the first step, by hand only and with no excessive force.

What you need to convert it

The kit is for an acrylic glass cuplex kryos NEXT you already own. Mounting the converted block on the motherboard follows the block's own installation steps. Other mounting parts are in our mounting hardware section, and complete blocks under Intel CPU blocks.

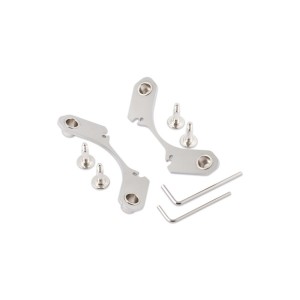

In the box

• Two stainless steel mounting plates with spring cups
• Four knurled screws

Aquacomputer's manual for the cuplex kryos NEXT retrofit kit is a one-page English PDF with pictures of the disassembly and reassembly.
