Details

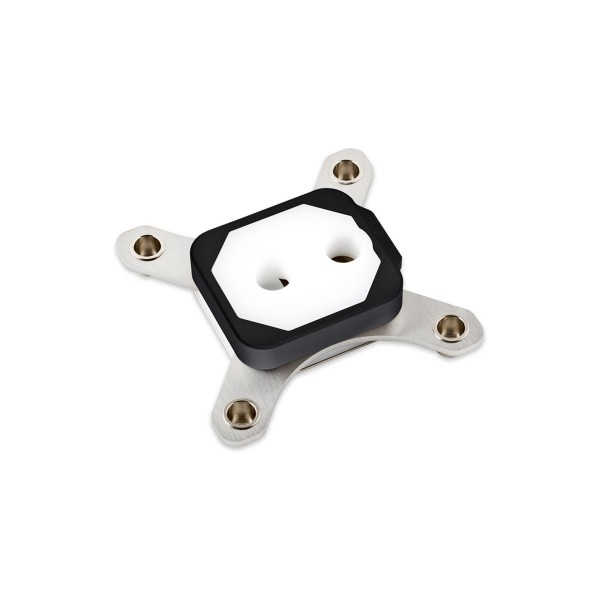

The Aquacomputer Cuplex Kryos NEXT RGBpx Black 1200/1156/1155/1151/1150, Acetal / Nickel (21828) is a CPU water block for Intel socket 1200, 1156, 1155, 1151 and 1150. Its top is made of white acetal under a black anodized aluminum frame, and its base is nickel-plated copper.
Properties
- Sockets
- Intel 1200, 1156, 1155, 1151, 1150
- Top
- White acetal, black aluminum frame
- Base
- Nickel-plated copper
- Ports
- 2x G1/4, 25.5 mm apart
- Size
- 94 x 94 x 22 mm (not including screws and back plate)
- Lighting
- 11 RGBpx LEDs
Cooler base and flow
Aquacomputer says the cuplex kryos NEXT represents a new milestone in the development of CPU water coolers, and that the areas of cooling performance, assembly and functionality have been perfected here. Through an integrated flat nozzle in the housing, coolant enters the middle of the extremely fine microstructure of the base and flows out to both sides. Aquacomputer says this thus sets new standards for cooling performance.
Mounting system
The mounting plates are solid stainless steel sheet, 2.5 mm thick, with nickel-plated spring cups pressed in. Attaching the cooler by knurled screws and springs leaves the mainboard visually very tidy, due to the holding system's low height. The bracket has a defined stop, which gives optimal contact pressure and force distribution.
As on all versions for socket 1200/115x or AM3, the block is equipped with a steel backplate with a silicone cover, which additionally stabilizes the mainboard.
The cooler comes with excellent thermal paste: 0.5 grams of Thermal Grizzly Kryonaut, packed in a syringe and easily applied with the enclosed plastic spatula.
RGBpx illumination
Under the black aluminum cover, 11 individually addressable RGBpx LEDs are integrated into the block. The included cable links them to an RGBpx output of an Aqua Computer device; more RGBpx parts can be daisy-chained.
Compatibility
Aquacomputer lists these RGBpx outputs:
- D5 NEXT (41118)
- farbwerk 360 (53279)
- farbwerk nano (53280, 53281)
- OCTO (53286)
- QUADRO (53256)
For a motherboard header for addressable LEDs, use the RGBpx adapter (53285), sold separately.
What the loop needs
The loop also needs a pump, radiator and two G1/4 fittings. Coolant goes in through the port close to the center and returns from the lateral port next to the "NEXT" engraving; reversed flow significantly lowers cooling performance. For corrosion inhibition Aquacomputer requires Double Protect Ultra as coolant.
Notes
- Leak-check block and fittings before other PC parts get mains power.
In the box
- 1x mounted cooler
- 1x mounting kit (screws, springs, etc.)
- 1x Thermal Grizzly Kryonaut thermal paste, approx. 0.5 grams in syringe
- 1x plastic spatula
- 1x RGBpx connection cable 50 cm
- 1x assembly instructions
The manual covers mounting and flow direction.
