Details

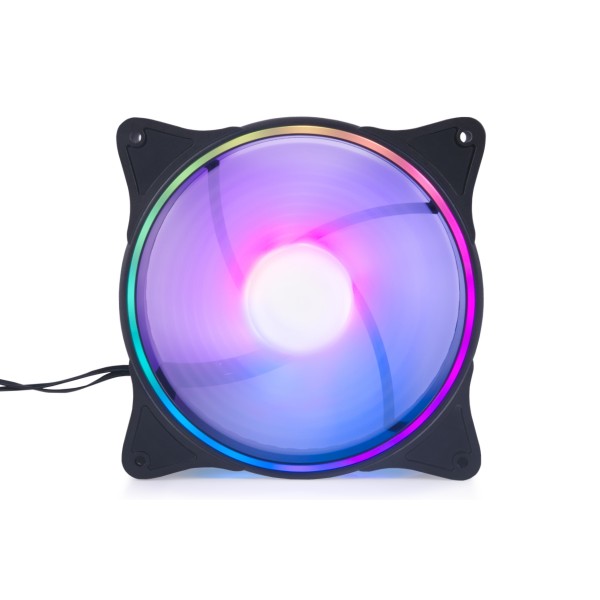

The Alphacool Rise Aurora 140mm Fan 140x140x25mm is a 140 x 140 x 25 mm fan for a radiator or a case. It runs from 0 to 2000 rpm on a 4-pin PWM connector and has 24 digitally addressable 5V RGB LEDs in the frame and hub, on a JST 3-pin connector of their own. The smaller size is the Rise Aurora 120 mm fan.
Properties
- Size (L x W x H)
- 140 x 140 x 25 mm
- Speed
- 0 - 2000 rpm (+/-10%)
- Connector
- 4-Pin PWM, 40 cm cable
- Lighting
- 24 5V aRGB LEDs, 3-Pin JST
- Max. air flow
- 154.1 m³/h
- Static pressure
- 2.20 mm H2O
Control and lighting
Alphacool says the Rise fan offers a wide range of control as well as superior Digital RGB LED lighting. In its words, the individually controllable 5V aRGB LEDs, paired with the fan's special design, can create some unique effects while offering performance.
Brilliant illumination
There are LEDs in two places, built into the frame and into the hub, and together they illuminate the entire fan. Alphacool says this creates a unique illumination that looks very impressive. Thanks to the recessed light diffusers the light is distributed evenly, so you will not see sporadic uneven lighting or, as Alphacool's page adds, individual LEDs.
Wide control range and silent
Over PWM the fan can be controlled across its whole speed range. In addition, it offers a silent mode: the fan can be regulated down to 0 rpm, and then it will only start when it is needed, above 600 rpm. At 800 rpm, the fan is almost silent. At 2000 rpm, Alphacool gives an air flow rate of 154.1 m³/h, coupled with a high static pressure of 2.20 mm/H2O. This makes the fan, in Alphacool's word, perfect for mounting on radiators of a water cooling system or, alternatively, for use as a case fan.
Decouplers are located directly on the corners of the frame. They are soft foam pads that reduce the transmission of vibrations to the case, which in turn reduces noise. Tear-off edges on the fan blades also provide what Alphacool calls a significant reduction in noise.
Connectors
At 40 cm long, the PWM cable allows the fan to be connected straight to the motherboard or a fan controller, without the need for additional adapter cables or extensions. The digital aRGB LED illumination is controlled separately, via the JST connector. If required, adapters are available to change this into a standard 3 pin aRGB connector.
Technical data fan
| L x W x H | 140 x 140 x 25 mm |
| Speed | 0 - 2000 rpm (+/-10%) |
| Bearing | Sleeve Bearing |
| Connection | 4-Pin PWM |
| Cable length | 40 cm |
| Voltage | 12V DC |
| Power consumption | 6.6W (max) |
| Current consumption | 0.50A (0.55 max) |
| Static pressure | 2.20 mm H2O |
| Max. air flow | 154.1 m³/h |
| Noise | max. 38.4 dB(A) |
| MTBF | 30,000h |
| Speedometer signal | Yes |
| Auto-Restart | Yes |
Technical data aRGB
| LED type | 5V aRGB |
| Connection | 3-Pin JST |
| Cable length | 50 cm (Splitter after 40 cm) |
| Max. current consumption LEDs | 3.5W |
| LED quantity | Frame: 16 / Hub: 8 |
In the box
- 1x Alphacool Rise Aurora 140 mm fan (140x140x25mm)
Alphacool's 3D model of the fan is an STP file, and the 3D viewer shows it from every side.
