Details
Brilliant illumination

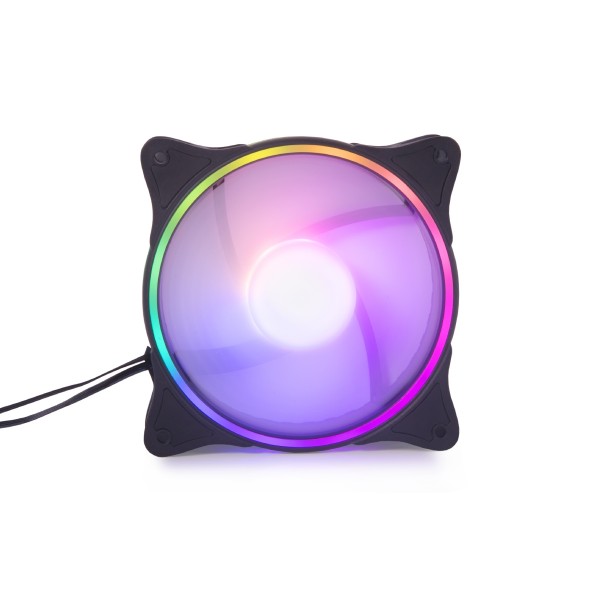

There are 20 digitally addressable 5V RGB LEDs built into the frame and hub that illuminate the entire fan. This creates a unique illumination that looks very impressive. Thanks to the recessed light diffusers, the light is distributed evenly, and you will not see sporadic uneven lighting.
Wide control range and silent
The fan can be controlled from 0 to 2600 rpm via the 4-pin PWM connector. In addition, it offers a silent mode, with which the fan can be regulated down to 0 rpm and then they will only start when they are needed above 350rpm. At 800 rpm, the fan is nearly silent, but still offers a good airflow (118.9m3/h) paired with a high static pressure (3.17mm/H2O). This makes the fan perfect for mounting on radiators of a water cooling system or for alternatively, as a case fan. Decouplers are located directly on the corners of the frame. The soft foam pads reduce the transmission of vibrations to the case, which in turn reduces noise. Tear-off edges on the fan blades also provide a significant reduction in noise.
Connectors?
The fan is controlled via a 4-pin PWM connector. The cable is 40 cm long. This allows the fan to be connected to the motherboard or a fan controller without the need for additional adapter cables or extensions. The digital aRGB LED illumination is controlled via a JST 3-pin connector and adapters are available to change this into a standard 3 pin aRGB connector if required.
| Technical Data fan | |
| L x W x H | 120 x 120 x 25 mm |
| Speed | 0—2500 rpm (+/-10%) |
| Bearing | Sleeve Bearing |
| Connection | 4-Pin PWM |
| Cable length | 40 cm |
| Voltage | 12V DC |
| Current consumption | 0,65A (0,72 max) |
| Static pressure | 3,17 H2O |
| Max. air flow | 118,9 m³/h |
| Noise | max. 31,5 dB(A) |
| MTBF | 50.000h |
| Speedometer signal | Yes |
| Auto-Restart | Yes |
| Technical data digital RGB | |
| LED type | 5V aRGB |
| Connection | 3-Pin JST |
| Cable length | 50cm (Splitter after 40cm) |
| Max. current consumption LEDs | 3,5W |
| LED quantity | Frame: 12 / Hub: 8 |
Download Data sheet PDF: Alphacool Rise Aurora 120 mm fan (120x120x25mm)
Additional Information
| NE US Item # | No |
|---|---|
| NE CA Item # | No |
| Amazon ASIN | NA |
| Manufacturer | Alphacool |
| Overall Dimensions | 120 x 120 x 25 (L x W x H) |
| RPM | 0—2500 rpm (+/-10%) |
| Air flow | 118.9 m³/h |
| Noise (dB) | max. 31.5 dB(A) |
| Air pressure | 3.17 H2O |
| Power Connector | 4-Pin PWM |
| Start voltage | No |
| Voltage | 12V |
| Material | No |
| Max Current Draw | 3.5W |
| Color | ARGB |
| LED | RGB |
| Fan Compatibility | 120mm |
| Included | 1x Alphacool Rise Aurora 120 mm fan (120x120x25mm) |
