Details

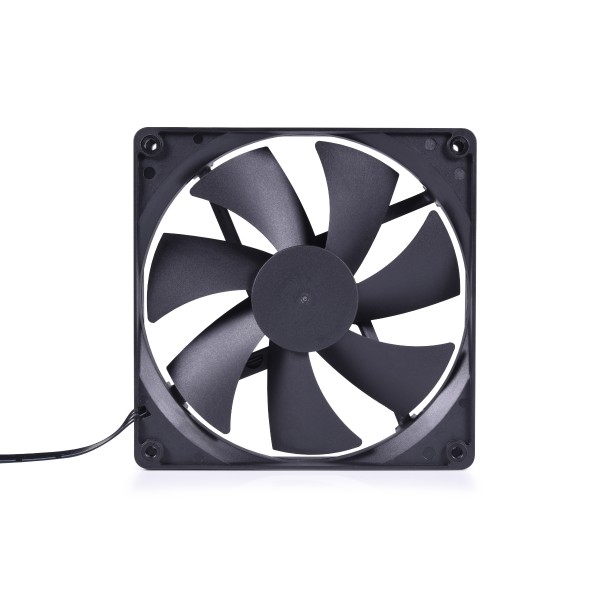

The Alphacool Core 140mm Fan PWM 3200rpm is a 140x140x25mm fan for radiators, CPU coolers and cases, with a control range from 0 to 3200 rpm over a 4-pin PWM connector. It is black and comes without aRGB lighting. The slower 140 mm version is the Core 140mm Fan PWM 2500rpm.
Properties
- Size
- 140 x 140 x 25 mm
- Speed
- 0 - 3200 rpm ±10%
- Connector
- 4-Pin PWM, 40 cm cable
- Maximum airflow
- 153.9 CFM
- Maximum static pressure
- 6.99 mm/H2O
- Noise level
- 51.0 (Max: 53.0) dBA
Radiator, CPU cooler or case fan
The fan is controlled via a PWM signal and is suitable as a fan on CPU coolers or radiators, though not only there. Alphacool calls its performance values (throughput & static pressure) excellent, and says that thanks to them it can also be used as a case fan. At maximum speed it allows the airflow listed above, paired with a static pressure which Alphacool rates as high. In Alphacool's words this makes the fan perfect for mounting on radiators of a water cooling system or for ventilating a case.
Double bearing
The double-bearing fan axis is smooth-running, on two ball bearings. Alphacool says this enables a long service life and quiet operation, and describes the fan as quiet and efficient with a wide control range. If you are looking for a powerful fan with no lighting, Alphacool says you will find it in this one.
Connections
The cable is 40 cm long. That lets the fan be connected directly to the mainboard (motherboard) or to a special, dedicated controller, without using additional adapter cables or extensions. Controllers are in our fan controllers section.
Voltage and running data
Alphacool's technical specifications give a nominal voltage of DC 12V, a starting voltage of 7V and a rated capacity (power) of 7.92 W, 9.00 W at most. The material is plastic, and fan control runs via PWM. Life expectancy is 70000 hours at 40 degrees Celsius. Among the other characteristics are a tachometer output, auto start and soft start, all listed with the dimensions in the table below.
Technical data
| Dimension (L x W x H) | 140 x 140 x 25 mm |
| Material | synthetic material (PBT UL94V-0) |
| Bearing Type | Two Ball Bearing |
| Rated Voltage | DC 12V |
| Operating Voltage | DC 7-14V |
| Start-up Voltage | 7V |
| Rated Current | 0.66 (Max: 0.75) A |
| Rated Power | 7.92 (Max: 9.00) W |
| Rated Speed | 0 - 3200 rpm ±10% |
| Max. Air Flow | 153.9 CFM |
| Max. Static Pressure | 6.99 mm/H2O |
| Noise level | 51.0 (Max: 53.0) dBA |
| Life Expectancy | 70000 h at 40 degrees Celsius |
| Connection | 4-Pin PWM |
| Speed Control Mode | via PWM |
| Operating Temperature | -10~+70 degrees Celsius (centigrade) |
| Other Features | Tachometer Output, Auto Start, Soft Start, Waterproof Level IP22 |
In the box
- 1x Alphacool Core 140mm Fan PWM 3200 (140x140x25mm), black
Alphacool's data sheet is a PDF. Its 3D model of this fan is an STP file, and the 3D viewer shows it from every side.
