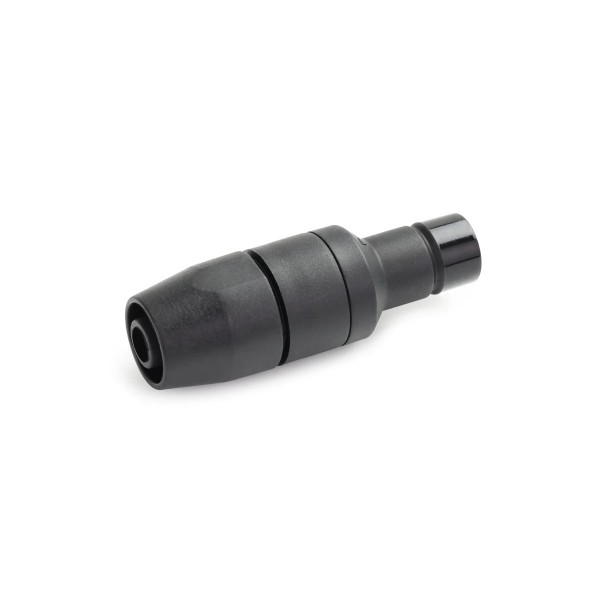

Alphacool ES Quick Release Coupling TPV PushIn Male Industry Version (17651)

The Alphacool ES Quick Release Coupling TPV PushIn Male Industry Version is a nylon quick disconnect half with a male push-in connection for TPV hoses of 12.7 / 7.6 mm, one coupling per pack. A male and female coupling are required for a complete connection, so this male version is designed for use in combination with a female version, such as the TPV PushIn Female coupling.

Properties

Tube size

12.7 / 7.6 mm TPV hose

Quick release side

Male, Push In

Size (L x D)

62 x 20 mm

Material

Nylon

Color

Black

Pieces in the pack

1

Push-in system

Thanks to their robust construction and push-in system, Alphacool says, installations can be easily expanded or maintained. All couplings in this series are compatible with each other, and they also fit into the existing sets. According to the maker the coupling enables a secure connection that remains reliable even with frequent coupling.

Hose connection

Alphacool describes the tensile strength as particularly high and says it was achieved by a locking collar located in the connection area of the TPV hose. When the hose is installed, this collar engages it and holds it firmly. Once the collar has engaged, this makes it impossible to remove the hose under normal circumstances.

Nylon

Alphacool names low weight as a key advantage of the Industry version. The couplings are made from what it calls high-quality nylon, so they are non-conductive and prevent short circuits. Alphacool calls that a particularly important factor in modern server environments with high packing density. Being ultra-lightweight, the material also facilitates handling and installation.

Flow and sealing

Conventional quick-release couplings often create high flow resistance due to narrow water lines. Unlike those, this series was developed for optimized flow, which according to Alphacool keeps resistance to a minimum while maximizing cooling performance. As always with Alphacool, a double seal is there, and the maker says it ensures absolute tightness for maximum safety. In addition, a locking clip ensures that the two halves cannot open accidentally.

What a run needs

The hose side takes 12.7 / 7.6 mm TPV tube, such as the AlphaTube TPV 12.7 / 7.6. Other halves for the push-in side are in our quick disconnect fittings section.

Technical data

Notes

• Note from Alphacool: drops may escape when disconnecting the coupling.
