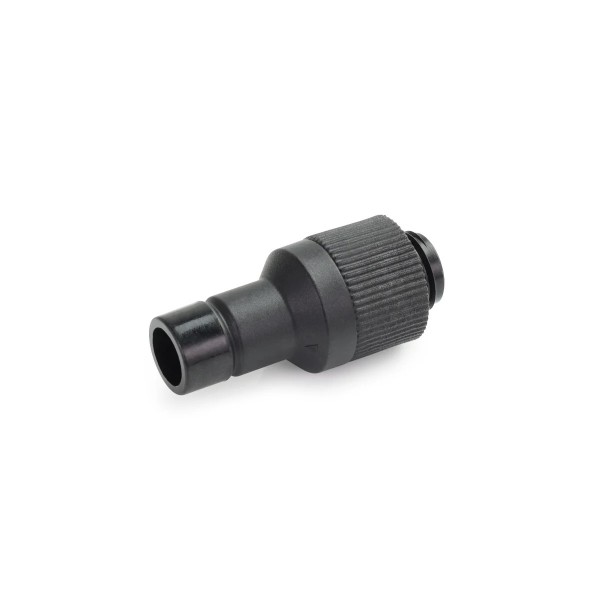

Alphacool ES Quick Release Coupling G1/4 AG Male - PushIn Industry Version (17653)

The Alphacool ES Quick Release Coupling G1/4 AG Male - PushIn Industry Version is a nylon quick disconnect half that combines a G1/4 male thread with a male push-in connection, one coupling per pack. A male and female coupling are required for a complete connection, so this one needs a female counterpart, such as the G1/4 AG Female coupling or the G1/4 IG Female coupling.

Properties

Thread

G1/4 male (external thread)

Quick release side

Male, Push In

Size (L x D)

46 x 20 mm

Material

Nylon

Color

Black

Pieces in the pack

1

Where it goes

Alphacool calls this coupling ideal for direct installation in cooling components or manifolds, where a quick and stable connection is required.

Push-in system

Thanks to the push-in system and what Alphacool calls their robust construction, installations built with these parts can be easily expanded or maintained. All couplings in this series are compatible with each other, and they also fit into the existing sets.

Nylon

The Industry version is made from what Alphacool calls high-quality nylon, and the key advantage it names is their low weight. Nylon is non-conductive, so the couplings prevent short circuits. Alphacool calls that a particularly important factor in modern server environments with high packing density. Being ultra-lightweight, the material also facilitates handling and installation.

Flow and sealing

Conventional quick-release couplings often create high flow resistance due to narrow water lines. Unlike those, this series was developed for optimized flow, which Alphacool says keeps resistance to a minimum while maximizing cooling performance. As always with Alphacool, a double seal is fitted, and the maker says this ensures absolute tightness for maximum safety. A locking clip additionally ensures that the coupling cannot be opened accidentally.

Technical data

Notes

• Note from Alphacool: drops may escape when disconnecting the coupling.
