Details

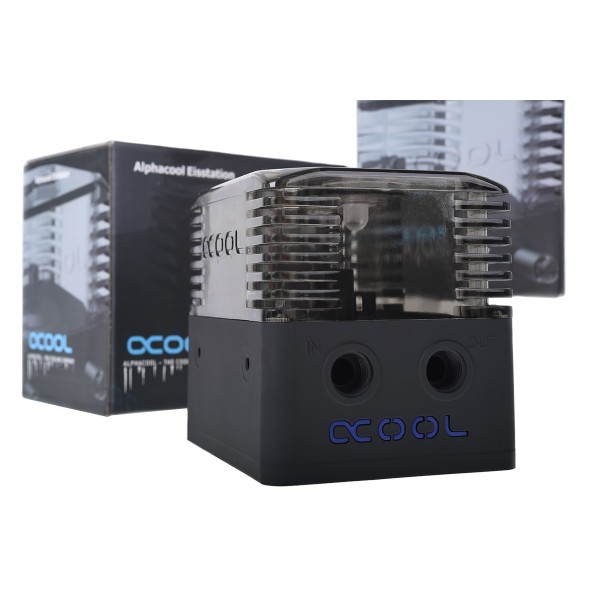

The Alphacool Eisstation DC Ultra - Solo Reservoir is a compact 250ml reservoir for a DC-LT pump, 102 x 82 x 85 mm in size, sold without the pump. Alphacool says it fits into nearly any case. The reservoir comes in three different versions, and a DDC, a D5, and a DC-LT version are available: this is the DC-LT one. With the pump in the box it is the Eisstation with the DC-LT 2600 Ultra pump.
Properties
- Pump
- DC-LT, not in the box
- Capacity
- 250ml
- Ports
- 3x G1/4, 1x G3/8
- Size (L x W x H)
- 102 x 82 x 85 mm
- Lighting
- illuminated logo (3 pin), 4 modules for 5mm LEDs
Highlights
Alphacool names four: a cap made of sturdy Nylon, three versions for all current pumps, numerous mounting options, and an illuminated logo with LED mounting options. You get a reservoir that Alphacool calls extremely compact, in versions suited for different pumps. Each pump is installed in the bottom of the Eisstation, where it is not visible from the outside. That bottom is a metal plate that reduces vibrations and increases the stability of the reservoir.
Mounting possibilities
Alphacool calls the installation options numerous and comprehensive. The reservoir can be screwed onto a 2.5" SSD bracket, and it can also be mounted in a drive bay. In either case the special decoupling screws included with the reservoir are used for mounting it. This minimizes the transfer of vibrations to the case, lowering the operating volume significantly. Another option is the included Velcro fastener: one part of the Velcro is glued to the bottom of the reservoir, while the other part is glued to the case. Then all that's left is to press the bottom against the corresponding Velcro on the case. Alphacool says the size of the Velcro ensures secure positioning even during transport. Depending on personal taste and available space, the reservoir can be mounted vertically or horizontally.
Connection possibilities
There are four possibilities for connection. An IN and an OUT with G1/4 threads are located on the top, next to the illuminated logo, and the logo's color can be changed with the optional modding kit. In the cap, one G1/4 and one G3/8 connection are available. With its larger size, the G3/8 connection simplifies filling and can also serve as a lighting module for 5mm LEDs. Two additional 5mm LED places are found in the bottom of the reservoir, and they illuminate the water-filled portion from below.
Materials
Alphacool counts the materials the reservoir is composed of as a highlight. The bottom portion has what Alphacool calls a high-quality soft-touch surface, which gives it an outstanding look and feel. Its upper portion and the reservoir itself are made not of simple, easily breakable Plexiglas but rather of extremely sturdy Nylon. Normal reservoirs made of glass or Plexiglas can break or crack due to falls, even from a small height, or due to improper handling. Alphacool says it is nearly impossible to damage the clear container of this one.
What the loop needs
A DC-LT pump is needed and is not in the box; the pump bracket and mounting screws are. IN and OUT take two G1/4 fittings. Fittings and LEDs are not in the box.
Technical data
| Dimensions (LxWxH) | 102 x 82 x 85 mm |
| Capacity | 250ml |
| Material | Nylon / PMMA |
| In / Out | G1/4 |
| Connection options | 3x G1/4 / 1x G3/8 |
| Power supply LED logo | 3 pin |
| Lighting modules | 4x for 5mm LED |
Notes
- Use only clear, transparent water cooling fluids. Alphacool warns that the particles and additives in pastel liquids can clog and permanently damage radiators, pumps, coolers and hoses, which can void the manufacturer's warranty.
In the box
- 1x Alphacool Eisstation DC-Ultra - Solo reservoir
- 1x Metal bottom
- Pump bracket
- Mounting screws
- 4x Decoupling screws
- Self-adhesive velcro
