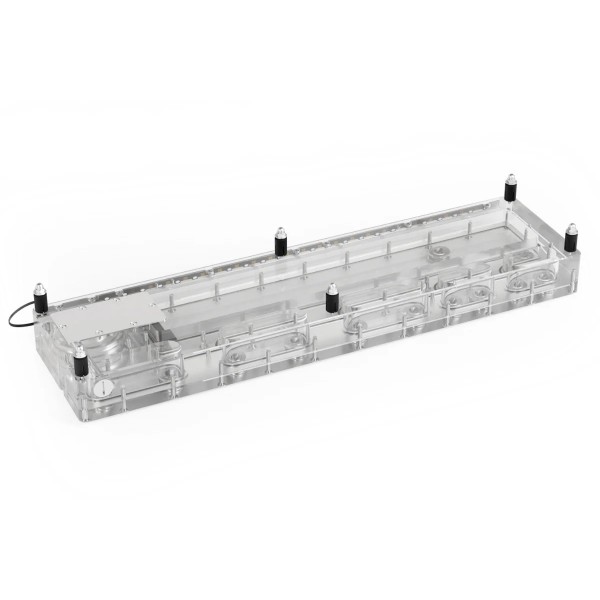

Alphacool Core Distro Plate 480 VPP/D5 - Left (13891)

The Alphacool Core Distro Plate 480 VPP/D5 - Left is a 480 mm acrylic distro plate with a volume of 565ml that takes a D5 or VPP pump, which is not in the box. The same plate with the VPP Apex pump is article 14578.

Properties

Pump

D5/VPP, not included

Capacity

565ml

Ports

12x G1/4, 1x drain port

Size (L x W x H)

480.00 x 125.00 x 42.00 mm

Material

Acrylic

Lighting

17 digital aRGB LEDs, 5V

Core Design

Alphacool calls its Core Distro Plate an absolute must-have for all custom water cooling systems. With its core design it is, in Alphacool's words, not only an absolute eye-catcher but also a functional masterpiece. Alphacool says it simplifies the construction and planning of complex water loops and offers uncomplicated installation.

The plate is made of what Alphacool calls high-quality acrylic and is fitted with chrome-plated G1/4 brass connections. These have been recessed and deliberately not screwed in, a choice meant to minimize the risk of cracks and leaks while increasing stability. The connections are each made of two parts and have an O-ring, and the two parts counter each other when mounted in the acrylic. Alphacool says this not only ensures absolute leak proofing of each connector but also allows for the clean and functional look of its Core Design series.

Connections and lighting

The plate has twelve G1/4 inner threads and one drain port. Their arrangement is designed to optimize tube routing and, as Alphacool puts it, also to provide an attractive appearance. This is complemented by its integrated aRGB lighting with 17 digital LEDs, which Alphacool says provides impressive visual effects. The lighting can be controlled either via a digital aRGB header on the mainboard or optionally via the Alphacool Aurora Eiscontrol aRGB controller (article no.: 15360).

Push mounting

The Alphacool Core Push Mounting Kit is included in the scope of delivery, and Alphacool says it significantly simplifies the installation of the Distro Plate. The metal pins are attached to a radiator or the panel of the PC case and the matching female sleeves to the distro plate, so that you only have to push them onto the pins. According to Alphacool this system ensures a secure fit of the plate and enables easy disassembly for maintenance or extensions. A detailed description can be found in the enclosed instructions. On a radiator, the manual says to use the screws with the appropriate thread for your radiator.

What the loop needs

The plate needs a pump before it can run: Alphacool lists it as compatible with VPP/D5 pumps, such as its own VPP Apex pump or another of the D5 pumps. The manual's steps are to insert the O-ring, set the pump on it and tighten the four M4x22 pump screws with 1.5Nm. The screws and an Allen key are in the box, while the manual lists the O-ring only with the pre-assembled version. Ports you do not use take the five G1/4 plugs in the box, and a plug tool is included for them. The manual marks the ports: OUT leads from the plate to the component, IN comes back from the component. For the graphics card it says to choose the port closest to your GPU configuration.

Technical data

Notes

• Alphacool's note on application: please use the plate only in conjunction with clear, transparent water cooling fluids. The particles and additives in pastel liquids can clog and permanently damage water cooling products such as radiators, pumps, coolers and hoses. This can result in voiding the manufacturer's warranty as well.

In the box

• 1x Distro Plate 480
• 1x Allen Key
• 4x M4x22 Pump Screw
• 1x Core Push Mount Set
• 1x Plug tool
• 1x ARGB adapter
• 5x G1/4 Plug

Alphacool's manual and data sheet are both PDFs.
