Details

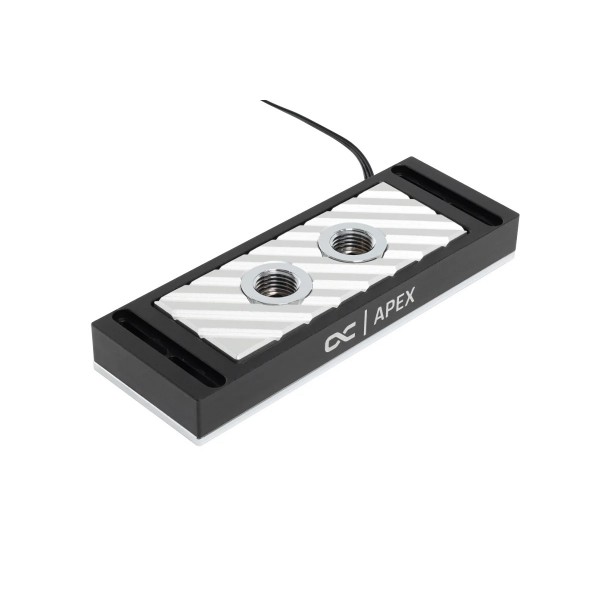

The Alphacool Apex RAM X4 Water Cooler - Silver is a RAM water block with two G1/4 threads, and up to four RAM slots can be covered by this X4 cooler. Note: additional Alphacool D-RAM modules are required for the RAM on which the block is mounted, and the box does not hold them.
Properties
- Fits
- Up to four RAM slots, on Alphacool D-RAM modules
- Ports
- 2 x G1/4
- Cooler base
- Nickel-plated copper, 3 mm thick
- Cooler top
- Aluminum, black / silver
- Size (L x W x H)
- 127.50 x 45.00 x 17.30 mm
- Lighting
- 5 digital aRGB LEDs, 3-Pin 5V
High-quality RAM cooler
RAM is becoming more and more powerful, so Alphacool calls it advisable to reliably dissipate the resulting waste heat with water. Its reasoning: modern hardware produces more and more of that heat, which makes powerful and reliable cooling essential. The 3 mm thick cooler base of nickel-plated copper is what Alphacool says offers precisely these features. The block is optimized specifically for the latest RAM generation. In combination with the D-RAM modules, Alphacool claims maximum cooling performance for your memory.
Installation
Alphacool describes the installation as straightforward. Per the manual, the RAM modules stand in an upright position and each gets a thermal pad. The pads sit a little distance from the mounting holes, so the holes stay free on both sides. The cooler then goes on top and is fastened with the M3x18mm screws and the Allen key.
Apex Design
Apex is the product line that, according to Alphacool, represents the highest level of perfection. It says first-class materials and innovative technologies guarantee a unique premium product. The design language harmonizes perfectly with other Apex products, creating what Alphacool calls an impressive overall picture. The Apex optics and the lighting ensure a stylish appearance.
Digital aRGB lighting
A total of five aRGB LEDs provide lighting that Alphacool describes as discreet but impressive. Each LED is individually controllable via a corresponding controller or via the mainboard, which opens up many creative possibilities. The ARGB adapter from the box makes that connection.
What the loop needs
Two ports mean two G1/4 compression fittings, which you pick by tube size in our fittings section.
Technical data
| Dimensions (L x W x H) | 127.50 x 45.00 x 17.30 mm |
| Material cooler top | Aluminum |
| Material water-bearing components | PMMA (plastic) |
| Material cooler base | Nickel-plated copper |
| Threads | 2 x G1/4 |
| Power supply Digital aRGB | 3-Pin 5V |
| Quantity digital aRGB LEDs | 5 |
| Pressure tested | 8 bar |
| Max working temperature | 60 °C |
| Weight | 270 g |
| Color | black / silver |
Notes
- Alphacool's note on application: use the block only with clear, transparent water cooling fluids. It warns that the particles and additives in pastel liquids can clog and permanently damage radiators, pumps, coolers and hoses, which can also void the manufacturer's warranty.
In the box
- 1x Apex RAM X4 Water Cooler
- 4x 105x7x0.5mm Pad
- 8x M3x18mm Screw
- 1x Allen Key
- 1x ARGB Adapter
Alphacool's manual and data sheet are both PDFs.
