Details

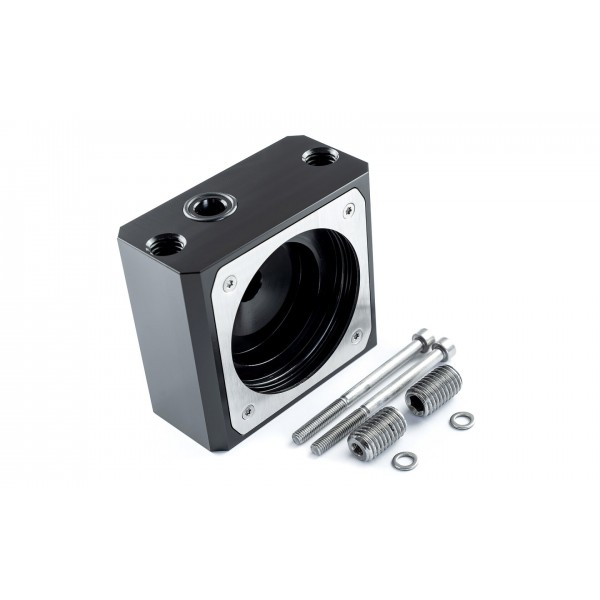

A pump expansion module that adds one more D5 pump (Laing / Lowara / Xylem D5) to a MO-RA IV Tank D5 or a HEATKILLER TANK, 75 x 84 x 40 mm, in acetal. With the Watercool MO-RA IV Tank D5 Expansion (26055), a MO-RA IV 400 runs two D5 pumps in series and a MO-RA IV 600 up to three.
Properties
- For
- MO-RA IV TANK and HEATKILLER TANK
- Pump
- One Laing / Lowara / Xylem D5, not included
- Size
- 75 x 84 x 40 mm (without connections, without pump)
- Material
- Acetal
A link between tank and pump
The Tank Expansion serves as a link to expand a MO-RA IV TANK D5. In combination with a MO-RA IV 400, two D5 pumps can be easily connected in series, and with a MO-RA IV 600 up to three. Theoretically, Watercool says, the Tank Expansion can be scaled endlessly. It calls it a very flexible product that integrates stylishly into the MO-RA IV system. It also fits the HEATKILLER Tank 200 D5.
What you need to mount it
Each module carries one D5 pump, which is not part of the scope of delivery. The expansion is first screwed to the tank with the shorter M5x65 screws and washers. Then the M12 to M5 adapter goes into the same hole and provides the M5 thread for the following module. The final D5 lower section takes the longer M5x80 screws and washers. Loosen the stainless steel brackets, guide the pumps through them and screw both back together evenly and crosswise.
Technical data
| Dimensions (LxWxH) | 75 x 84 x 40 mm (without connections, without pump) |
| Weight | 0.3 kg |
| Material | Acetal |
| Compatible | MO-RA IV TANK and HEATKILLER TANK |
Notes
- The O-rings must be seated correctly between all modules.
- Watercool recommends demineralized or deionized (distilled) water with a suitable corrosion inhibitor, or Heatkiller Fluid as a ready-mixed coolant.
In the box
- 1x MO-RA IV Tank D5 Expansion
- 1x mounting material
Watercool's assembly instructions show the tank with one and with several D5 pumps, including the expansion modules.
