Details

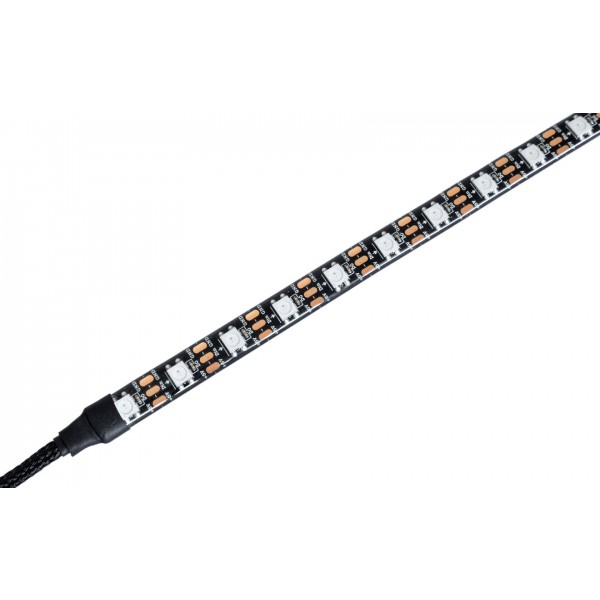

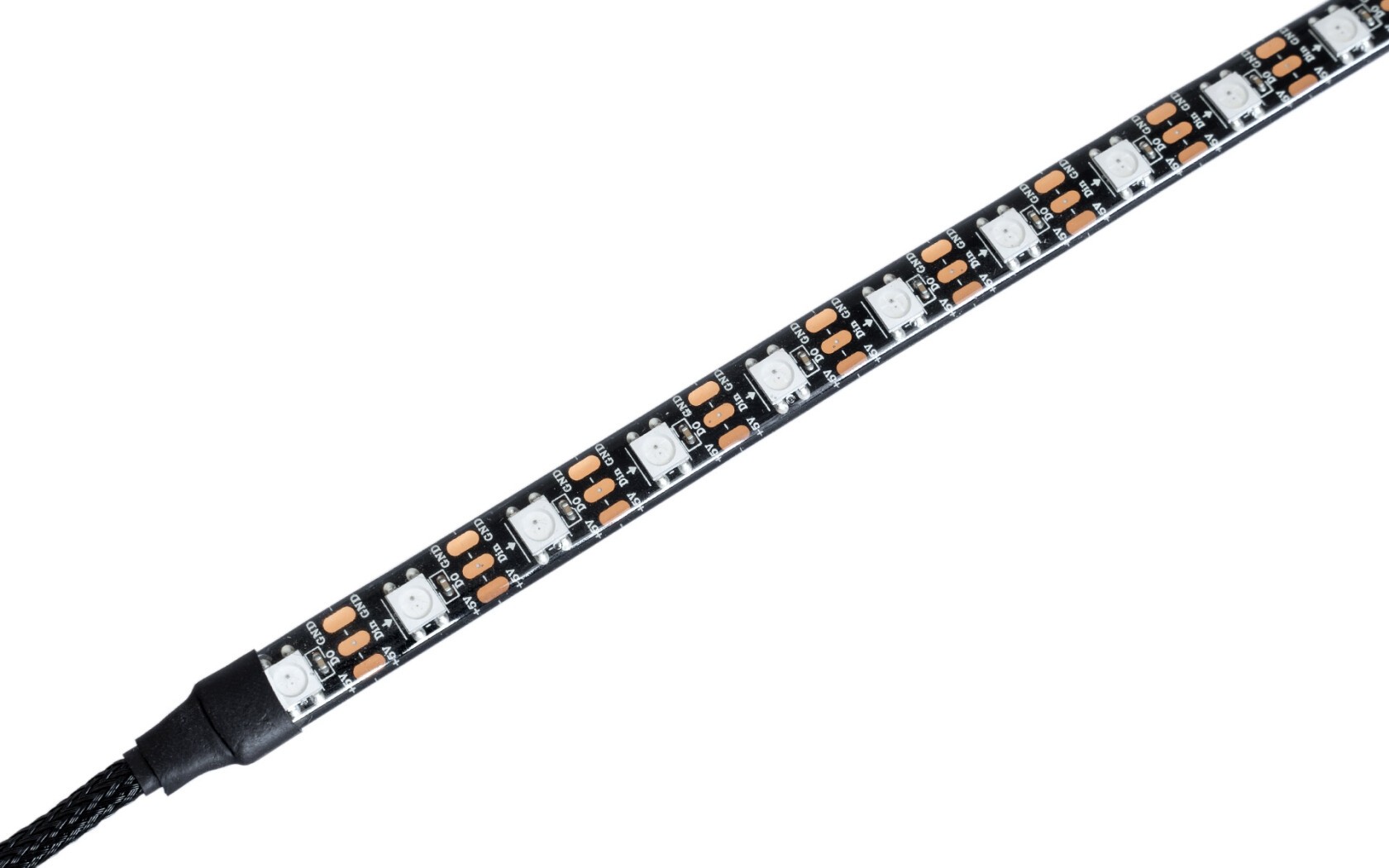

An aRGB LED strip for the MO-RA IV 400 radiator, attached to the lower part of the housing to create an indirect lighting effect. The Watercool MO-RA IV 400 Ambient Light aRGB (26440) runs on +5 V through a 3-pin connector, and a MO-RA IV Active or Passive Control is required to use it.
Properties
- Compatible
- MO-RA IV 400
- Operating voltage
- +5 V
- Connector
- 3-pin (5VDG, 5V)
- Needs
- MO-RA IV Active or Passive Control
Light from underneath
The Ambient Light allows you to customize the MO-RA IV. A high-quality LED strip sits under the radiator, held by its adhesive tape, so it lights the surface below instead of shining at you. Watercool says this not only looks first-class but also enhances the radiator.
The strip is supported by all common motherboard manufacturers. That means Watercool's aRGB solution can be easily integrated into any lighting concept you already run.
Mounting
Remove the feet first. Push the cable of the LED strip from the outside through the hole in the lower part of the housing, then lead it out at the back to the Active Control or Passive Control. Peel the protective film off the double-sided adhesive tape on the strip. Stick it to the bottom part of the housing as centrally as possible, and refit the feet.
Options
Watercool's technical data name the MO-RA IV 400 as the compatible radiator; the MO-RA IV 200 has its own Ambient Light aRGB (26240). For the front of the same radiator there is the MO-RA IV 400 Front Logo aRGB (26441). More parts are in our MO-RA IV Accessories category.
In the box
The scope of delivery is the strip alone.
- 1x MO-RA IV Ambient Light aRGB
Watercool's assembly instructions cover the MO-RA IV series, with a page on the ambient LED and the dimensions of each size.
