Details

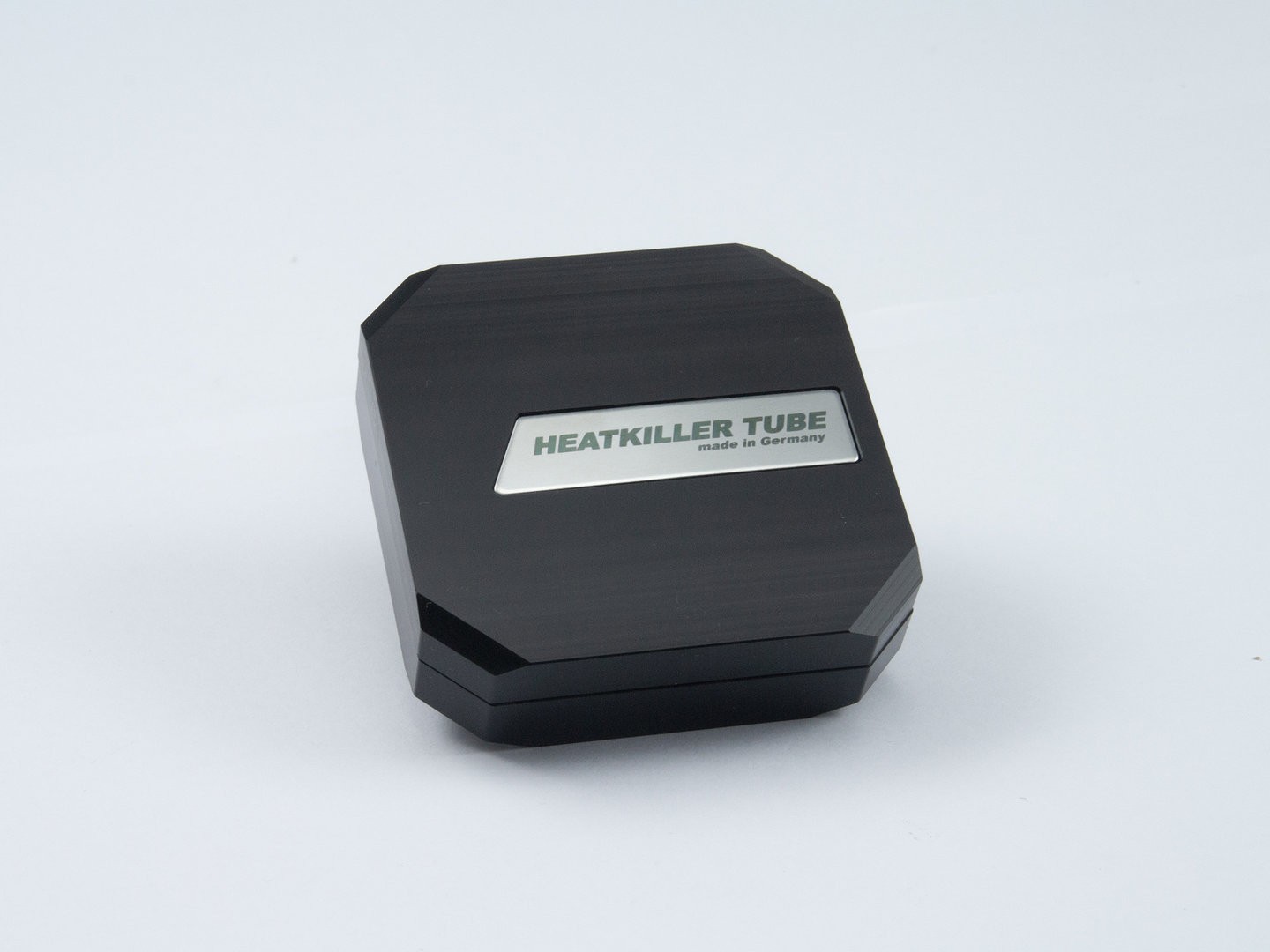

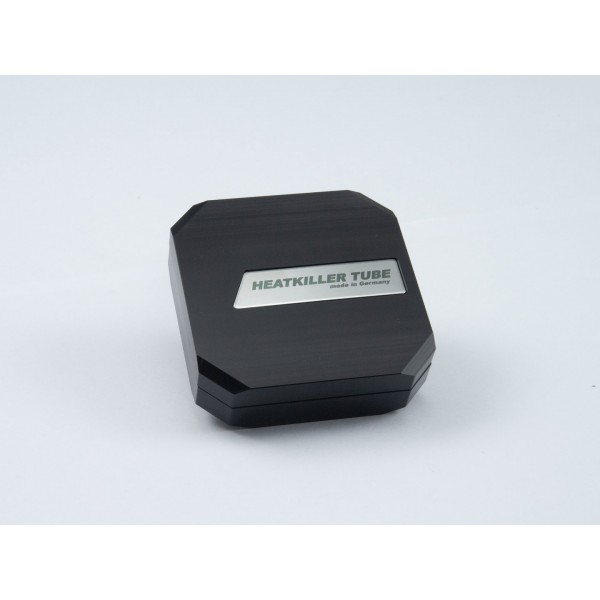

A conversion kit that changes a HEATKILLER® Tube series reservoir from the Multiport top option to the standard wide-mouth top. The Watercool HEATKILLER® Tube - Spare Parts - Standard Top (30262) is made of acetal (POM) and is compatible with all reservoirs of the series.
Properties
- For
- All HEATKILLER Tube series reservoirs
- Top
- Standard, wide-mouth fill opening
- Material
- Acetal (POM)
From Multiport to a wide mouth

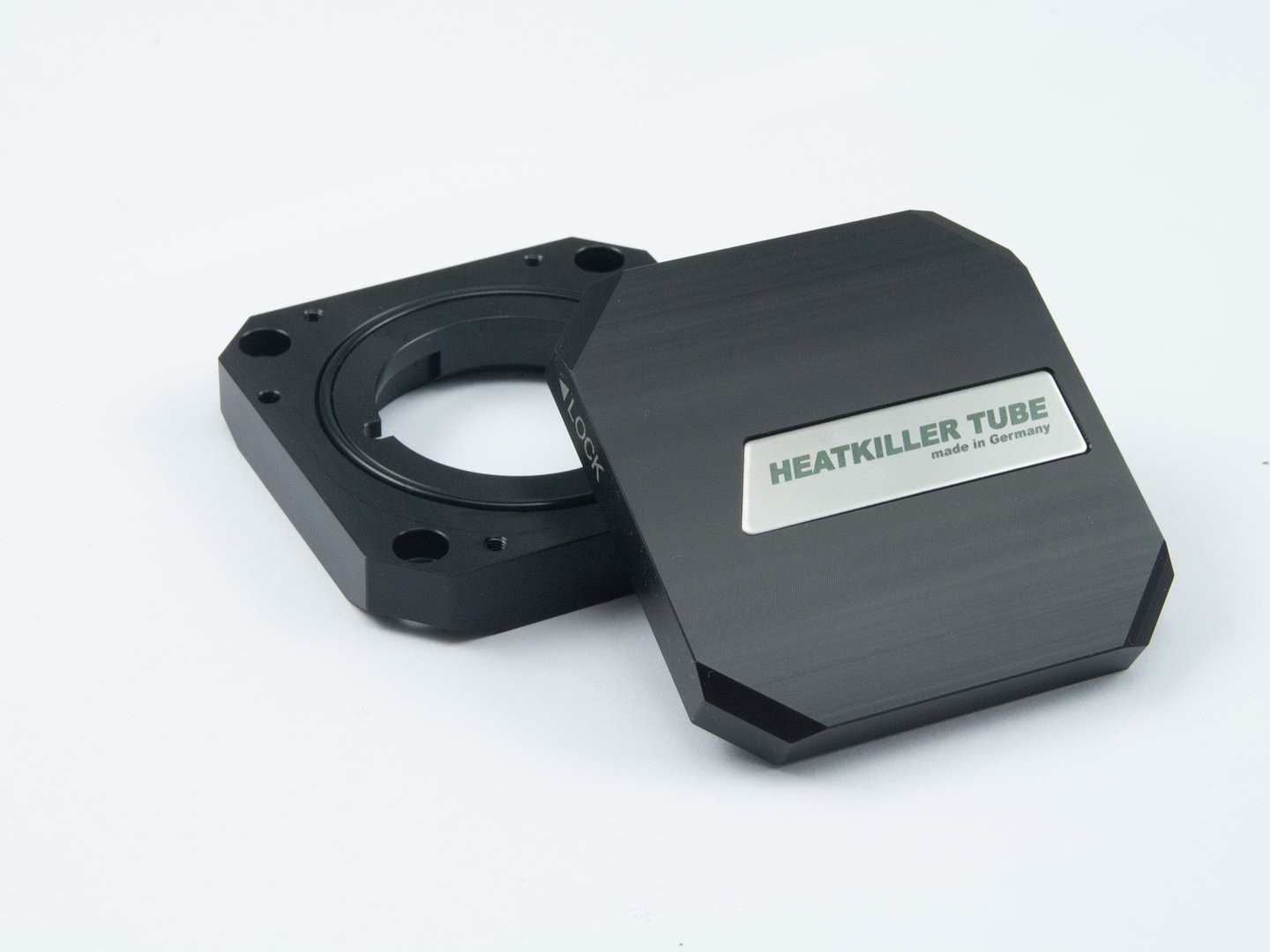

The standard top has one large filling mouth under a lid that opens with a quarter turn counterclockwise. With this kit you can switch your reservoir over to it, for example a HEATKILLER Tube 100 MP. All required mounting material is part of the scope of delivery.
Fitting it
The Tube series is completely modular, so each part can be exchanged separately. Open the lid of the old top, remove the four M4x12 screws that become visible and take the top off. Then mount the new one the same way in reverse, with the O-rings of the glass tube seated correctly. The lid seal is also sold on its own as the O-Ring for Standard Top.
Notes
- Drain the reservoir and take it out of the loop before any change to it.
- Check all seals before the first start-up. If an O-ring is squeezed or damaged, the reservoir must not be used.
In the box
- 1x HEATKILLER® Tube - Spare Parts - Standard Top and Mounting material
Watercool's assembly instructions cover the whole HEATKILLER Tube series, with opening the lid and removing the top.
