Details

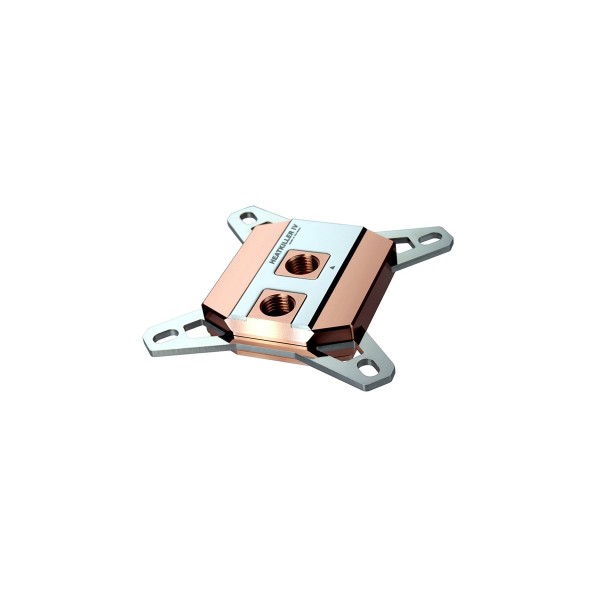

A CPU water block for Intel LGA 1150, 1151, 1155, 1156, 1200, 1700 and 1851 made from full copper: a copper top on a copper base. The Watercool HEATKILLER® IV PRO (Intel LGA 1X00) PURE COPPER mounts with Watercool's tool-less Easy-Mount system and takes fittings up to 19 mm wide.
Properties
- Sockets
- Intel LGA 1150, 1151, 1155, 1156, 1200, 1700, 1851
- Top
- Copper
- Base
- Copper
- Ports
- 2x G1/4, 25 mm apart
- Size
- 66 x 59 x 17 mm
The HEATKILLER IV series
Watercool calls its HEATKILLER® series CPU water blocks some of the best performing and most popular CPU blocks on the market. The series dates from its introduction in 2001, and Watercool has continuously enhanced and improved it since. In its words the HEATKILLER® IV is the most comprehensive and recent iteration of the franchise. What sets the IV apart from the block before it:
- Cooling performance up to 3 °C better compared to its predecessor
- A better flow rate and less clogging, thanks to a bigger jet plate nozzle and channel layout
- The tool-less Easy-Mount-System
- Room for extra large fittings, compatible thanks to a 25 mm port distance
New cooling engine and optimized flow paths
Through all its developments, the cooling engine took the biggest evolutionary step. Watercool gave the cold plate significantly thinner fins, which results in a larger surface and better heat dissipation, and it made sure at the same time that the flow rate isn't impacted by this. The separate jet plate design was dropped, with its mechanics integrated directly into the top. Watercool says this new technology improves performance, flow rate and reliability.
Easy-Mount and manufacturing
Watercool developed what it calls the revolutionary Easy-Mount system to simplify the installation process. After the first installation, the block can be installed and uninstalled completely tool-less. The system also provides a fixed stop of the installation bolts, so a faulty installation is almost impossible with it. The contact pressure follows the CPU maker's specifications; tighten the studs and knurled nuts evenly and crosswise with the included mounting material.
But the design should also be worthy of a WATERCOOL product: Watercool says only the highest quality raw materials combined with the most cutting edge, premium manufacturing technologies make a true HEATKILLER IV. As a final touch on the design it took care of customers' requests, making the block compatible with fittings of up to 19 mm width.
All HEATKILLER components are manufactured on Watercool's own CNC machines at the WATERCOOL headquarters in Waren, Germany. Many steps of the process are manual labor, and each product is finished under the dual control principle, which Watercool calls truly "Made in Germany".
What an LGA1700 build needs
For mounting on the socket LGA1700 Watercool writes "we strongly recommend one of the available backplates", because of the socket problems (bending). The two are the HEATKILLER IV Backplate INTEL 1700 (10014) and the HEATKILLER LGA1700 HEAVY Backplate (10016). The same block with its top and base nickel plated is the HEATKILLER IV PRO (Intel LGA 1X00) COPPER Ni, and other blocks for these sockets are in our Intel CPU blocks category.
Specifications
| Material | Copper (top, bottom plate), polished stainless steel (brackets, inlay), stainless steel (Easy-Mount-System) |
| Dimensions (L x W x H) | 66 x 59 x 17 mm |
| Sealing | NBR 70 |
| Threads | 2x G1/4 inch (DIN ISO 228-1) |
| Thread distance | 25 mm |
| Temperature resistant to | 95 °C (PRO) |
| Socket compatibility INTEL | 1150, 1151, 1155, 1156, 1200, 1700 and 1851 |
Notes
- Watercool's manual has a page on the orientation of the block on the CPU; read it before you mount.
- A metal washer belongs between spring and mounting bracket on every socket, and a plastic washer between stud and mainboard.
In the box
- HEATKILLER® IV PRO (INTEL processor) PURE COPPER
- Mounting material / Manual
Watercool's assembly instructions cover every HEATKILLER IV CPU block, with the installation on each Intel socket with and without a backplate.
