Details

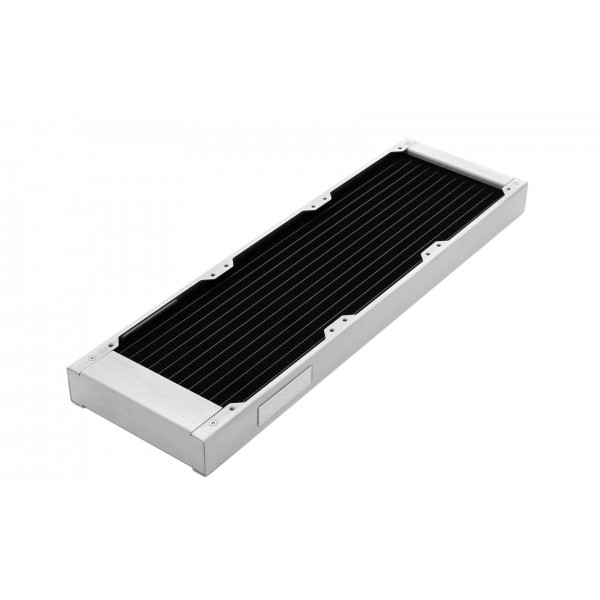

A slim 360 mm radiator for three 120 mm fans, 30 mm thick, with brushed stainless steel side panels. The Watercool HEATKILLER RAD 360-S Stainless Steel is a mesh radiator with a brass pre-chamber and brass cooling channels, copper fins and two G1/4 ports.
Properties
- Fans
- 3x 120 mm, M3 screws
- Size
- 398 x 120 x 30 mm
- Thickness
- 30 mm (S series)
- Ports
- 2x G1/4
- Material
- Brass pre-chamber and channels, copper fins
- Weight
- 0.92 kg
Finishing and quality control in Germany
Watercool says that, in cooperation with a well-known manufacturer from Asia, it has succeeded in creating a high-performance mesh radiator with a unique look. The cooling cores are manufactured by that partner strictly in accordance with Watercool's specifications. The radiator housing is produced directly on Watercool's premises in Waren, which means the assembly and quality control are ultimately performed in Germany.
High cooling performance over the entire speed range
The goal of the development was to produce competitive radiators with a wide performance range. Accordingly, Watercool says the HEATKILLER RAD provides a very good cooling performance with slow rotating fans, and that it scales very well with increasing speed. For maximum cooling performance you can of course also run it in push/pull mode, with fans on both sides.
The best raw materials in use
Watercool uses only high quality raw materials as the basis for the HEATKILLER RAD. Both the pre-chamber and the cooling channels are made of brass, and the cooling fins are made of copper. The side panels are laser-cut from 1 mm thick steel plates or stainless steel, and subsequently brushed or powder-coated in black or white, depending on the finish; this model keeps the brushed stainless steel. The front sides, also brushed stainless steel, significantly contribute to the exclusive look.
Easy integration into the cooling circuit
Integration into the cooling circuit is done with two standard G1/4 inch threads. The required connections are not included in the scope of delivery, so plan on two fittings that suit your tube. The small width of only 120 mm ensures you have a maximum of flexibility in where it can go, and it takes standard 120 mm fans. For a shorter spot, the same slim build comes as the HEATKILLER RAD 240-S Black.
Technical data
| Dimensions | 398 x 120 x 30 mm |
| Weight | 0.92 kg |
| Color | Brushed Stainless Steel |
| Connectors | 2 x G1/4 thread |
| Fan compatibility | 120 mm fans |
| Radiator mounting | M3 |
Notes
- Screws used for the fans may not reach deeper than 5 mm into the radiator; longer screws might damage the pipes. The mounting material Watercool shows is M3x30 and M3x5 screws, 4 per fan.
- The side panels can be removed for maintenance.
- As coolant, Watercool recommends demineralized or deionized (distilled) water with a suitable corrosion inhibitor.
In the box
- 1x HEATKILLER RAD 360-S STAINLESS STEEL
Watercool's assembly instructions cover the whole HEATKILLER RAD series, with the dimensions of every size and how to remove a side panel.
