Finishing and quality control in Germany

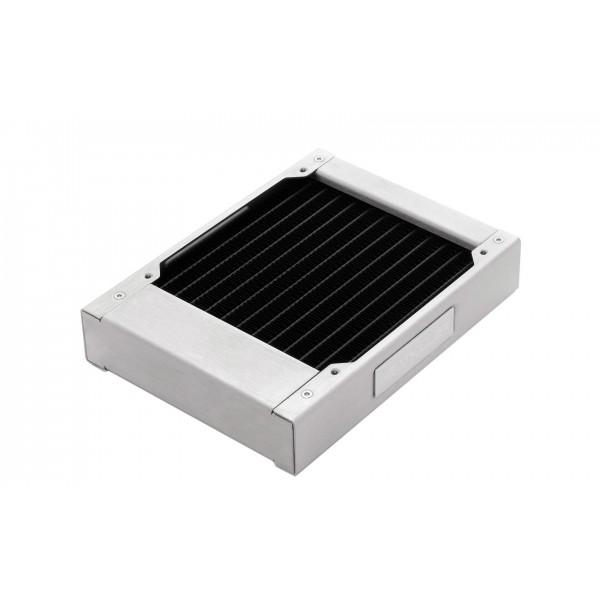

In cooperation with a well-known manufacturer from Asia, we have succeeded in creating a high-performance mesh radiator with a unique look. The cooling cores are manufactured strictly in accordance with our specifications. The radiator housing is produced directly on our premises in Waren, which means that the assembly and quality control are ultimately performed in Germany.

High cooling performance over the entire speed range

The goal of the development was to produce competitive radiators with a wide performance range. Accordingly, the HEATKILLER RAD provides a very good cooling performance with slow rotating fans, which scales very well with increasing speed.
For maximum cooling performance, the HEATKILLER RAD can of course also be used in push/pull mode.

The best raw materials in use

Only high quality raw materials are used as basis for the HEATKILLER RAD. The pre-chamber and the cooling channels are made of brass and the cooling fins are made of Copper. The side panels are laser-cut from 1mm thick steel plates or stainless steel and subsequently brushed or powder-coated in black or white, depending on the finish.The front sides are made of brushed stainless steel and significantly contribute to the exclusive look of our HEATKILLER RAD.

Easy integration into the cooling circuit

The integration into the cooling circuit is done with two standard G1/4 inch threads. The required connections are not included in the scope of delivery. The small width of only 120mm ensures a maximum of flexibility.

Technical data:

Dimensions: 158 x 120 x 30mm
Weight: 0,54Kg
Color: Brushed Stainless Steel
Connectors: 2 x G¼" thread
Fan compatibility: 120mm fans
Radiator mounting: M3
