USB 3.0 20-Pin Internal Header MF Extension Cable (Low Profile Connector) (CAB027)

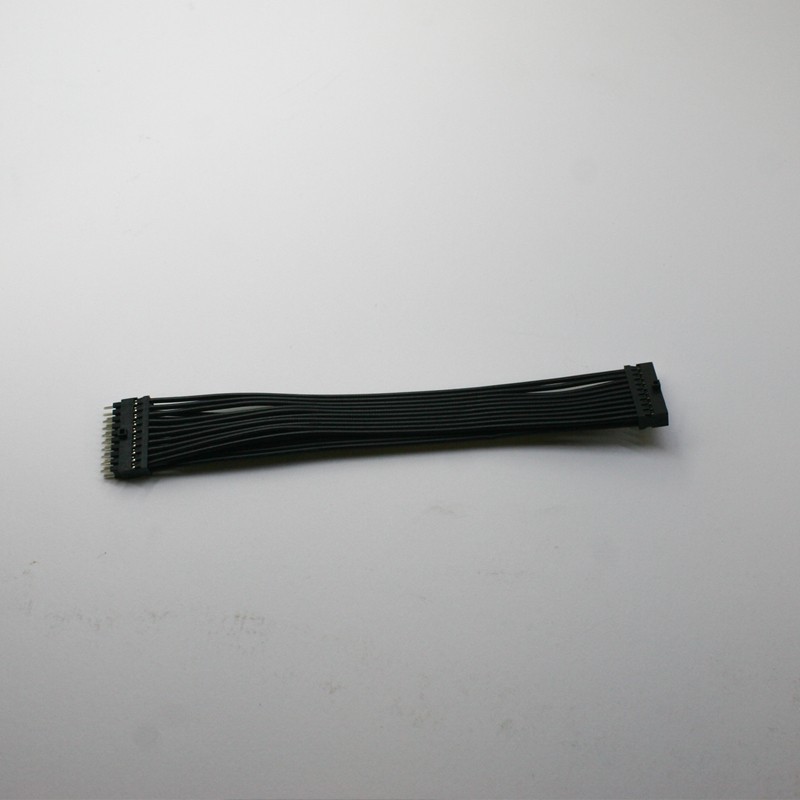

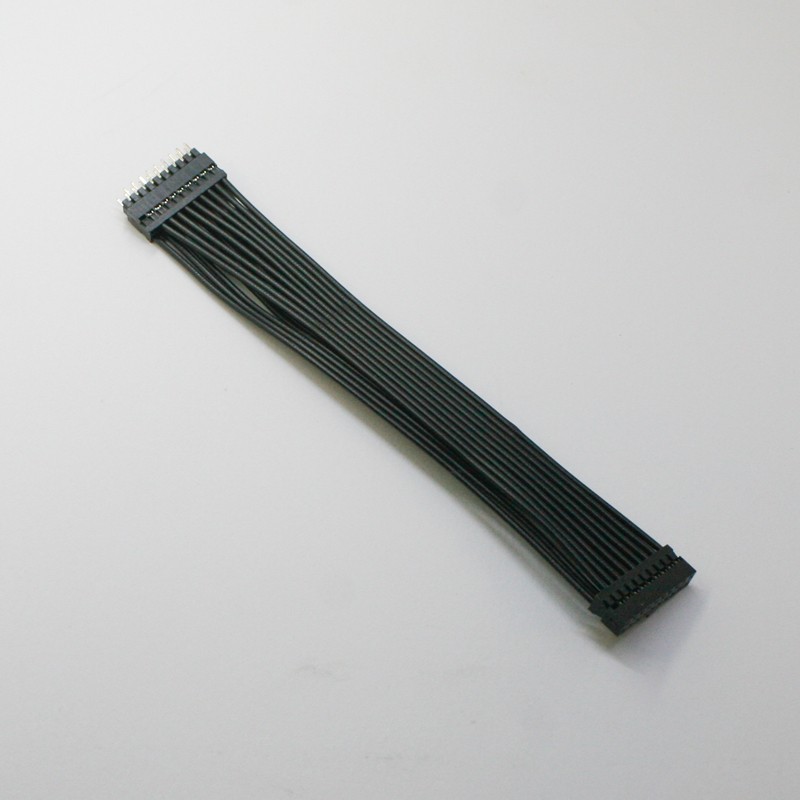

This 12 cm extension carries a USB 3.0 20-pin header connection on slim low profile connectors at both ends. One end is a low profile 20-pin male connector and the other a low profile 20-pin female connector, so you can extend a header, or a cable that already has a low profile plug, without bulky standard USB 3.0 plugs.

Properties

Type

Internal USB 3.0 extension cable

Connectors

USB 3.0 20-pin male to 20-pin female, low profile, angled

Length

12 cm

Cable

Flat, individual black wires

Pieces in the pack

1

Low profile at both ends

Both connectors are the small angled low profile type, so the extension stays slim where a standard USB 3.0 plug would be tall and stiff, for example next to a graphics card or under water cooling tubes near the bottom edge of the board.

Male to female

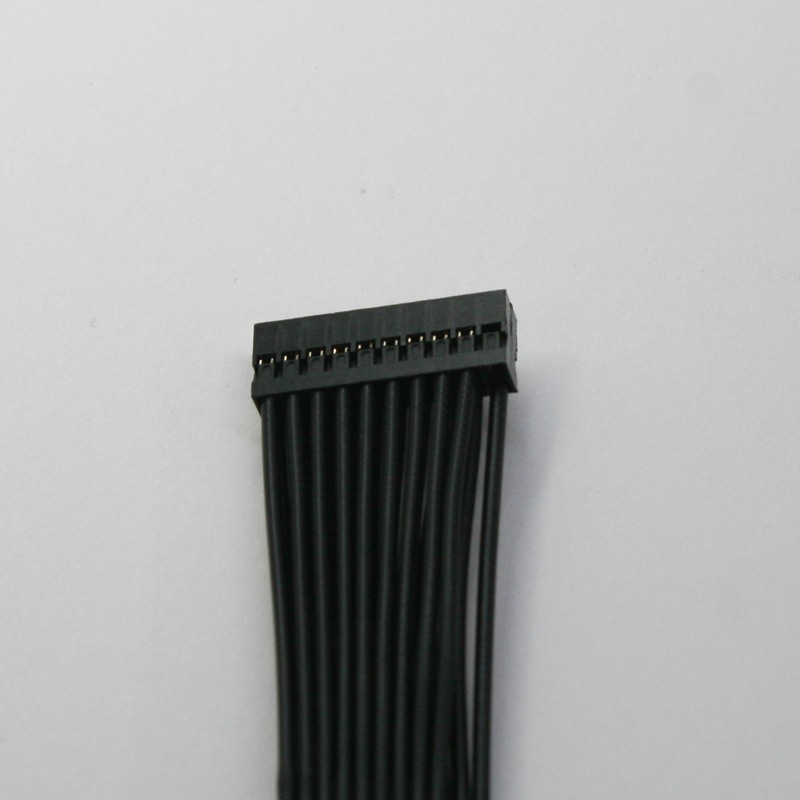

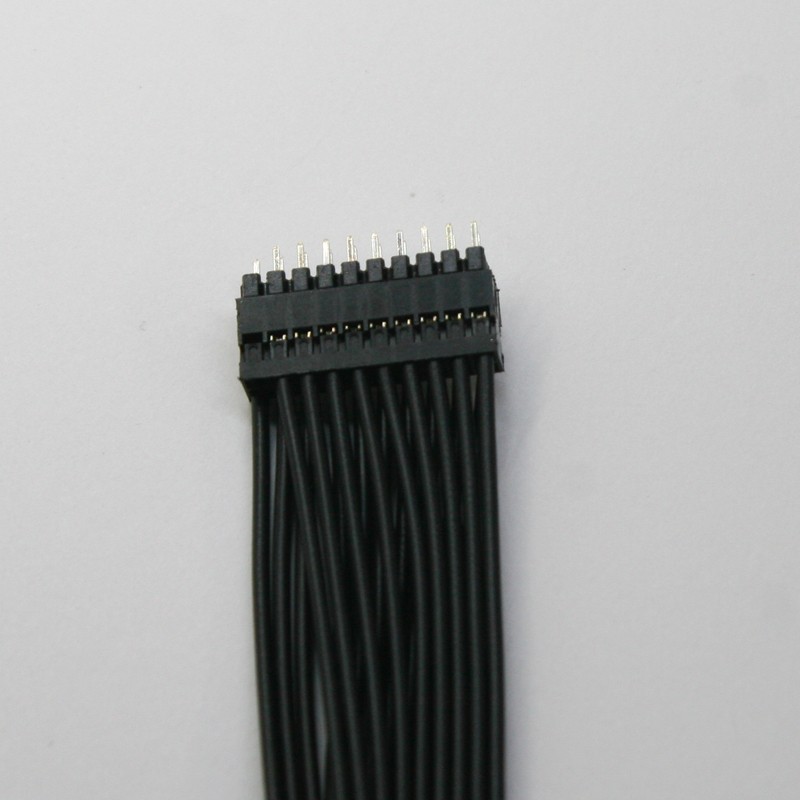

Plug the female end onto the USB 3.0 header of the motherboard and connect your cable to the male end. The flat cable of individual black wires bends easily and is easy to hide.

Technical data

Notes

• For an adapter from the low profile header connector to a standard 19-pin male connector for a case front panel plug, see MOD-0089.

In the box

• 1x USB 3.0 20-Pin Internal Header MF Extension Cable (Low Profile Connector)
