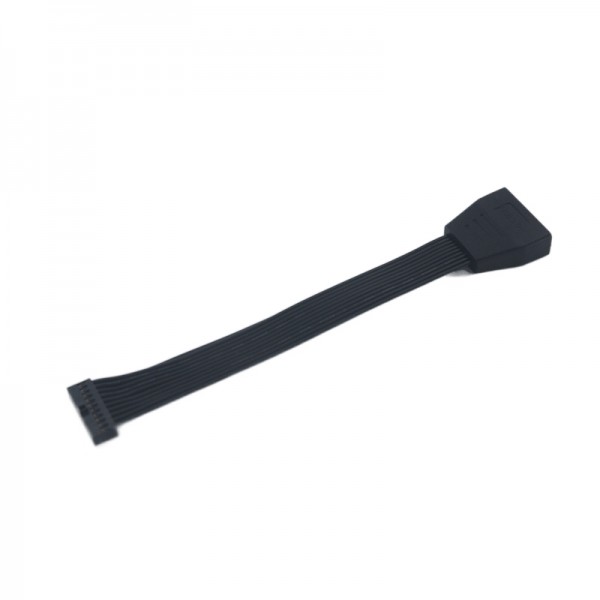

USB 3.0 20-Pin Internal Header Adapter Cable (Low Profile Connector) (CAB024)

This 12 cm adapter puts a slim low profile connector on the USB 3.0 header of your motherboard. The low profile 20-pin female connector plugs onto the header and the cable leaves it at 90°, so it sits flat and low, even under a long graphics card. At the other end a standard size shrouded 19-pin male connector, marked USB3.0, takes the bulky USB 3.0 plug of your case front panel cable.

Properties

Type

Internal USB 3.0 adapter cable

Motherboard end

USB 3.0 20-pin female, low profile, angled

Other end

USB 3.0 19-pin male, standard size

Length

12 cm

Cable

Flat, individual black wires

Pieces in the pack

1

Room at the USB 3.0 header

Standard USB 3.0 plugs are tall and stiff and often collide with graphics cards, heatsinks or the water cooling tubes running near the bottom edge of the board. The angled low profile connector of this adapter is small and sits low on the header, and the flat cable runs away to the side.

Keeps your front panel cable

The front panel cable of the case does not need to be changed: plug it onto the standard 19-pin male end of the adapter as you would onto the motherboard header.

Technical data

Notes

• The low profile adapter is also available as a male to female extension with low profile connectors on both ends (MOD-0094).

In the box

• 1x USB 3.0 20-Pin Internal Header Adapter Cable (Low Profile Connector)
