Details

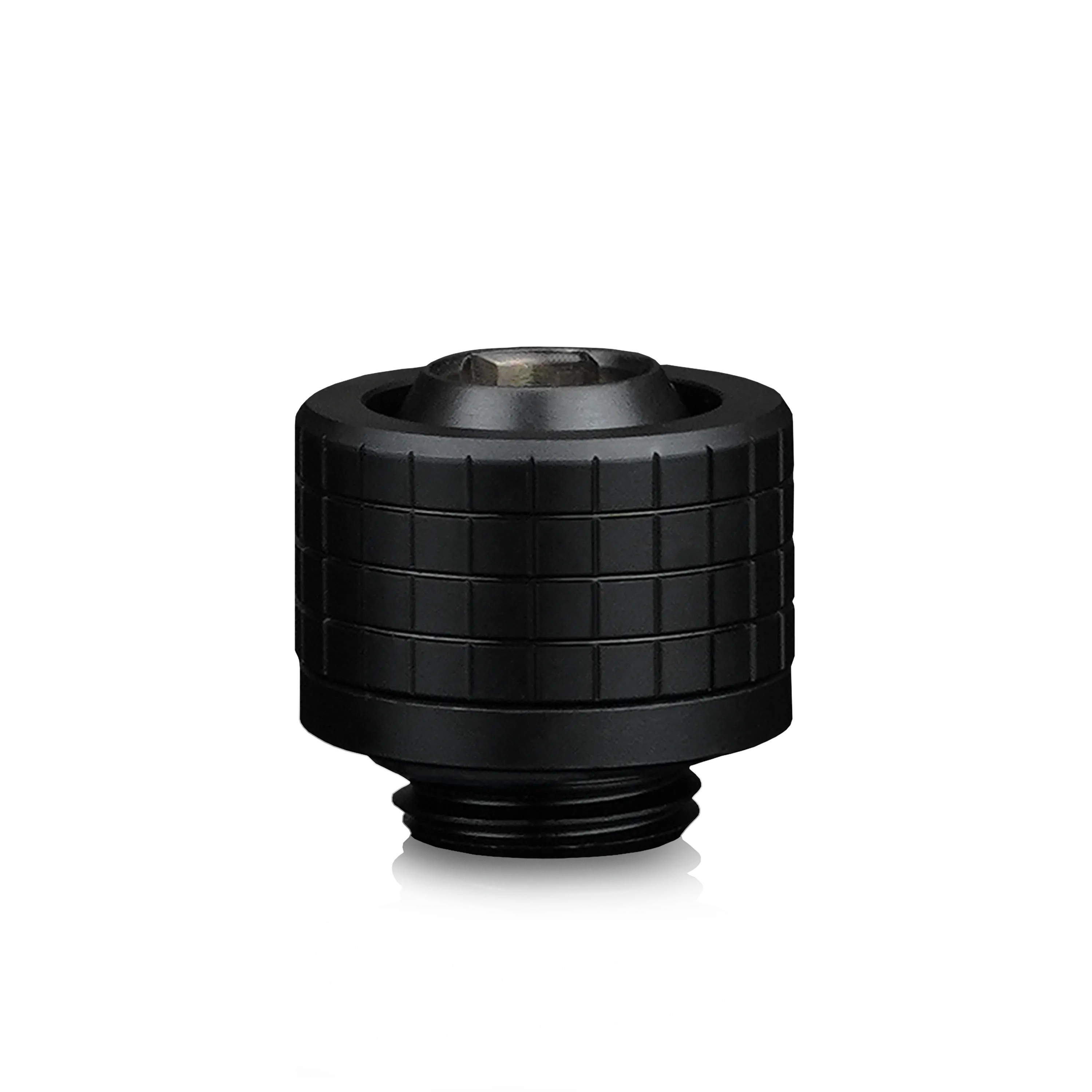

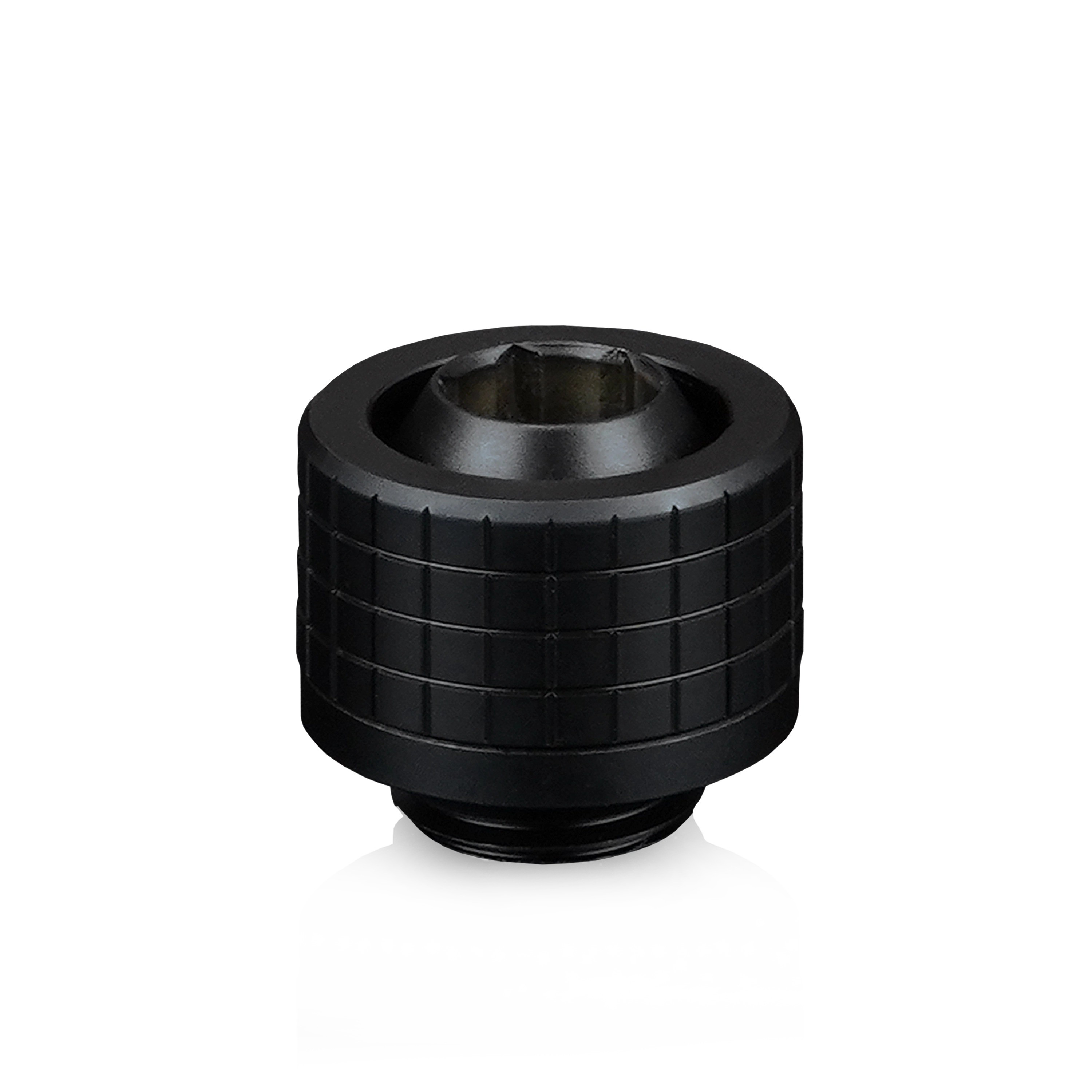

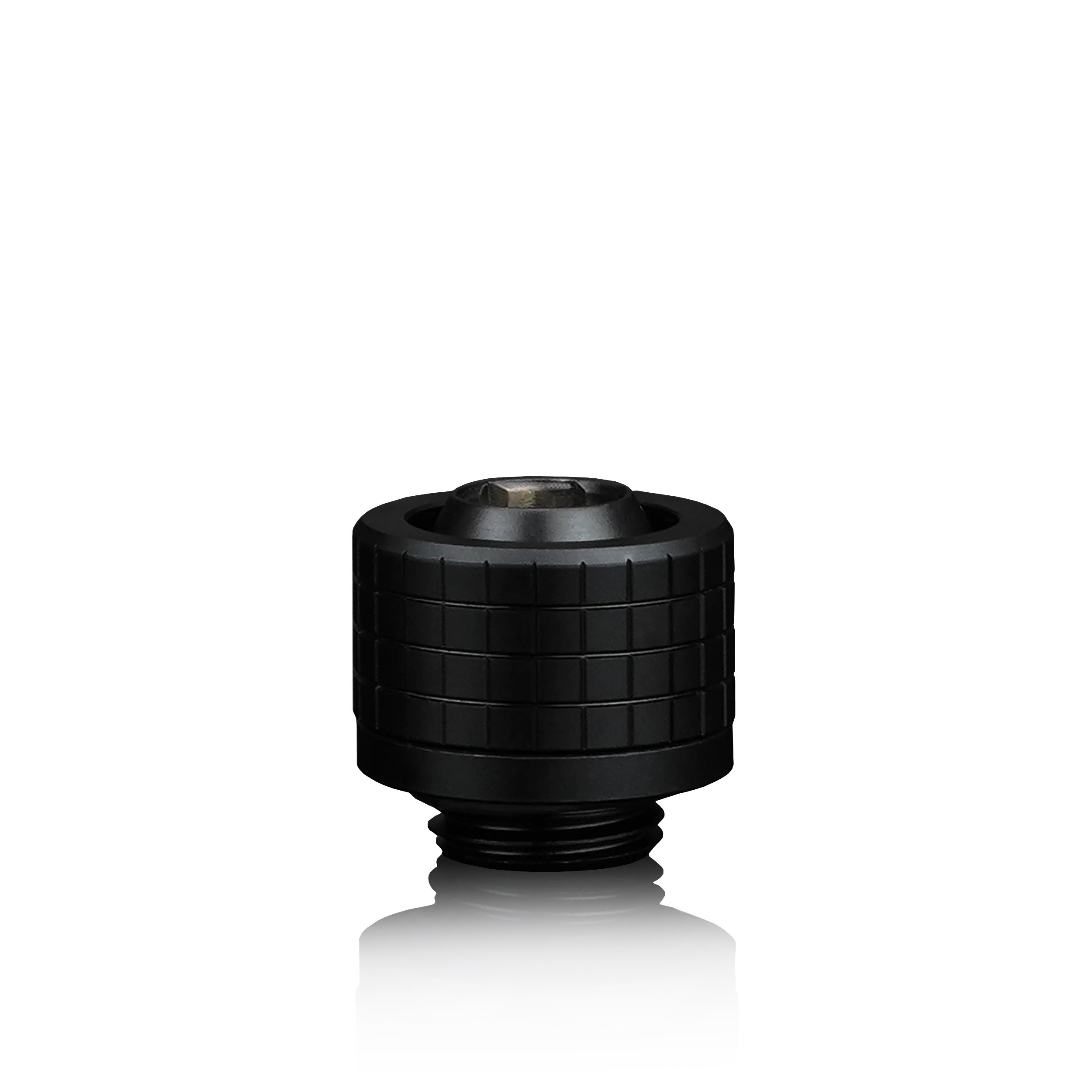

Thermal Grizzly's DeltaMate 13/10mm SoftTube Compression Fitting ST13 in Black is a G1/4" compression fitting for soft tubes with a 10/13 mm diameter. It also comes in matt nickel and as a 6 pack, and for 16/10 mm soft tubing there is the ST16.

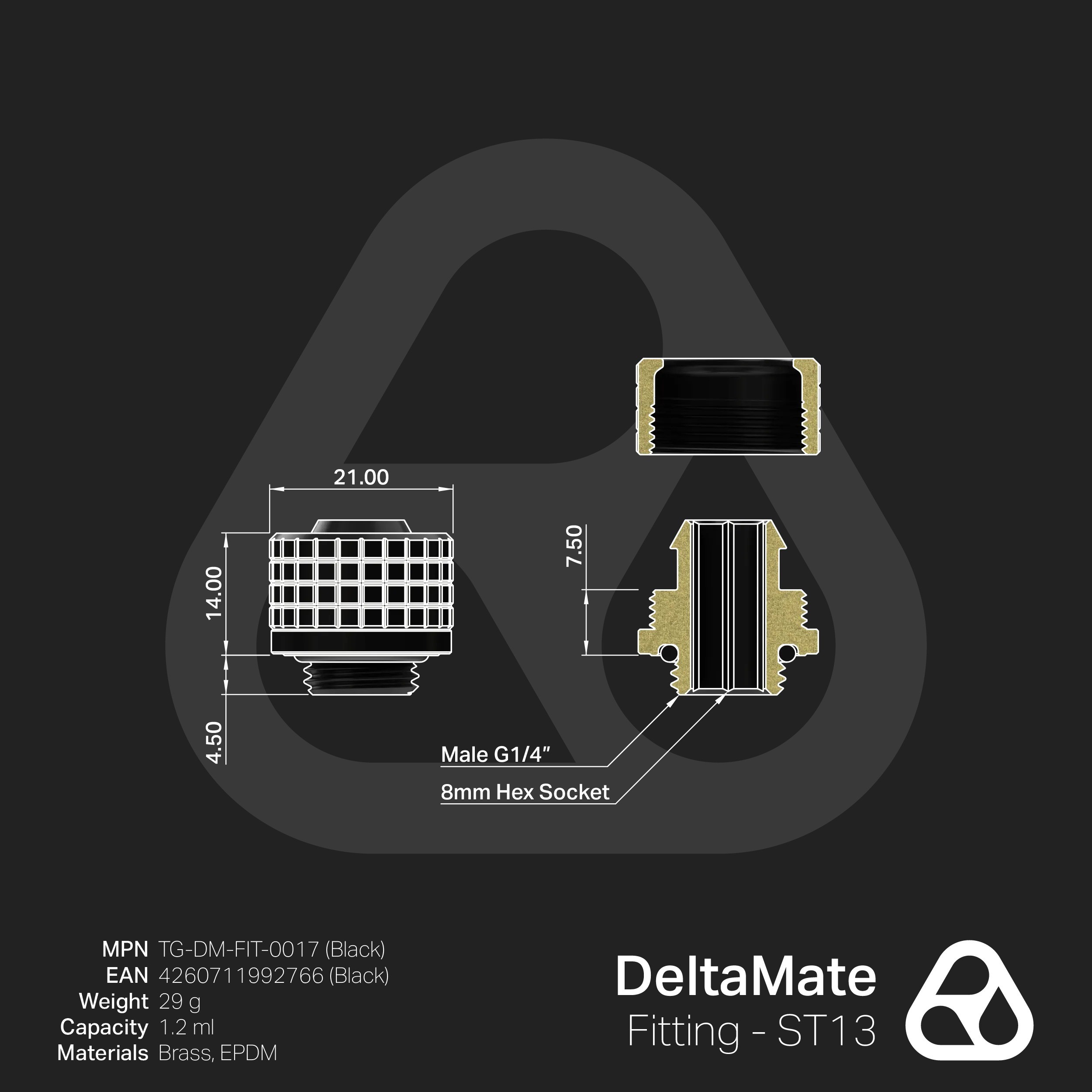

Properties
- Tubing
- Soft tube, 10 mm inner / 13 mm outer diameter
- Thread
- G1/4" male
- Material
- Brass, matt black chromium
- O-ring
- EPDM
- Install
- 8 mm hex key
- Weight
- 29 g, 31 g boxed
General information
DeltaMate fittings are water cooling connectors that Thermal Grizzly designed for the individual components of a custom water cooling loop. They are precisely machined from brass, as expected from Thermal Grizzly quality. Brass is an alloy of copper and zinc. It offers the advantage of being anodically compatible with other metals while being harder and more corrosion-resistant than copper. The sealing rings (O-rings) are made from EPDM (ethylene propylene diene rubber), a highly elastic material which is resistant to ozone and UV radiation. The fittings are coated with matt black chromium, which Thermal Grizzly calls a premium finish that is also easy to clean.
Tube installation

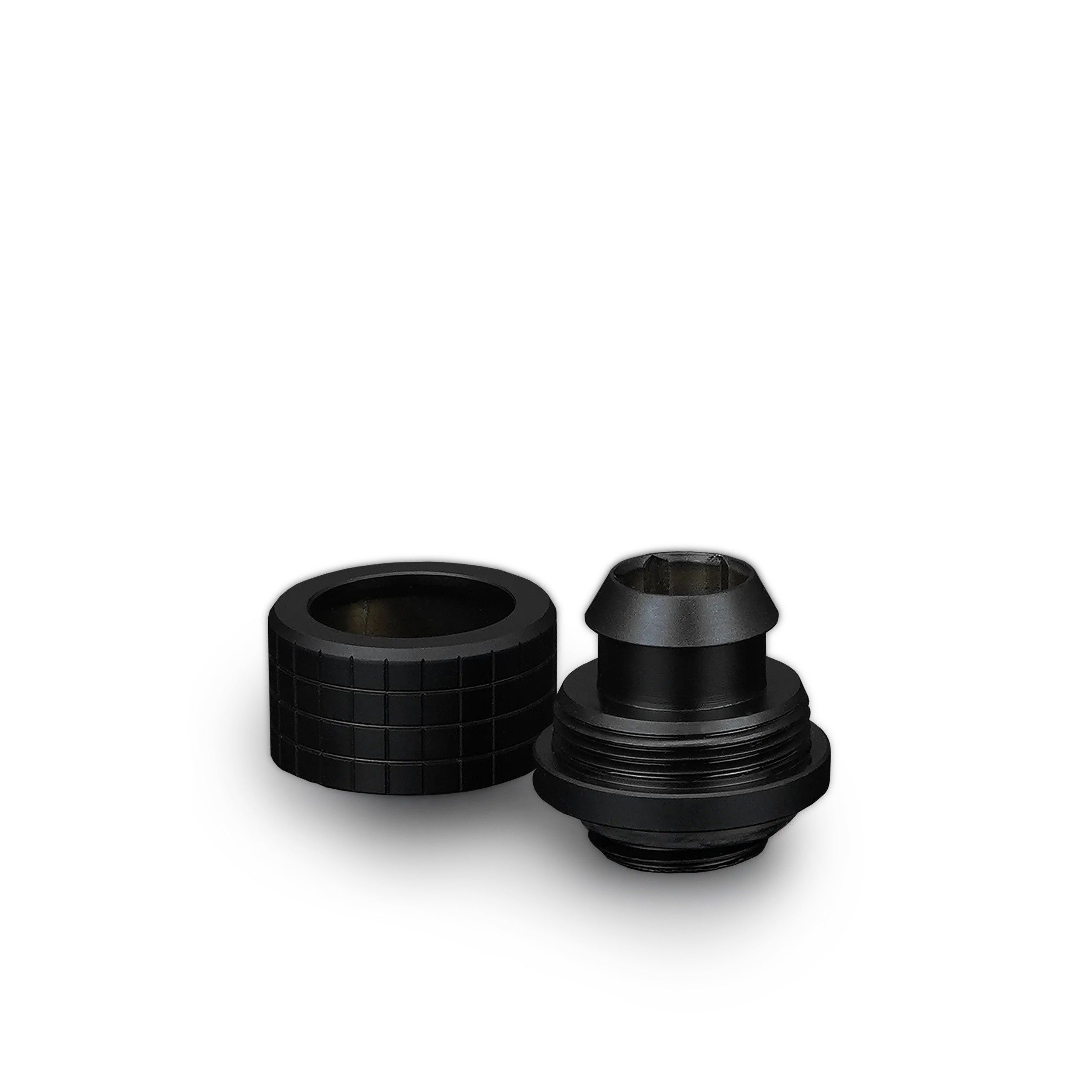

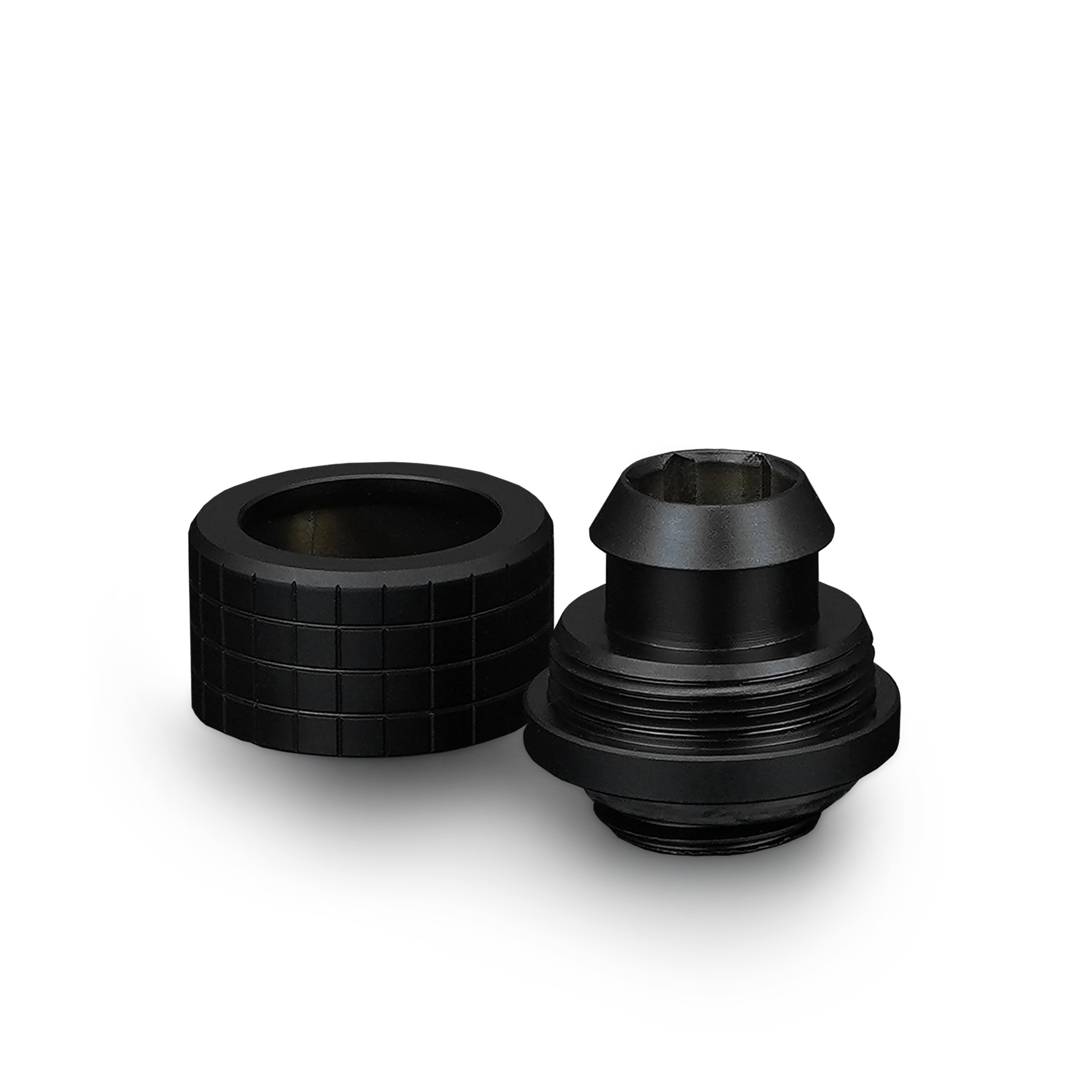

The ST13 fitting in black is suitable for soft tubes made of flexible plastics. Its single tapered barb allows straightforward installation for a wide range of flexible tubes. In combination with the barb, a knurled compression ring securely grips the tubing with high retention force, and that allows for easy and secure tube installation.
Note: Only tubes with a 10 mm inner diameter / 13 mm outer diameter fit this one.

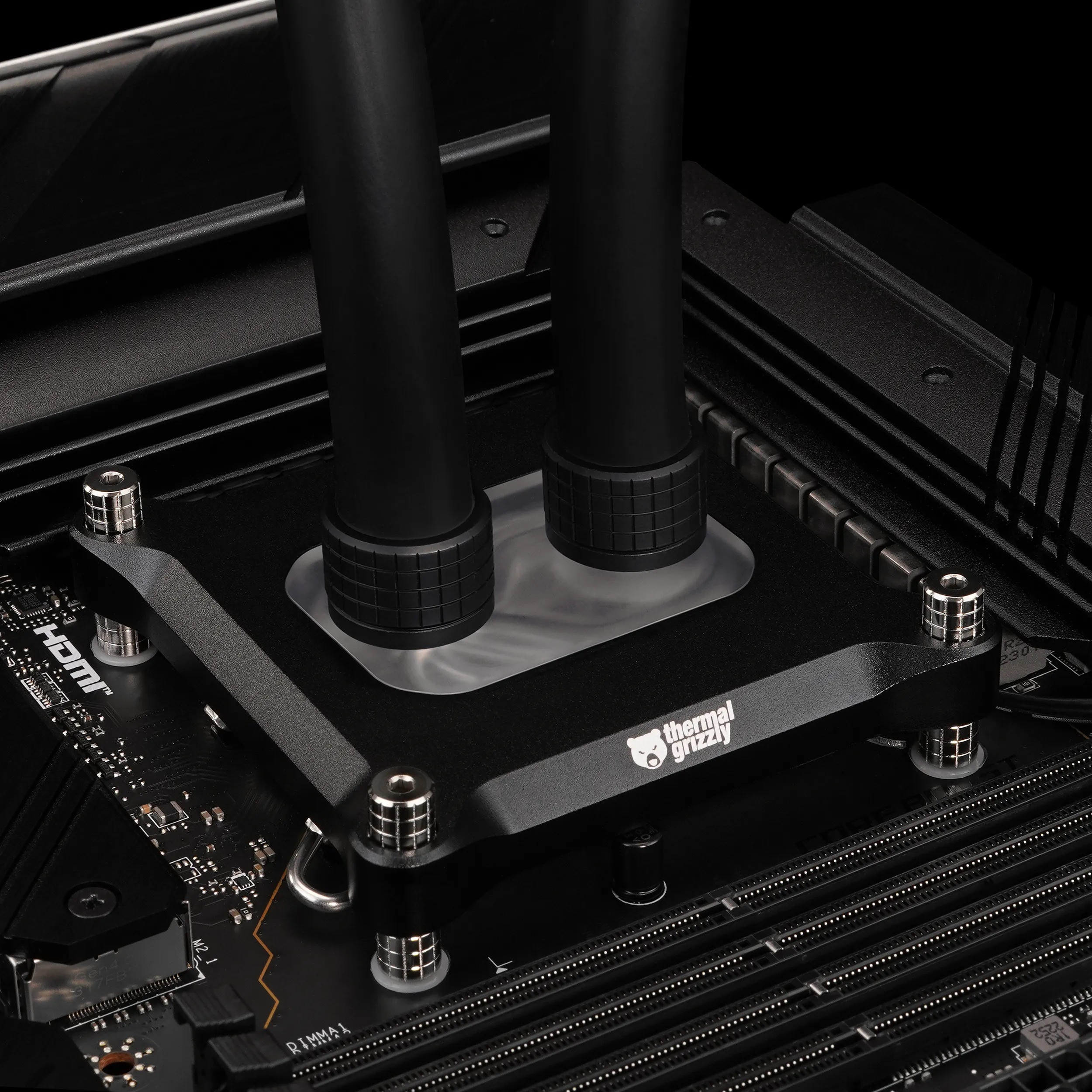

Fit in the loop
Installation is done using an 8 mm hex key (8mm), which the robust design of the DeltaMate fittings allows for. The compact overall dimensions facilitate installation in almost any watercooling loop. All DeltaMate fittings share one uniform, consistent outer diameter, which ensures completely seamless integration of the individual components.
In the box
- 1x DeltaMate ST13 13/10mm SoftTube compression fitting, black
Thermal Grizzly's data sheet for the DeltaMate fittings is a PDF.
