Details

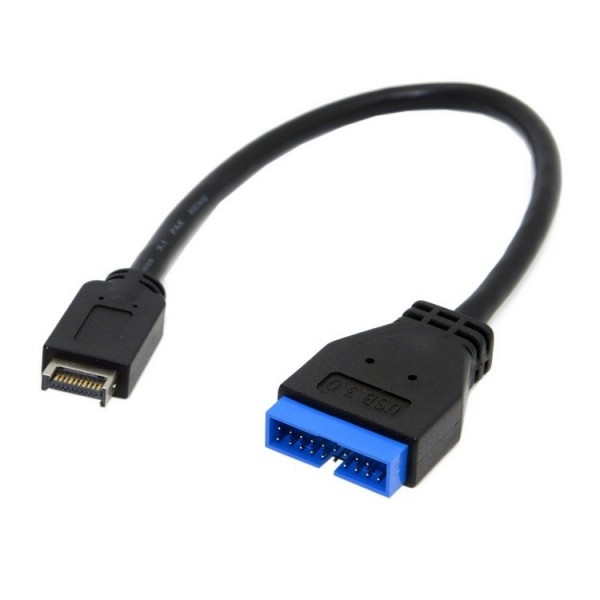

This adapter cable connects a case front panel with a USB 3.0 cable to the USB 3.1 Type-E front panel header of the motherboard. The small Type-E plug goes onto the header, and the blue 20-pin USB 3.0 connector at the other end takes the 20-pin plug of the front panel cable. It is the fix when the board has a free Type-E header but no free USB 3.0 header.
Properties
- Type
- Internal USB adapter cable
- Motherboard end
- USB 3.1 Type-E front panel header plug
- Front panel end
- USB 3.0 20-pin connector
- Length
- 20 cm
- Pieces in the pack
- 1
USB 3.0 front ports on a Type-E header
Plug the Type-E end onto the header of the motherboard, then connect the USB 3.0 cable of the case front panel to the blue 20-pin connector. The front USB 3.0 ports work as before.
Speed
The connected ports run at USB 3.0 speed, up to 5 Gbps, because that is the limit of the USB 3.0 connection.
Technical data
| Part number | MOD-0294 |
| Motherboard end | USB 3.1 Type-E (Gen2) header plug |
| Front panel end | USB 3.0 20-pin connector, blue |
| Length | 20 cm |
| Data rate | Up to 5 Gbps (USB 3.0) |
Notes
- With this adapter, speeds are limited to 5 Gbps by the USB 3.0 connection.
In the box
- 1x ModMyMods USB 3.1 Type E Gen2 Front Panel Header to USB 3.0 20 Pin Adapter Cable
