Details
This mini adapter board converts a USB 3.0 19-pin header of the motherboard into a USB 3.1 Type-E front panel header. Plug it straight onto the USB 3.0 header and connect the Type-E cable of the case front panel, usually for a front USB-C port, to the adapter. No cables or other parts are needed.
Properties
- Type
- USB header converter
- Motherboard end
- USB 3.0 19-pin header socket
- Output
- USB 3.1 Type-E front panel header
- Data rate
- Up to 5 Gbps (USB 3.0)
- Pieces in the pack
- 1
Front USB-C on a board without Type-E
Cases with a front USB-C port use a Type-E cable that needs the matching header on the motherboard. Older and simpler boards have only USB 3.0 19-pin headers. The adapter lets the front panel cable plug into such a board directly.
Compact design

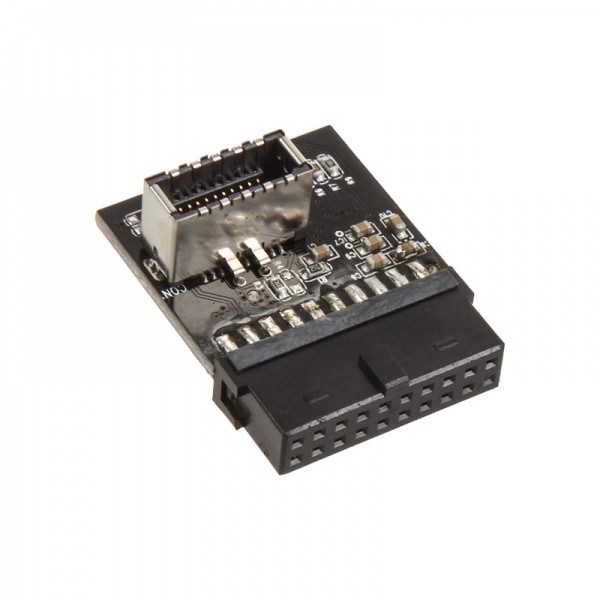

The 19-pin socket and the Type-E port sit side by side on a compact black board of 23 x 12 x 28 mm (W x H x D).
Speed
The front port runs at USB 3.0 speed, up to 5 Gbps, because that is the limit of the USB 3.0 header that feeds it.
Technical data
| Part number | CO934 |
| Type | USB 3.0 header to USB 3.1 Type-E header converter |
| Input | USB 3.0 19-pin header socket |
| Output | USB 3.1 Type-E header |
| Data rate | Up to 5 Gbps (USB 3.0) |
Notes
- ModMyMods sells two versions of this converter: MOD-0359 and MOD-0360, the version with a blue socket under the board. Check the space around the USB 3.0 header of your motherboard to choose.
In the box
- 1x ModMyMods USB 3.0 19Pin to Motherboard USB 3.1 Type C Front Panel Header Adapter
