Details

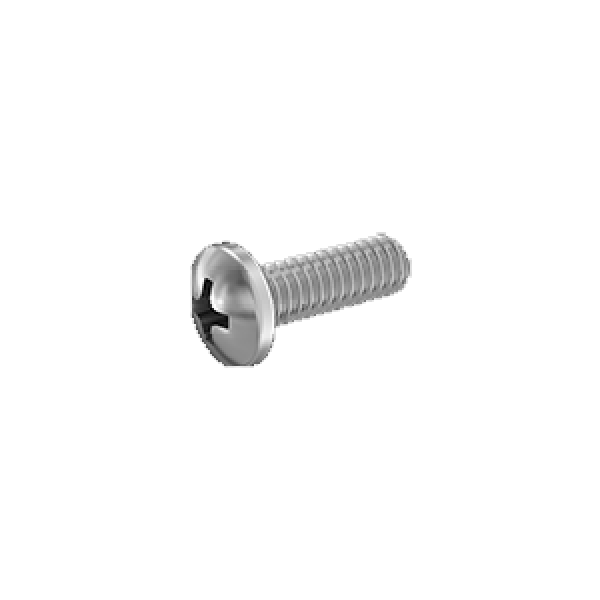

The ModMyMods M3 x 8mm Phillips Pan-Head Screw - Stainless Steel is an M3 x 8 mm machine screw with a Phillips pan head, made of stainless steel. The pan head is 6 mm across and 2.5 mm tall and takes a No. 1 Phillips screwdriver.
Properties
- Type
- Machine screw, Phillips pan head
- Thread
- M3 x 0.5
- Length
- 8 mm
- Material
- Stainless steel
- Color
- Stainless Steel
- Pieces in the pack
- 1
Small parts around the loop
Short screws like this one hold the parts around a loop: radiator grills and faceplates, pump mounts, waterblock brackets, acrylic windows and your own fabricated parts.
Check thread and depth first
Radiators and other parts use different threads (M3, M4 and 6-32 are the common ones) and different usable thread depths. Check what your part takes before you choose a size. On a radiator, a screw that is too long can reach the core and puncture a water channel, so always make sure the screw stops short of the fins.
Stainless steel
Stainless steel does not rust, so the screw keeps its clean silver look in a build that runs for years.
Technical data
| Thread | M3 x 0.5 |
| Length | 8 mm |
| Head | Pan head, 6 mm diameter, 2.5 mm tall, Phillips No. 1 drive |
| Material | Stainless steel |
| Color | Stainless Steel |
Notes
- This listing is for one piece. Add the quantity you need to the cart.
- ModMyMods Phillips pan head screws come in M3 x 30, 35 and 40 mm in stainless steel for fans, M3 x 8 mm in stainless steel, M3 x 6 and 8 mm in black, and M4 x 30 mm in black.
In the box
- 1x ModMyMods M3 x 8mm Phillips Pan-Head Screw - Stainless Steel
