Details

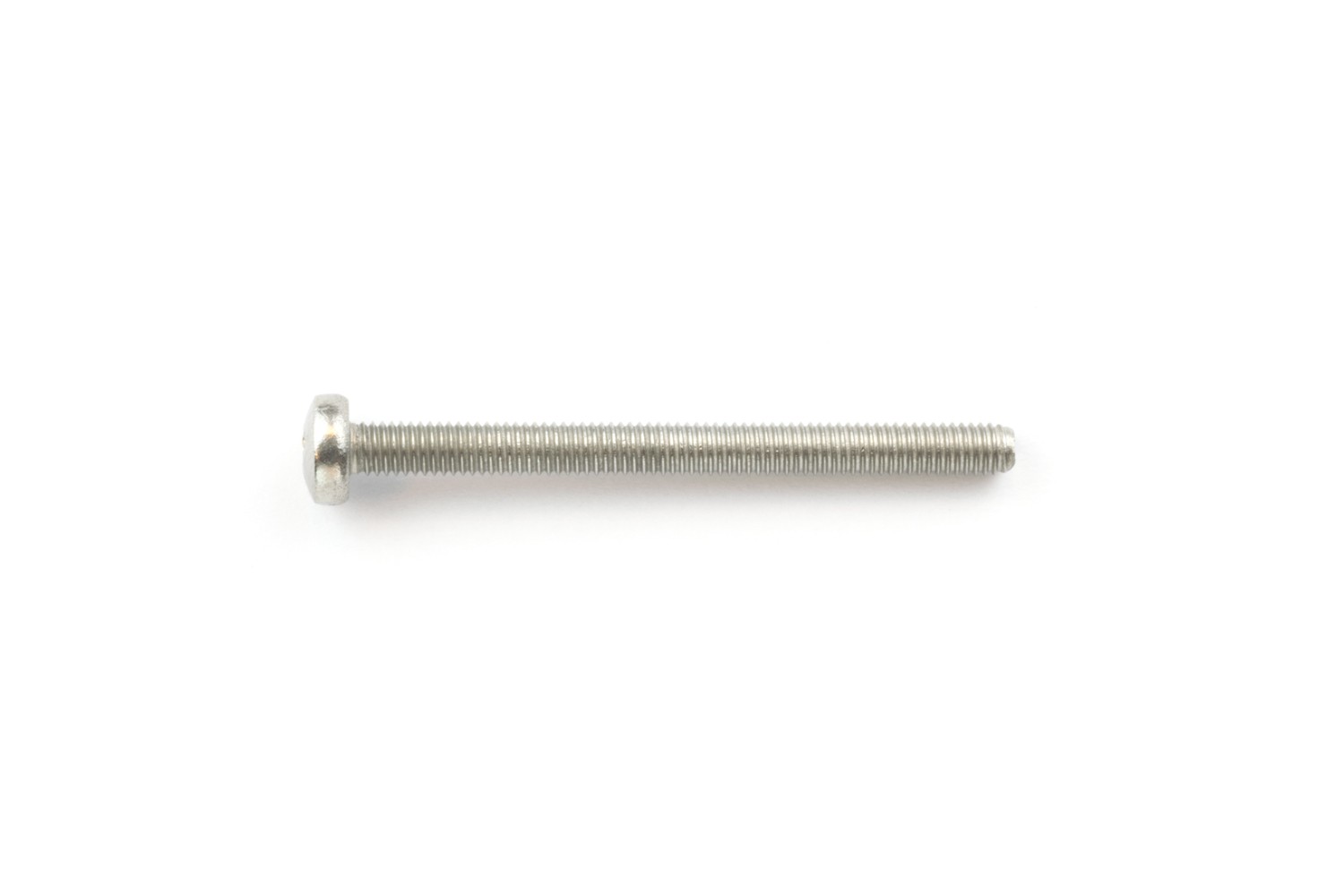

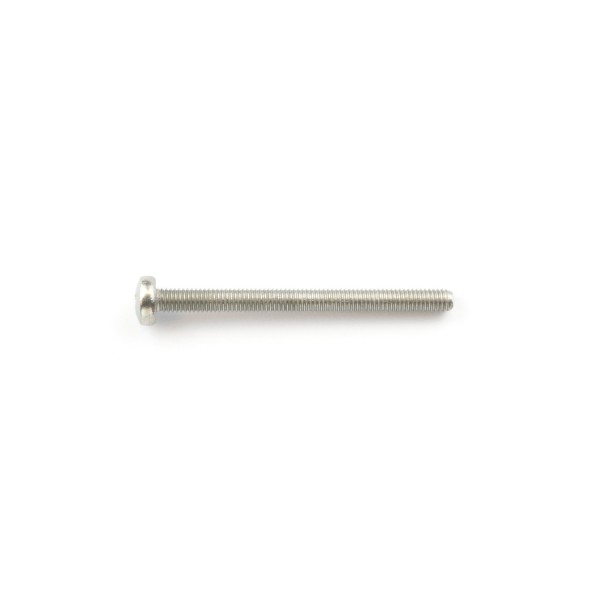

The ModMyMods M3 x 35mm Phillips Pan-Head Screw - Stainless Steel is an M3 x 35 mm machine screw with a Phillips pan head, made of stainless steel. At 35 mm long it is made for fastening fans to radiators with M3 threaded holes.
Properties
- Type
- Machine screw, Phillips pan head
- Thread
- M3 x 0.5
- Length
- 35 mm
- Material
- Stainless steel
- Color
- Stainless Steel
- Pieces in the pack
- 1
Fans onto radiators
Most radiators have threaded holes along each fan position, and the fans are held by long screws that go right through the fan frame. A 35 mm screw passes through a standard 25 mm thick fan and leaves about 10 mm of thread to engage in the radiator.
Check thread and depth first
Radiators and other parts use different threads (M3, M4 and 6-32 are the common ones) and different usable thread depths. Check what your part takes before you choose a size. On a radiator, a screw that is too long can reach the core and puncture a water channel, so always make sure the screw stops short of the fins.
Stainless steel
Stainless steel does not rust, so the screw keeps its clean silver look in a build that runs for years.
Technical data
| Thread | M3 x 0.5 |
| Length | 35 mm |
| Head | Pan head, Phillips drive |
| Material | Stainless steel |
| Color | Stainless Steel |
Notes
- This listing is for one piece. Add the quantity you need to the cart.
- ModMyMods Phillips pan head screws come in M3 x 30, 35 and 40 mm in stainless steel for fans, M3 x 8 mm in stainless steel, M3 x 6 and 8 mm in black, and M4 x 30 mm in black.
In the box
- 1x ModMyMods M3 x 35mm Phillips Pan-Head Screw - Stainless Steel
