Details

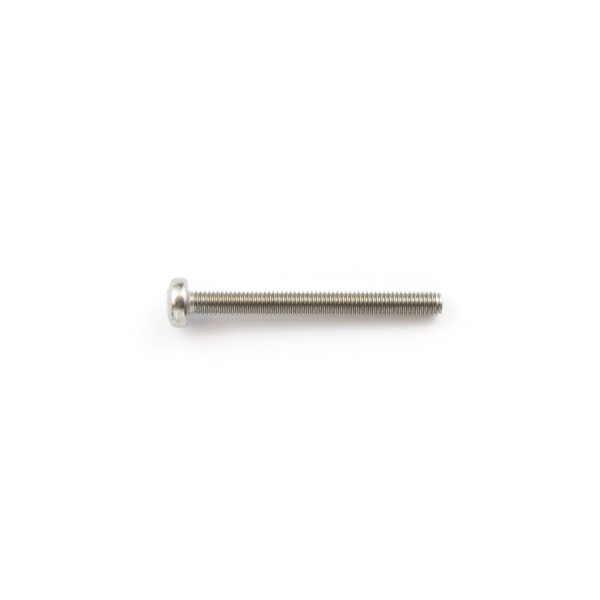

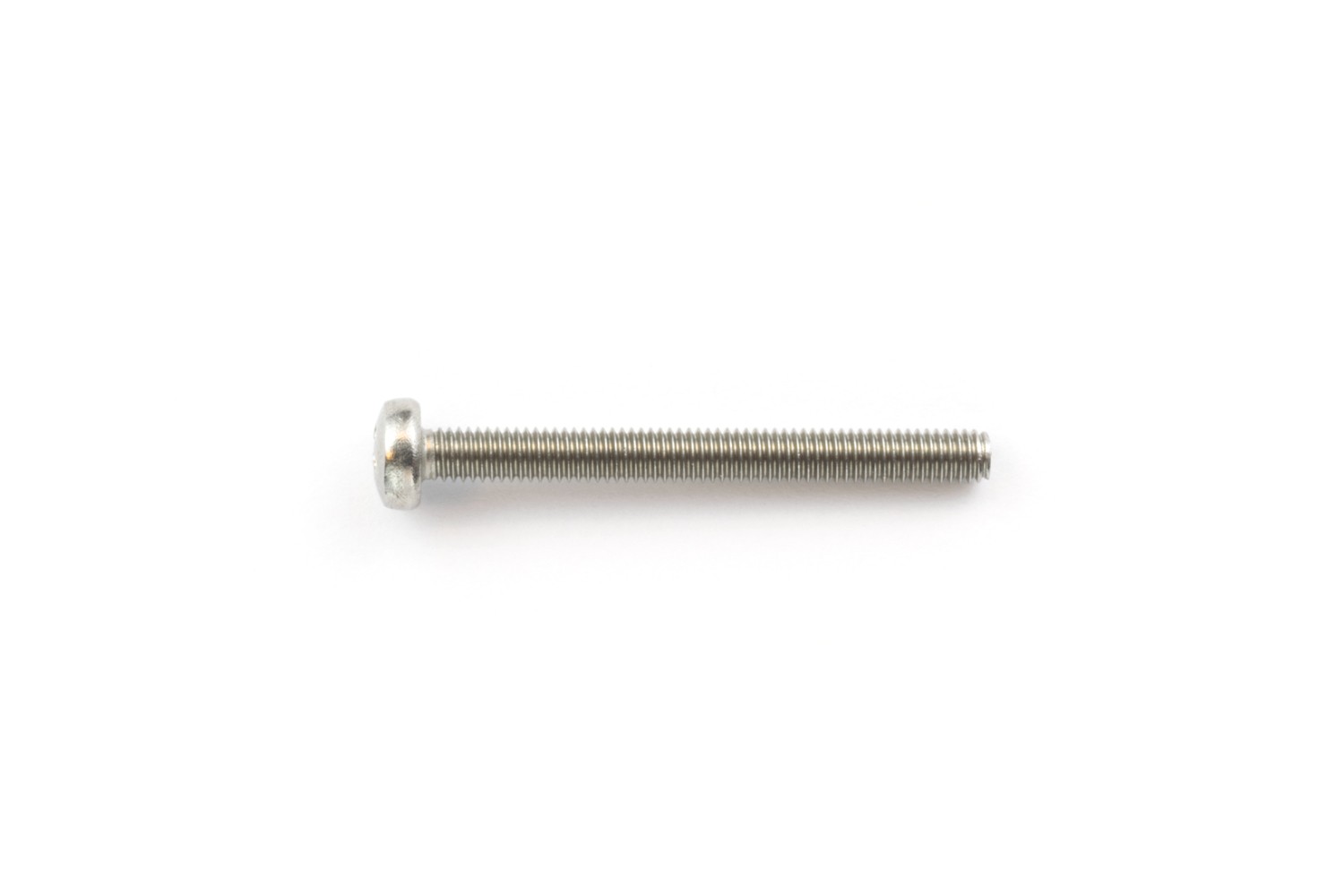

The ModMyMods M3 x 30mm Phillips Pan-Head Screw - Stainless Steel is an M3 x 30 mm machine screw with a Phillips pan head, made of stainless steel. At 30 mm long it is made for fastening fans to radiators with M3 threaded holes.
Properties
- Type
- Machine screw, Phillips pan head
- Thread
- M3 x 0.5
- Length
- 30 mm
- Material
- Stainless steel
- Color
- Stainless Steel
- Pieces in the pack
- 1
Fans onto radiators
Most radiators have threaded holes along each fan position, and the fans are held by long screws that go right through the fan frame. A 30 mm screw passes through a standard 25 mm thick fan and leaves about 5 mm of thread to engage in the radiator.
Check thread and depth first
Radiators and other parts use different threads (M3, M4 and 6-32 are the common ones) and different usable thread depths. Check what your part takes before you choose a size. On a radiator, a screw that is too long can reach the core and puncture a water channel, so always make sure the screw stops short of the fins.
Stainless steel
Stainless steel does not rust, so the screw keeps its clean silver look in a build that runs for years.
Technical data
| Thread | M3 x 0.5 |
| Length | 30 mm |

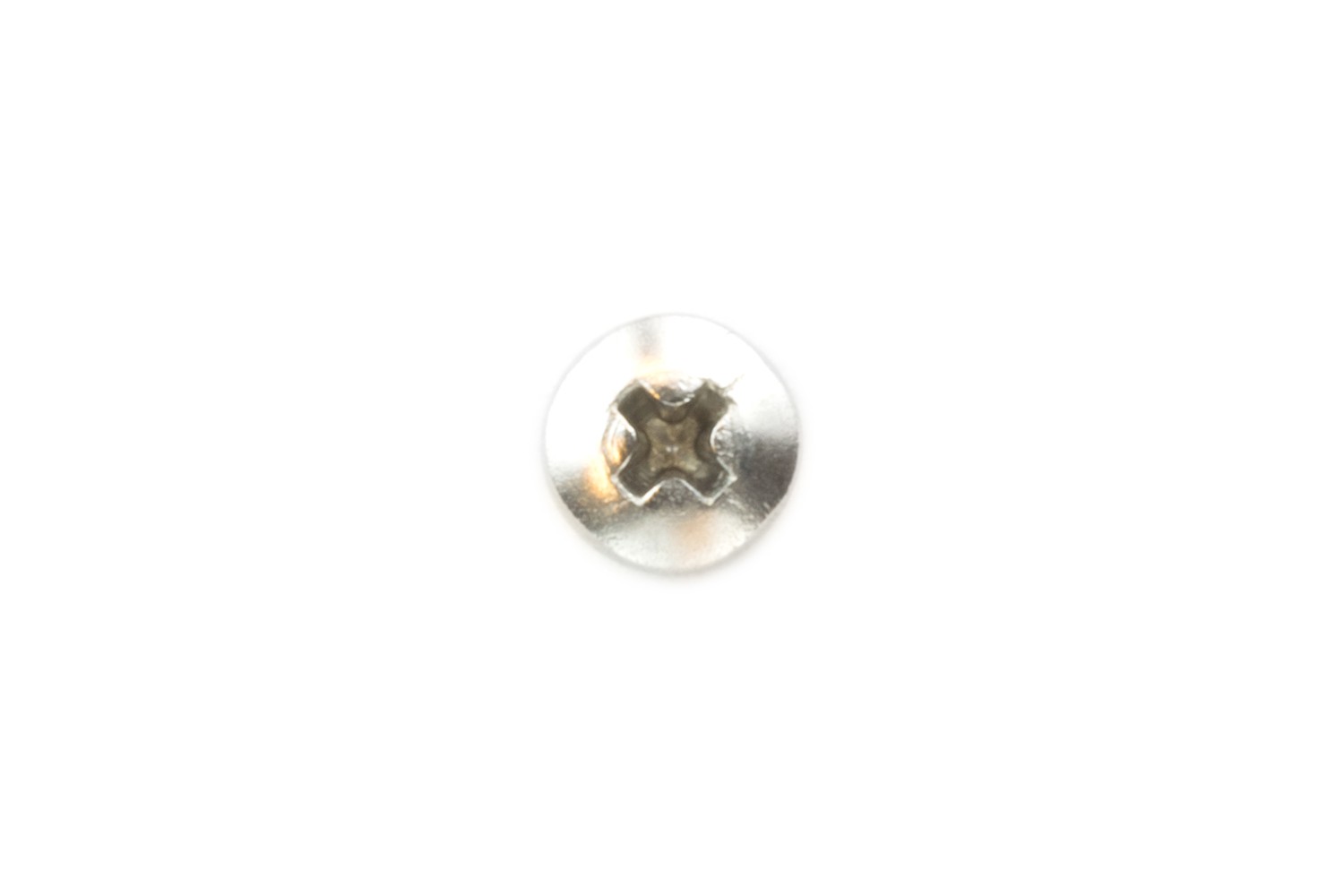

| Head | Pan head, Phillips drive |
| Material | Stainless steel |
| Color | Stainless Steel |
Notes
- This listing is for one piece. Add the quantity you need to the cart.
- ModMyMods Phillips pan head screws come in M3 x 30, 35 and 40 mm in stainless steel for fans, M3 x 8 mm in stainless steel, M3 x 6 and 8 mm in black, and M4 x 30 mm in black.
In the box
- 1x ModMyMods M3 x 30mm Phillips Pan-Head Screw - Stainless Steel
