Details

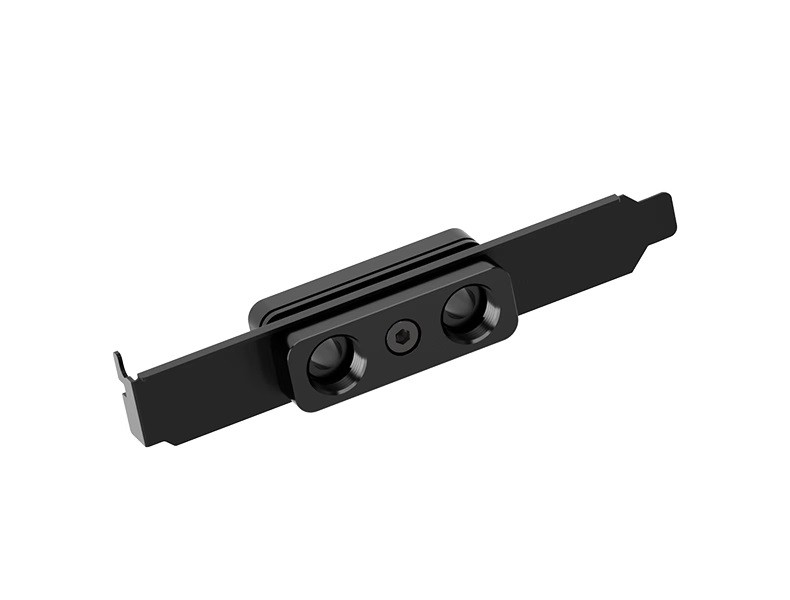

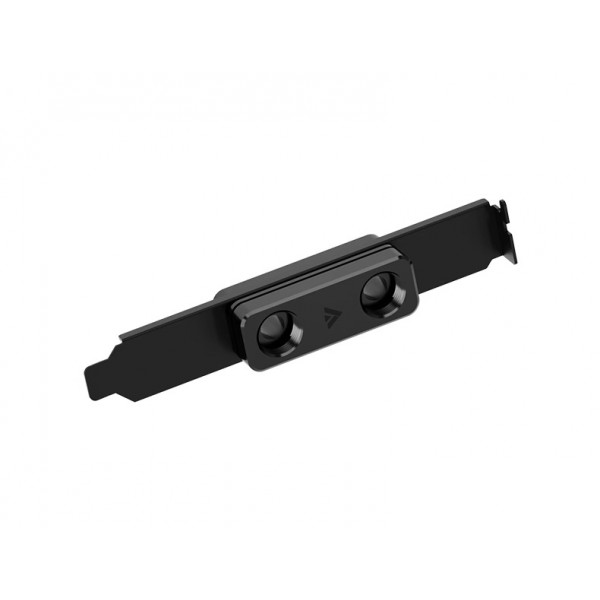

The Barrow GJTPC-01 is a pass-through module on a PCI slot cover. It takes the place of an expansion slot cover at the back of your case and carries two coolant channels through it, each with a G1/4" port inside and outside the case, so you can run your loop to an external radiator or an external cooling unit without drilling the case. The block is black acetal on a black slot cover.
Properties
- Type
- PCI slot pass-through, 2 channels
- Ports
- G1/4", 4 in total (2 inside, 2 outside)
- Port spacing
- 30 mm
- Block size (L x W x H)
- 50 x 18 x 29.9 mm
- Material
- Acetal block
- Color
- All black
- Pieces in the pack
- 1
Take the loop outside the case
Barrow calls the GJTPC-01 a pass-through adapter module for the case. It mounts like a normal expansion card bracket: remove a slot cover, put the GJTPC-01 in its place and screw it down. The two channels then lead the coolant out to an external radiator and back in again.
Two channels, four G1/4" ports
The block has two straight channels, 30 mm apart. Each channel ends in a G1/4" female port on the inside and on the outside of the case, so there are four G1/4" ports in total. Every port takes a standard G1/4" fitting from our fittings, which are not in the box.
Acetal block in a slot cover
The block is 50 mm long, 18 mm deep and 29.9 mm high and sits in the middle of the slot cover. Barrow makes the body from black acetal (POM) and says it resists corrosion and works with fittings of different materials and with different coolants. It needs one spare single PCI slot.
Technical data
| Model | GJTPC-01 |
| Type | PCI slot pass-through module |
| Channels | 2 |
| Threads | G1/4" |
| Ports | 4 (2 inside, 2 outside) |
| Port spacing | 30 mm |
| Block dimensions (L x W x H) | 50 x 18 x 29.9 mm |
| Material | Acetal (POM) block |
| Color | Black |
Notes
- The module needs one free single expansion slot opening at the back of the case.
- Barrow notes that it may update the look or construction of the product without notice; the product you receive is the current version.
In the box
- 1x Barrow PCI Slot Pass-Through with Two G1/4 Connections - All Black
