Details

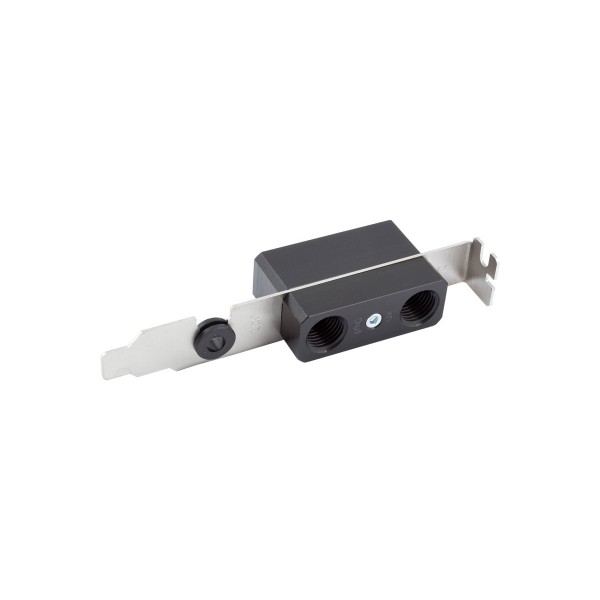

The Aquacomputer PCI Slot Pass-Through with Two G1/4 Connections and Cable Hole is a coolant feedthrough for a vacant PCIe or PCI slot. Each of its two connectors has a G1/4 thread on both the external and the internal side. It takes two coolant lines and one round cable up to 6.5 mm out of the PC case without drilling any holes.
Properties
- For
- One vacant PCIe or PCI slot
- Thread
- G1/4, external and internal side
- Bracket
- Stainless steel
- Connectors
- Two, acetal, sealed with O-rings
- Cable hole
- Round cable up to approx. 6.5 mm
How it is built
This pass through connector consists of only three components: a stainless steel bracket and two acetal connectors. Each connector is made of an inner part and an outer part, and two O-ring seals (gaskets) make them seal safely against the bracket. The construction also gives the two coolant lines what Aquacomputer calls excellent strain relief.
Installing it
The bracket can be installed hassle free. Simply fixate it in the slot like any other slot cover, then the inner part is connected to the outer part through it and the two are screwed together. The neighboring slots stay free, since they are not obstructed by this slot cover. For easy tubing management we recommend using the lowest free slot.
The cable feedthrough
Next to the two connectors, the bracket has an additional cable feedthrough. It can be used for a round cable with a diameter of up to ca. 6.5 mm, and a rubber ring protects the cable where it passes through the steel.
What the loop needs
Fittings are not included in delivery. With a G1/4 thread inside and outside the case on each of the two connectors, a run through it takes four fittings. Use G1/4 fittings of your choice, ordered separately for your preferred hose dimensions from our fittings section. Thanks to the external G1/4 thread, Aquacomputer's non-spill couplings 90108/90109 (also not included) can be installed directly into the feedthrough; other couplings are among our quick disconnect fittings. The same pass-through without the cable hole is the version 63046.
In the box
- One bracket with two-piece acetal feedthrough and rubber cable protector
