Details

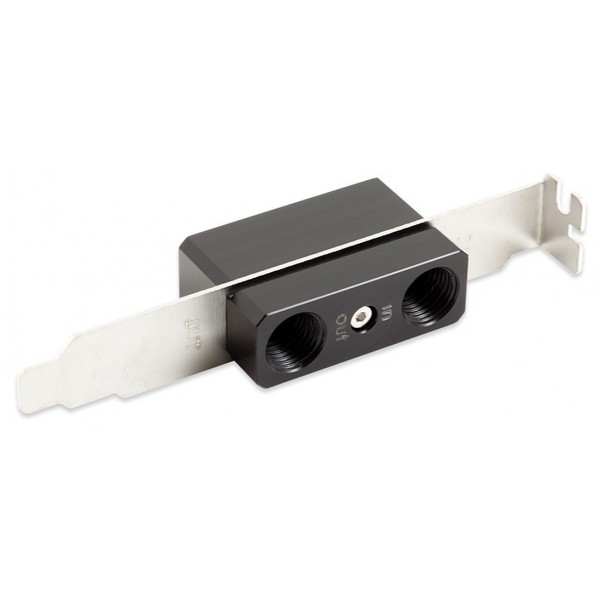

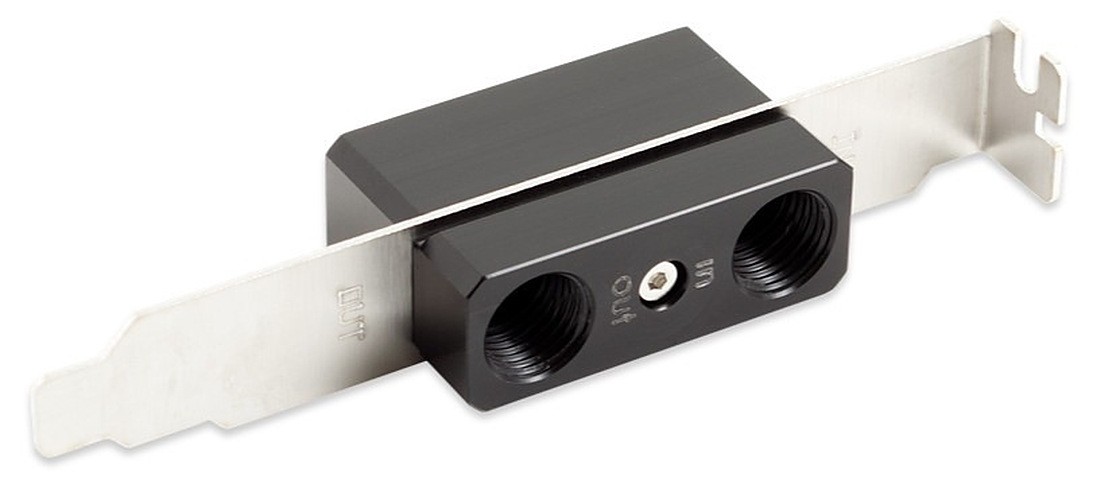

The Aquacomputer PCI Slot Pass-Through with Two G1/4 Connections (63046) takes two coolant lines out of the PC case through a vacant PCIe or PCI slot, with no holes to drill. Both connectors carry a G1/4 thread on the inside and the outside of the case.
Properties
- Slot
- One vacant PCIe or PCI slot
- Thread
- G1/4, internal and external side
- Bracket
- Stainless steel
- Connectors
- Two, two-piece acetal, sealed with O-rings
How it installs
This pass through connector consists of only three components, so installation is hassle free. Simply fasten the stainless steel bracket like any other slot cover. The inner part and the outer part of each acetal connector are then connected and screwed together, and they seal safely with two O-ring seals.
The neighboring slots are not obstructed by the bracket. For easy tubing management we recommend using the lowest free slot. Aquacomputer says the construction also gives excellent strain relief for the two coolant lines.
What a run needs
Fittings are not included in delivery: use G1/4 fittings of your choice for your hose dimensions, ordered separately from our fittings section. Thanks to the external G1/4 thread, Aquacomputer's non-spill couplings 90108/90109 (also not included) can be installed directly into the feedthrough. To pass a cable through the same slot, there is the version with a cable hole.
In the box
- 1x Stainless steel bracket with two-piece acetal feedthrough, two G1/4 connections
