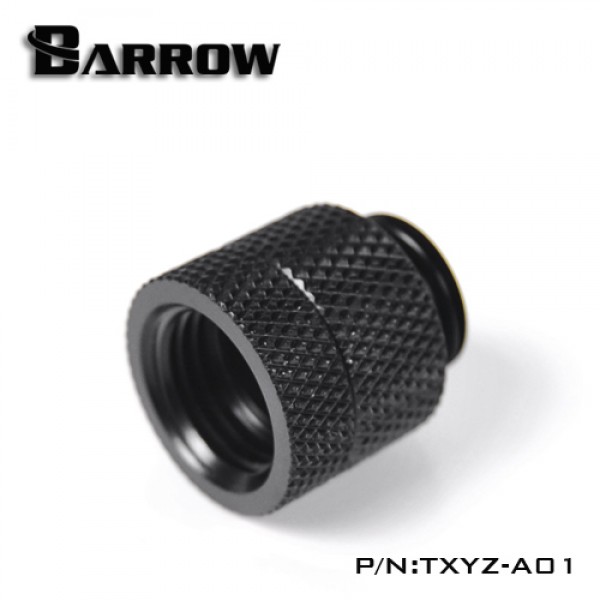

Barrow G1/4" Male to Female Anti-Twist Rotary Adapter Fitting - Black (TXYZ-A01)

The Barrow TXYZ-A01 is a straight rotary adapter with a G1/4" male thread on one end and a G1/4" female thread on the other. The two halves turn against each other through a full 360°, so a fitting screwed into it can be turned to face the right way without loosening the thread underneath. It is machined from H59 brass and finished in black.

Properties

Type

Straight rotary adapter, male to female

Thread

G1/4" male to G1/4" female

Rotation

360°

Material

H59 brass, electroplated

Color

Black

Pieces in the pack

1

Point any fitting the right way

Barrow calls this an anti-twist adapter. Screw the male end into any G1/4" port and your fitting into the female end; the adapter then lets the fitting turn freely, so an angled fitting or a soft tube no longer has to be overtightened or backed off to face the right direction. It adds 14 mm of height above the port.

Brass with a double-protected finish

Barrow uses H59 brass for the body and protects the surface with what it calls a double electroplating process, which it says gives a fine texture that is solid and durable.

Non-slip diamond knurling

The rotating collar has a diamond knurl pattern. Barrow says it gives a sure grip when you screw the adapter in by hand.

Standard G1/4" connections

Both ends use the standard G1/4" thread of PC water cooling, so the adapter works with blocks, radiators, reservoirs and fittings from other makers as well as Barrow's own. The male end is sealed by an O-ring.

Technical data

Notes

• Barrow sells this adapter in black, white, shiny silver and gold. This listing is the black version.
• Barrow notes that it may update the look or construction of the part without notice; the part you receive is the current version.

In the box

• 1x Barrow G1/4" Male to Female Anti-Twist Rotary Adapter Fitting - Black
