Details

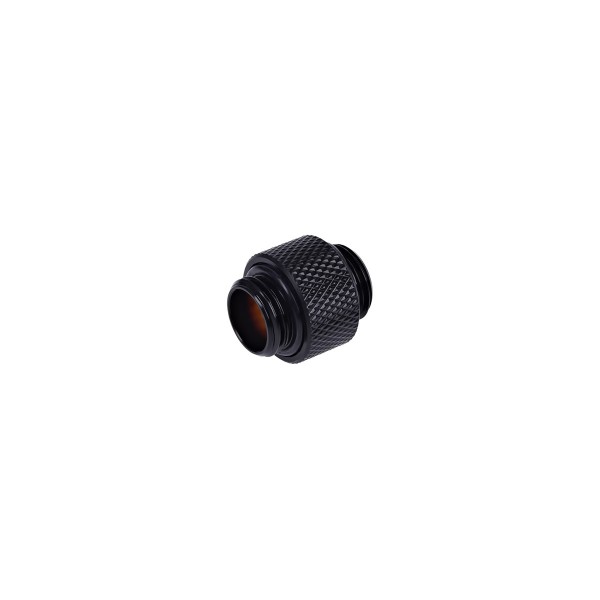

The Alphacool G1/4 HF 10mm Male to Male Extension Fitting - Deep Black is a double nipple with two G1/4 outer threads and a length of 10 mm, one fitting per pack. It comes with an O-ring.
Properties
- Thread
- G1/4 outer thread on both sides
- Color
- Deep Black
- Material
- Brass, chromated
- Size
- Length 10 mm, diameter 18 mm
- Pieces in the pack
- 1
The HF fitting series
Alphacool says its fittings go new ways in looks, quality of manufacturing, colors and choice. By its account the inner diameter of these fittings truly deserves the "high flow" attribute. The first three colors are Chrome, Deep Black and Shiny Copper, which Alphacool says offer something for every taste. In its words the product matching series are designed to look elegant in every system, highlighting the individual design of the computer. It adds that the limits are endless when these fittings are used in combination with Alphacool tubing.
Finish and lettering
Alphacool describes a new process during chromatising in which the surface finish is completely connected with the brass body. It names the result as permanent intense colors, hence ensuring that peeling of the chrome layer is prevented. The Alphacool name in blue lettering on some of the fittings additionally underlines the individuality of these items, the maker says.
Functionality of this connector
Two 1/4 inch outer threads make the part very useful for the extension of fittings. It also serves for the connection of components with an inner thread to a manifold or similar components with an inner thread.
What a run needs
Each side screws into one G1/4 inner thread. Other lengths are in our male to male extension fittings section.
Alphacool's Fitting Map is an interactive map of all its fittings, on its own site.
Notes
- Alphacool recommends distilled water for proper operation of the water cooling system.
- Use only clear, transparent water cooling fluids. Alphacool warns that the particles and additives in pastel liquids can clog and permanently damage radiators, pumps, coolers and hoses, which can void the manufacturer's warranty.
In the box
- 1x Alphacool G1/4" HF 10mm Male to Male Extension Fitting - Deep Black, with O-ring
Alphacool's 3D model of this fitting is an STP file, and the 3D viewer shows it from every side.
