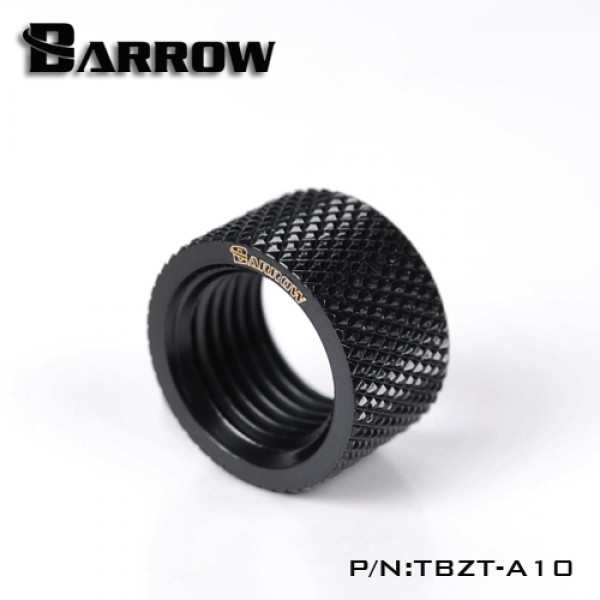

Barrow G1/4" 10.5mm Female to Female Extension Fitting - Black (TBZT-A10)

The Barrow TBZT-A10 is a short female to female extender: a knurled brass ring, 10.5 mm long, with a G1/4" female thread running all the way through. It turns a male G1/4" fitting into a female port again, or joins two male ends without tubing between them. It is machined from H59 brass and finished in black.

Properties

Type

Extender, female to female

Thread

G1/4" female to G1/4" female

Length

10.5 mm

Diameter

18 mm

Material

H59 brass, electroplated

Color

Black

Pieces in the pack

1

Join two male threads

Barrow makes this extender for joining two pieces of water cooling hardware end to end. Screw it onto a male G1/4" thread, such as a male to male Connector, a rotary or an extension fitting, and you have a female G1/4" port again for the next fitting. Between two blocks that sit close together it can replace a short piece of tubing.

Short and compact

At 10.5 mm long and 18 mm across, the ring adds very little height. It moves a port outward by its own length, which can give a large fitting the clearance it needs next to a block or radiator edge.

Brass with a double-protected finish

Barrow machines the body from H59 brass and protects the surface with what it calls a double electroplating process, which it says gives a fine texture that is solid and durable.

Non-slip diamond knurling

The outside carries a diamond knurl pattern. Barrow says it gives a sure grip when you screw the part in by hand.

Standard G1/4" connections

Both ends use the standard G1/4" thread of PC water cooling, so the extender works with blocks, radiators, reservoirs and fittings from other makers as well as Barrow's own. There is no O-ring on this part: the male thread you screw into it brings its own O-ring and seals against the end face.

Technical data

Notes

• Barrow sells this extender in black, white and shiny silver. This listing is the black version.
• Barrow gives the length as 10.5 mm; the newer drawing on its site rounds it to 10 mm.
• Barrow notes that it may update the look or construction of the part without notice; the part you receive is the current version.

In the box

• 1x Barrow G1/4" 10.5mm Female to Female Extension Fitting - Black
