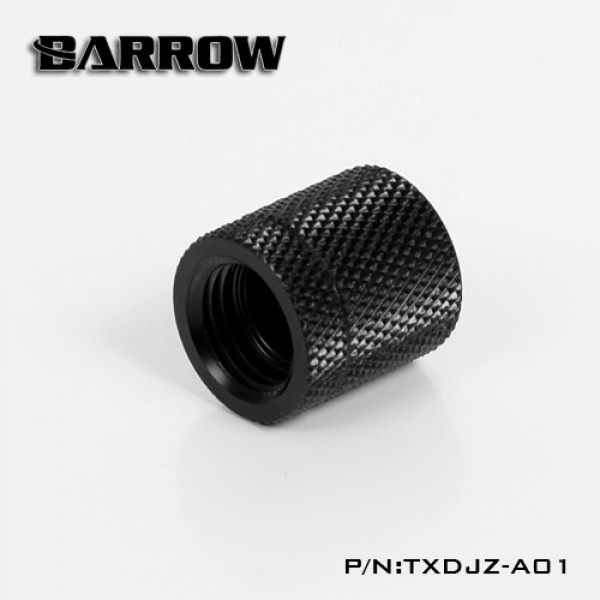

Barrow G1/4" Female to Female Anti-Twist Rotary Adapter Fitting - Black (TXDJZ-A01)

The Barrow TXDJZ-A01 is a straight rotary coupler with a G1/4" female thread on both ends. The two halves turn against each other through a full 360°, so it joins two male-threaded parts and still lets either side turn to the angle you need. It is machined from H59 brass and finished in black.

Properties

Type

Straight rotary coupler, female to female

Thread

G1/4" female to G1/4" female

Rotation

360°

Material

H59 brass, electroplated

Color

Black

Pieces in the pack

1

Join two male threads

Barrow makes this coupler for joining two parts that both end in a G1/4" male thread, for example a male to male extender and an angled adapter, or a fitting and a drain valve. Because the two halves turn against each other, the second part can be turned to face the right way after both are screwed in.

Brass with a double-protected finish

Barrow uses H59 brass for the body and protects the surface with what it calls a double electroplating process, which it says gives a fine texture that is solid and durable.

Non-slip diamond knurling

The rotating collar has a diamond knurl pattern. Barrow says it gives a sure grip when you screw the coupler in by hand.

Standard G1/4" connections

Both ends use the standard G1/4" thread of PC water cooling, so the coupler works with blocks, radiators, reservoirs and fittings from other makers as well as Barrow's own.

Technical data

Notes

• Barrow sells this coupler in black, white and shiny silver. This listing is the black version.
• Barrow notes that it may update the look or construction of the part without notice; the part you receive is the current version.

In the box

• 1x Barrow G1/4" Female to Female Anti-Twist Rotary Adapter Fitting - Black
