Details

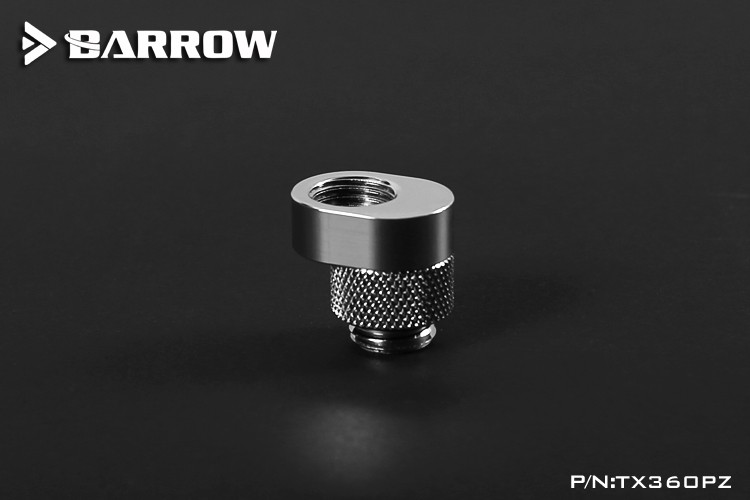

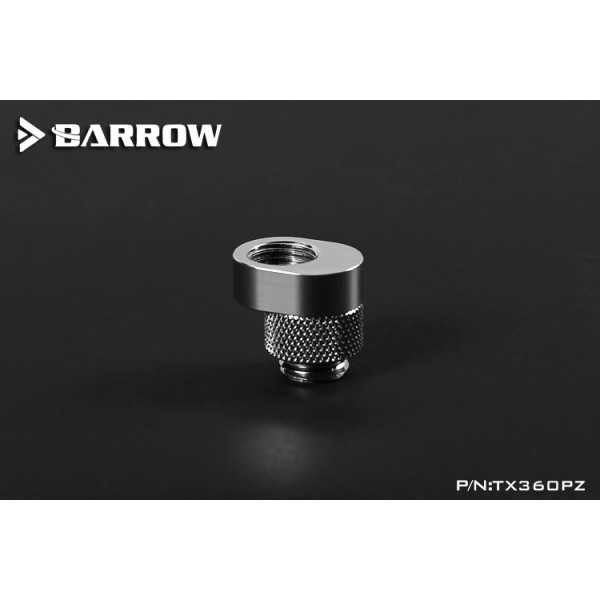

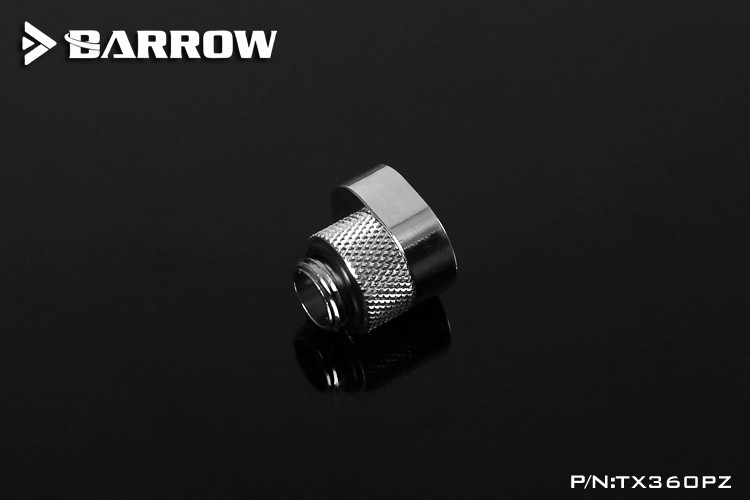

The Barrow TX360PZ is a rotary offset adapter with a G1/4" male thread on the bottom and a G1/4" female thread on top. The female port sits 6 mm off the axis of the male thread, and the body turns through a full 360°, so you can move the port by up to 6 mm in any direction. It is made of brass and finished in shiny silver.
Properties
- Type
- Rotary offset adapter, male to female
- Thread
- G1/4" male to G1/4" female
- Offset
- 6 mm
- Rotation
- 360°
- Material
- Brass
- Color
- Silver
- Pieces in the pack
- 1
Line up tube runs that do not quite meet
An offset adapter moves the port sideways instead of turning it. Screw the male end into a G1/4" port and turn the body: the female port swings around the male thread on a circle with a 6 mm radius, so it can sit anywhere up to 6 mm away from the original port center. That is enough to bring two hard tube runs into a straight line, or to move a fitting clear of a nearby part, without bending the tube. Barrow rates it for correcting a port deviation of up to 6 mm.
Brass body
Barrow makes this adapter from brass and describes it as lightweight.
Non-slip diamond knurling
The rotating collar has a diamond knurl pattern. Barrow says it gives a sure grip when you screw the adapter in by hand.
Standard G1/4" connections
Both ends use the standard G1/4" thread of PC water cooling, so the adapter works with blocks, radiators, reservoirs and fittings from other makers as well as Barrow's own. The male end is sealed by an O-ring.
Technical data
| Model | TX360PZ |
| Type | Rotary offset adapter, male to female |
| Threads | G1/4" male | G1/4" female |
| Offset between port centers | 6 mm |
| Possible rotation | 360° |
| Body size | 24 x 18 mm |
| Body height | 8.5 mm |
| Rotary collar | 18 mm diameter, 9 mm high |
| Height without male thread | 17.5 mm |
| Male thread length | 5 mm |
| Material | Brass |
| Color | Silver |
Notes
- For a larger offset, see the Barrow TX360PZ-15-V2 (15 mm) and TX360PX-21 (21 mm).
- Barrow sells this adapter in black, white and shiny silver. This listing is the shiny silver version.
- Barrow notes that it may update the look or construction of the part without notice; the part you receive is the current version.
In the box
- 1x Barrow G1/4" 360° Rotary Offset Adapter Fitting - Silver
