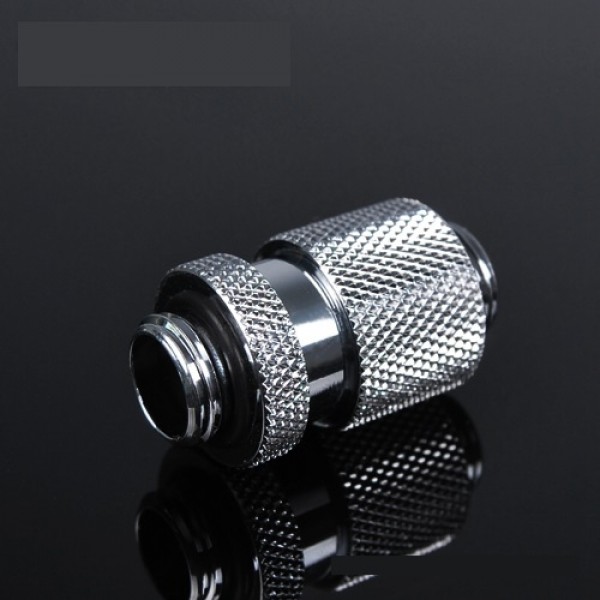

Barrow G1/4" 20mm Male to Male Extension Fitting with Micro Adjustment - Silver (THDJ20-V1-Silver)

The Barrow THDJ20-V1 is a male to male extension fitting with micro adjustment. Its knurled body is 20.1 mm long and can be pulled out by up to 5 mm, so it bridges the gap between two G1/4" female ports exactly, even when the distance is not a round number. It is machined from H59 brass and finished in shiny silver.

Properties

Type

Extension fitting, male to male, adjustable

Thread

G1/4" male to G1/4" male

Length

30.1 to 35.1 mm overall

Adjustment

5 mm

Diameter

20 mm

Material

H59 brass, electroplated

Color

Silver

Pieces in the pack

1

Join two ports at the right distance

Barrow makes this fitting for connecting two pieces of hardware with female G1/4" ports, such as two blocks or a block and a radiator, and for fine tuning the distance between them. Screw it into both ports and set the length with the sliding body; the 5 mm of adjustment takes up small differences in spacing that a fixed Connector cannot.

Within its travel only

The body is made of two knurled sleeves that slide apart. Use it only inside its 5 mm range: do not pull the sleeves further apart than 5 mm.

Three lengths

The series comes in three lengths. The THDJ15-V1 adjusts from 25 to 26.5 mm overall (1.5 mm), the THDJ20-V1 from 30.1 to 35.1 mm (5 mm) and the THDJ25-V1 from 35.5 to 44.5 mm (9 mm).

Brass with a double-protected finish

Barrow machines the body from H59 brass and protects the surface with what it calls a double electroplating process, which it says gives a fine texture that is solid and durable.

Non-slip diamond knurling

The outside carries a diamond knurl pattern. Barrow says it gives a sure grip when you screw the part in by hand.

Standard G1/4" connections

Both ends use the standard G1/4" thread of PC water cooling, so the fitting works with blocks, radiators and fittings from other makers as well as Barrow's own.

Technical data

Notes

• Barrow sells this fitting in black, white, shiny silver and gold. This listing is the shiny silver version.
• Barrow notes that it may update the look or construction of the part without notice; the part you receive is the current version.

In the box

• 1x Barrow G1/4" 20mm Male to Male Extension Fitting with Micro Adjustment - Silver
