Details

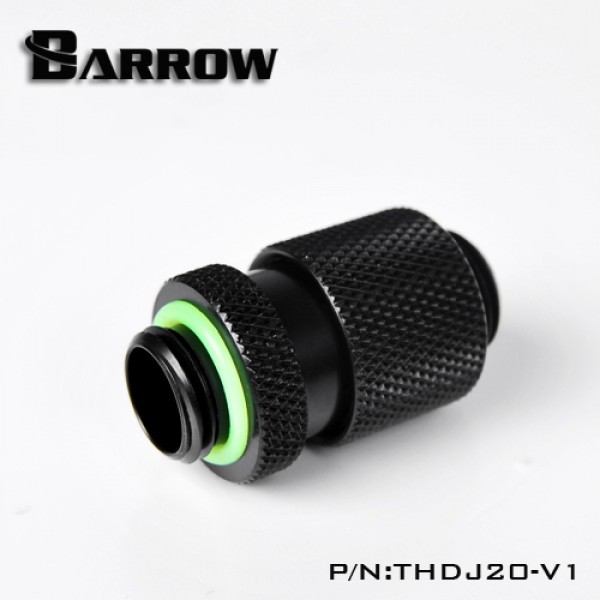

The Barrow THDJ20-V1 is a male to male extension fitting with micro adjustment. Its knurled body is 20.1 mm long and can be pulled out by up to 5 mm, so it bridges the gap between two G1/4" female ports exactly, even when the distance is not a round number. It is machined from H59 brass and finished in black.
Properties
- Type
- Extension fitting, male to male, adjustable
- Thread
- G1/4" male to G1/4" male
- Length
- 30.1 to 35.1 mm overall
- Adjustment
- 5 mm
- Diameter
- 20 mm
- Material
- H59 brass, electroplated
- Color
- Black
- Pieces in the pack
- 1
Join two ports at the right distance
Barrow makes this fitting for connecting two pieces of hardware with female G1/4" ports, such as two blocks or a block and a radiator, and for fine tuning the distance between them. Screw it into both ports and set the length with the sliding body; the 5 mm of adjustment takes up small differences in spacing that a fixed Connector cannot.
Within its travel only
The body is made of two knurled sleeves that slide apart. Use it only inside its 5 mm range: do not pull the sleeves further apart than 5 mm.
Three lengths
The series comes in three lengths. The THDJ15-V1 adjusts from 25 to 26.5 mm overall (1.5 mm), the THDJ20-V1 from 30.1 to 35.1 mm (5 mm) and the THDJ25-V1 from 35.5 to 44.5 mm (9 mm).
Brass with a double-protected finish
Barrow machines the body from H59 brass and protects the surface with what it calls a double electroplating process, which it says gives a fine texture that is solid and durable.
Non-slip diamond knurling
The outside carries a diamond knurl pattern. Barrow says it gives a sure grip when you screw the part in by hand.
Standard G1/4" connections
Both ends use the standard G1/4" thread of PC water cooling, so the fitting works with blocks, radiators and fittings from other makers as well as Barrow's own.
Technical data
| Model | THDJ20-V1 |
| Type | Micro adjustment extension, male to male |
| Threads | G1/4" male | G1/4" male |
| Body length | 20.1 mm closed, 25.1 mm open |
| Overall length | 30.1 mm closed, 35.1 mm open |
| Adjustment range | 5 mm |
| Thread length | 5 mm each end |
| Diameter | 20 mm |
| Material | H59 brass |
| Color | Black |
Notes
- Barrow sells this fitting in black, white, shiny silver and gold. This listing is the black version.
- Barrow notes that it may update the look or construction of the part without notice; the part you receive is the current version.
In the box
- 1x Barrow G1/4" 20mm Male to Male Extension Fitting with Micro Adjustment - Black
