Details
The Barrow TCBJ-DDF is a black bracket for a DDC pump. On its own it holds the pump in the case; bolted onto one of Barrow's radiator pump brackets (TCBJ-P, TCBJ-P14, TCBJ-G or TCBJ-G14) it lets you hang a DDC pump on a radiator, standing upright or lying flat.
Properties
- Type
- DDC pump bracket (extension for Barrow radiator pump brackets)
- Size
- 67 x 70.7 x 20.1 mm
- Mounting holes
- 3.9 mm, for M4 screws
- Material
- Steel
- Color
- Black
- Pieces in the pack
- 1
A DDC pump on a radiator

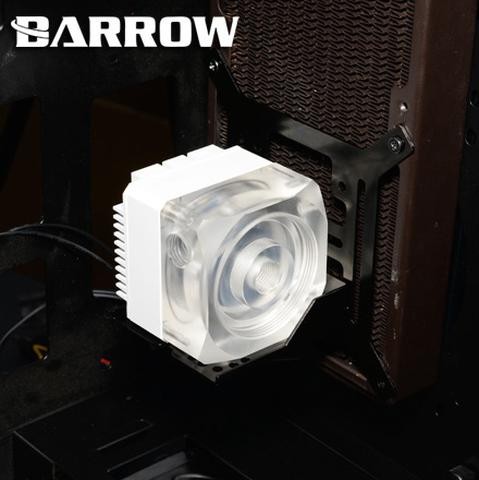

Barrow calls the TCBJ-DDF an extension bracket. Use the four M4 screws and nuts from the accessory pack to fasten it to a Barrow radiator pump bracket first, pick the position and direction you want, and then screw the DDC pump onto it. Barrow's pictures show the pair holding a DDC pump on a radiator inside the case.
Upright or flat

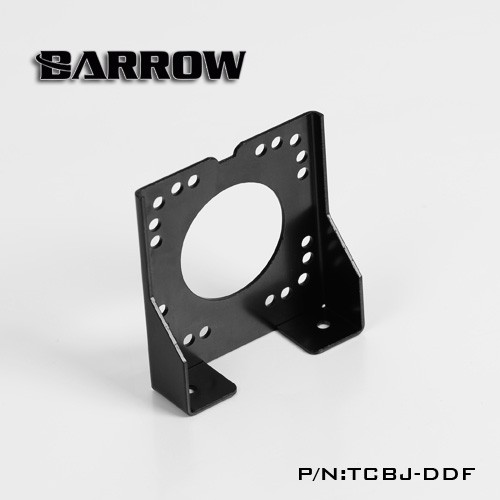

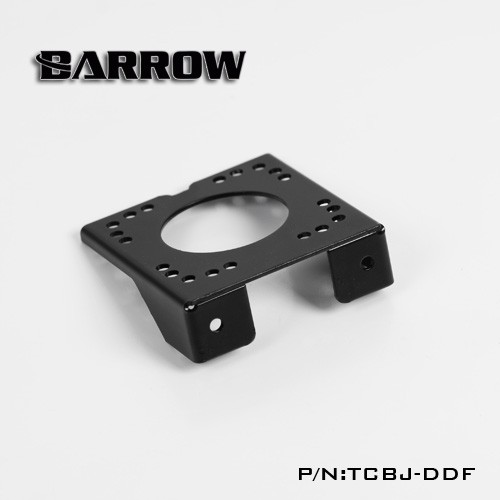

The bracket has a mounting face and two folded sides, all drilled with rows of holes. Barrow shows two layouts: an upright mount with the pump standing at 90°, and a flat mount with the pump outlet facing forward. Barrow's combination pictures use the flat TCBJ-P bracket, and Barrow says the TCBJ-DDF works the same way with the arched TCBJ-G radiator bracket.
Made for DDC pumps

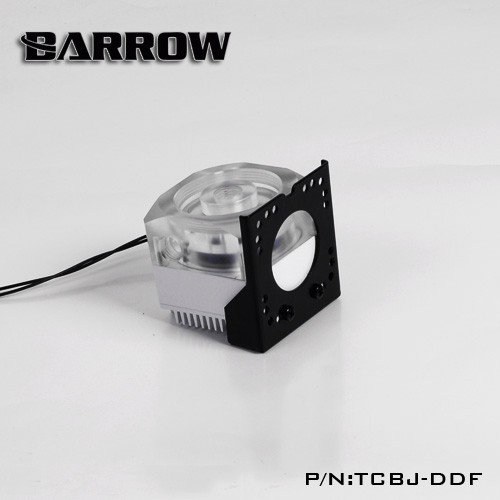

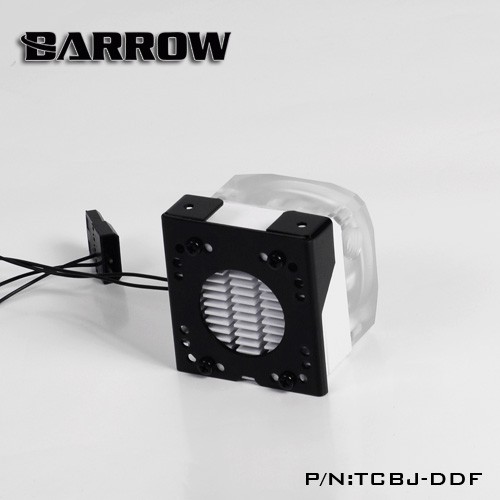

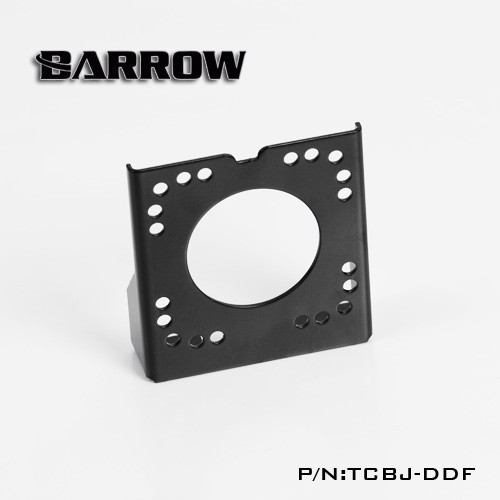

The large round opening in the mounting face takes the back of a DDC pump, and the hole rows around it line up with the pump's screw holes. Barrow's pictures show it with a DDC pump in a clear acrylic top.
Technical data
| Model | TCBJ-DDF |
| Type | DDC pump bracket |
| Dimensions (W x L x H) | 67 x 70.7 x 20.1 mm |
| Hole diameter | 3.9 mm |
| Fasteners | 4x M4 screws with nuts |
| Material | Steel |
| Color | Black |
Notes
- The pump and the radiator pump bracket are sold separately: TCBJ-P or TCBJ-G for 120 mm fan positions, TCBJ-P14 or TCBJ-G14 for 140 mm.
- Barrow says the bracket suits DDC-type pumps; check the screw holes of a pump top from another maker.
- Barrow notes that it may update the look or construction of the product without notice; the product you receive is the current version.
In the box
- 1x Barrow DDC Pump Mounting Bracket
- 4x M4 screws with nuts
