Details

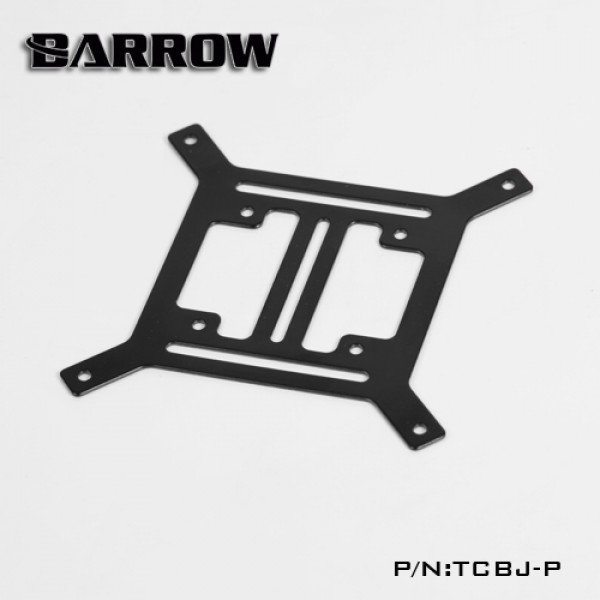

The Barrow TCBJ-P is a flat black pump bracket for a 120 mm fan position. Its four outer arms match the 105 mm hole pattern of a 120 mm fan, so it screws onto a radiator or a fan mount in the case, and the center plate takes a pump or Barrow's TCBJ-DDF DDC bracket on a 50 x 50 mm hole pattern.
Properties
- Type
- Flat pump bracket for a 120 mm fan position
- Size
- 120.6 x 120.6 x 1.5 mm
- Fan hole spacing
- 105 x 105 mm
- Pump hole spacing
- 50 x 50 mm
- Material
- Alloy steel
- Color
- Black
- Pieces in the pack
- 1
A pump seat on any 120 mm position
Barrow designed this plate to hang a pump on the outside of a radiator. The four arms reach the corner holes of a 120 mm fan position (105 mm spacing), so the bracket fits a single 120 mm radiator or any one fan slot of a longer radiator of the same fan size. Barrow's usage drawing shows the plate screwed onto the radiator with a DDC pump sitting on top.
Thin and flat
The plate is only 1.5 mm thick and lies flat on the surface it is screwed to, so the pump sits as low as possible. If you need room for a fan underneath the pump, the offset TCBJ-G and TCBJ-G14 brackets raise the center plate instead.
Pump mounting
The center plate has four holes on a 50 x 50 mm square and long slots for adjusting the position. Barrow pairs it with its TCBJ-DDF DDC pump bracket, which bolts onto the plate with M4 screws and nuts and lets a DDC pump stand upright or lie flat. Any other pump top or bracket with a 50 x 50 mm hole pattern can be screwed on as well.
Steel with a black finish
Barrow makes the bracket from alloy steel with a black finish, matching its other radiator and pump brackets.
Technical data
| Model | TCBJ-P |
| Type | Flat pump bracket, 120 mm fan position |
| Dimensions | 120.6 x 120.6 mm |
| Thickness | 1.5 mm |
| Fan hole spacing | 105 x 105 mm |
| Pump hole spacing | 50 x 50 mm |
| Material | Alloy steel |
| Color | Black |
Notes
- Use screws that suit your radiator or case; the pump and its screws are not included.
- Barrow makes this bracket for 120 mm fan positions (this one) and 140 mm (TCBJ-P14). The arched version with a raised center plate is TCBJ-G.
- Barrow notes that it may update the look or construction of the product without notice; the product you receive is the current version.
In the box
- 1x Barrow Pump Mounting Bracket for 120mm Radiators
