Details

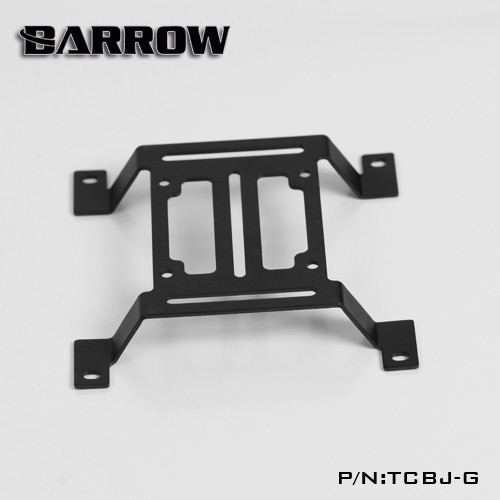

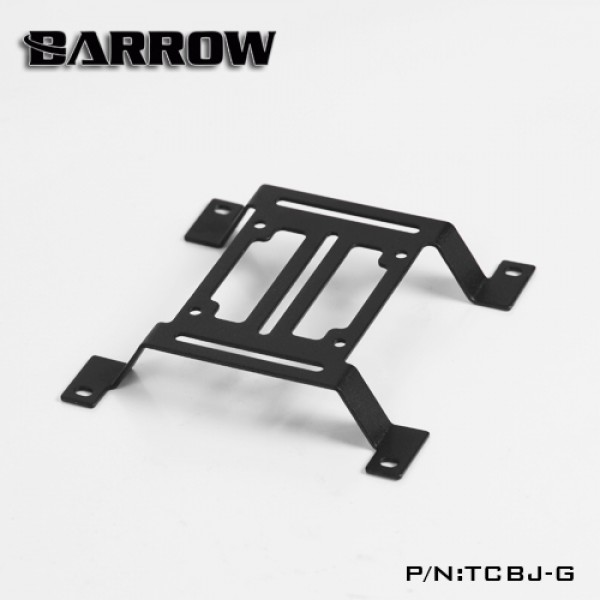

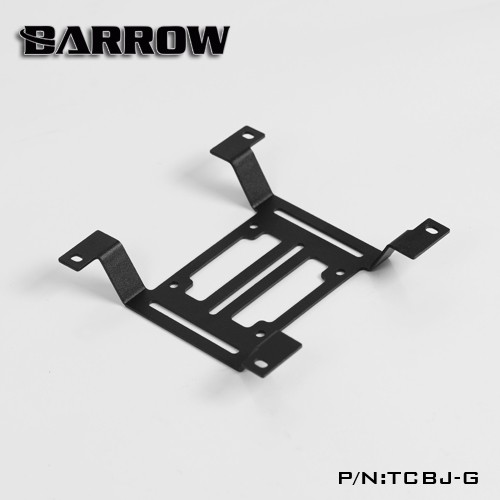

The Barrow TCBJ-G is an offset (arched) black pump bracket for a 120 mm fan position. Its feet screw into the corner holes of a 120 mm fan on a radiator, and the arched center plate (21.2 mm high overall) carries the pump over the fan instead of in place of it.
Properties
- Type
- Offset (arched) pump bracket for a 120 mm fan position
- Size
- 117.1 x 116 x 21.2 mm
- Fan hole spacing
- 105 x 105.3 mm
- Pump hole spacing
- 50.1 x 50.1 mm
- Material
- Alloy steel
- Color
- Black
- Pieces in the pack
- 1
A pump above the fans
Barrow made this bracket to hang a pump on the outside of a radiator without giving up a fan. The arch bridges a 120 mm fan: Barrow's usage drawings show the feet screwed through the fan corners into the radiator, with the pump or pump and reservoir unit sitting on top of the arch. It fits a single 120 mm radiator or any one fan slot of a longer radiator of the same fan size.
Raised center plate
The arch is 21.2 mm high overall. The fan underneath stays in place and keeps running, and the pump is held above the fan frame.
Pump mounting
The center plate has four holes on a 50.1 x 50.1 mm square and long slots for adjusting the position. Barrow pairs it with its TCBJ-DDF DDC pump bracket, which bolts onto the plate with M4 screws and nuts. Any other pump top or bracket with a 50 x 50 mm hole pattern can be screwed on as well.
Steel with a black finish
Barrow makes the bracket from alloy steel with a black finish, matching its other radiator and pump brackets.
Technical data
| Model | TCBJ-G |
| Type | Offset (arched) pump bracket, 120 mm fan position |
| Dimensions (W x L x H) | 117.1 x 116 x 21.2 mm |
| Fan hole spacing | 105 x 105.3 mm |
| Pump hole spacing | 50.1 x 50.1 mm |
| Material | Alloy steel |
| Color | Black |
Notes
- The screws through the fan into the radiator must be long enough for the fan plus the bracket foot; the pump and its screws are not included.
- Barrow makes this bracket for 120 mm fan positions (this one) and 140 mm (TCBJ-G14). The flat version is TCBJ-P.
- Barrow notes that it may update the look or construction of the product without notice; the product you receive is the current version.
In the box
- 1x Barrow Offset Pump Mounting Bracket for 120mm Radiators
