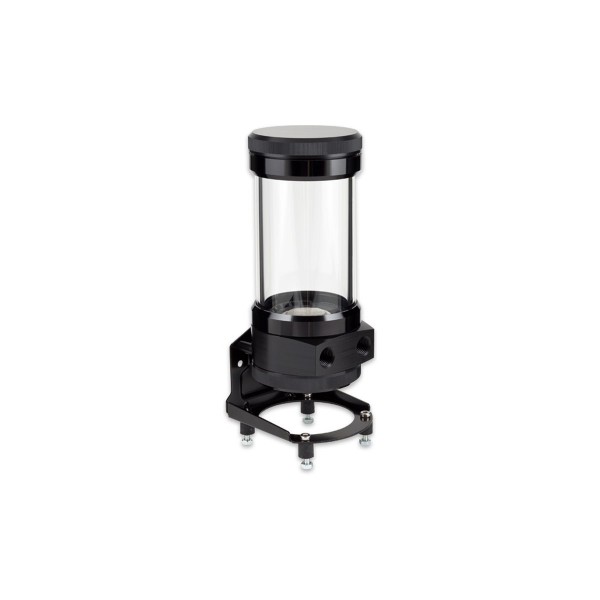

Aquacomputer ULTITUBE D5 100 Reservoir (34092)

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

Aquacomputer ULTITUBE D5 100 Reservoir (34092)

Availability: In stock - Available Now

Sku: 1019688

$78.75

Quick Overview

The expansion tanks of the ULTITUBE series are equipped with a tube made of borosilicate glass, which, in contrast to the Plexiglas often used for tube expansion tanks, has a very high hardness and scratch resistance, a very low thermal expansion and excellent chemical and thermal resistance. The glass tube has an outer diameter of 65 mm and a wall thickness of 5 mm.

OR

Details

The expansion tanks of the ULTITUBE series are equipped with a tube made of borosilicate glass, which, in contrast to the Plexiglas often used for tube expansion tanks, has a very high hardness and scratch resistance, a very low thermal expansion and excellent chemical and thermal resistance. The glass tube has an outer diameter of 65 mm and a wall thickness of 5 mm. Both ends of the glass tube are firmly connected with metal rings made of black anodized aluminum, which do not come into contact with the cooling medium. The base and lid of the ULTITUBE series are made of resistant acetal and screwed to the glass tube. A large opening is available for filling the expansion tank after unscrewing the lid.

A filter element made of a fine stainless steel wire mesh is integrated in the bottom of the container and, in addition to functioning as a particle filter, also separates air bubbles. The filter element is integrated in a molded rubber part and can, for example, be rinsed out under running water. The seal in the upper area of ​​the glass tube is also designed as a molded rubber part for easy assembly and is therefore securely positioned when the lid is screwed on.

All D5 pumps offered by Aqua Computer can be mounted on the bottom of the expansion tank, as well as pumps of the same design from other manufacturers. When developing the expansion tank, attention was paid to optimal flow behavior, the result is extremely quiet and quiet operation of the pump. The pump is attached using a slim, black anodized aluminum ring. It is not possible to use the expansion tank without a pump.

Fastening material for mounting on a side / rear wall or a standing mounting are included in the scope of delivery. Four soft rubber decouplers are included for decoupling.

Technical specifications:
Filling volume: approx. 230 ml
Connection thread: G1 / 4
Dimensions without pump: approx. 72 x 72 x 160 mm
Dimensions with D5 pump (not included): approx. 72 x 72 x 200 mm
Dimensions with D5 NEXT pump (not included): approx. 72 x 72 x 215 mm
(All dimensions without fastening material)
In the Ultitube series, the number 100/150/200 in the product name refers to the length of the glass tube in millimeters.

Scope of delivery:
An expansion tank
Fastening ring and seal for fastening the pump
Fastening material

Please note:
The expansion tank is supplied without connections, please order suitable connections separately. A D5 pump is also required and is not included in the scope of delivery! When used with a D5 NEXT, the bracket included in the scope of delivery cannot be used; instead, it can be installed directly on the D5 NEXT. Alternatively, a suitable bracket is available as an optional accessory under item number 1019699 (not included in the scope of delivery)

Additional Information

NE US Item # No
NE CA Item # No
Amazon ASIN NA
Manufacturer Aquacomputer
Overall Dimensions 72 x 72 x 160 mm (without pump and mounting)
Color Black
Reservoir Type Tube
Reservoir Size 230 mL
Requires Pump Top No
Number of Ports 2x G1/4
Pump Included No
Material Borosilicate Glass
Pump Compatibility D5
Included -Reservoir
-Fastening ring and seal for fastening the pump
-Mounting Materials
