Details
The Aquacomputer Standalone Mounting Kit for LEAKSHIELD is a retrofit kit for stand alone installation of the LEAKSHIELD for ULTITUBE (34137), for use without an ULTITUBE reservoir. The LEAKSHIELD itself is not part of the scope of delivery.
Properties
- For
- LEAKSHIELD for ULTITUBE (34137)
- Thread
- G1/4 connection thread
- Dimensions
- approx. 140 x 82 x 46 mm with mounting bracket
- Material
- Acetal inlay plate, anodized aluminum ring, stainless steel bracket
Technical data
The connection thread size is G1/4, and with the stainless steel mounting bracket fitted the kit measures approx. 140 x 82 x 46 mm. The other parts of this kit are an inlay plate made from acetal, a gasket and a fastening ring made from anodized aluminum.
What the loop needs
You need the LEAKSHIELD for ULTITUBE (34137), which is sold separately, and a G1/4 fitting for the connection thread; matching ones are in our fittings section. More leak testing and leak protection parts are under leak prevention.

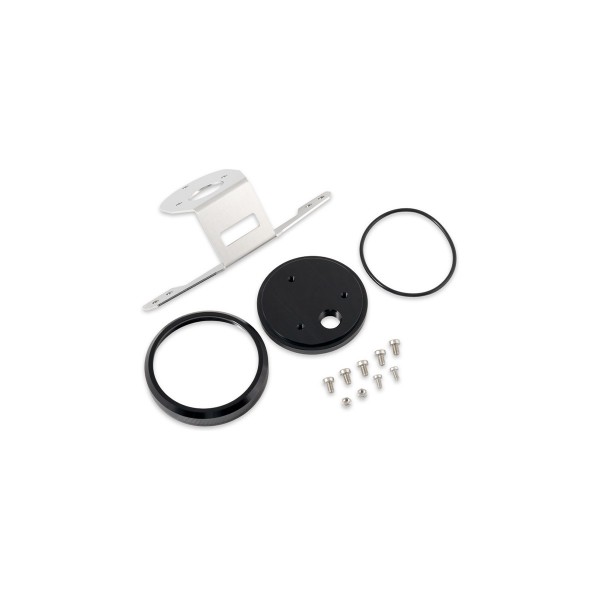

In the box
- Inlay plate made from acetal
- Gasket
- Fastening ring made from anodized aluminum
- Stainless steel bracket
- Mounting material
