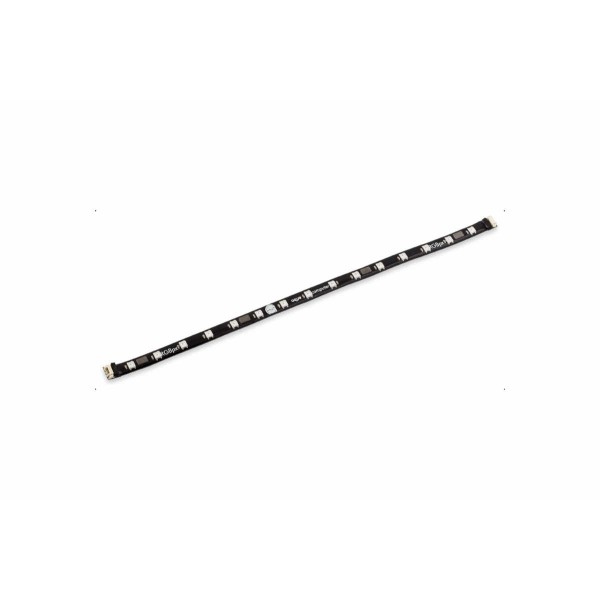

The Aquacomputer RGBpx LED-Strip 32cm Length - 10mm Width - 15 LEDs is an addressable LED strip matching Aquacomputer's RGBpx system, approx. 32 cm long and 10 mm wide, with 15 individually controllable LEDs. It runs from an Aquacomputer device with an RGBpx output and an RGBpx connection cable.
Properties
- For
- RGBpx output of an Aquacomputer control unit
- LEDs
- 15, individually addressable, transparent encapsulation
- Length
- approx. 32 cm
- Width
- approx. 10 mm
- Mounting
- four magnets, self-adhesive back
Mounting and cutting details
The LEDs sit under a transparent coating. Four magnets are integrated into the strip, which makes mounting it easy, and the back of the strip is additionally self-adhesive.
The strip can be shortened or cut to length after each LED, between one LED and the next. Once it has been cut, no further strip can be connected to its end in this case.
What you need to connect it
To operate the strip you need an Aquacomputer control unit with RGBpx output, from the list below, plus an RGBpx cable such as the RGBpx connection cable, 50 cm. Both are required and not included. A connector at the end of the strip takes the next RGBpx component, so multiple components link together in a chain through their compatible connector ends. More strips are in our addressable RGB LED strips section.
Compatibility
Aquacomputer lists the strip as compatible with these devices:
