Details
The Aquacomputer Retrofit Kit Socket AM5/AM4 for Cuplex PRO (21215) is an AMD conversion kit for a CPU water block: it lets you install a cuplex PRO on a Socket AM5 or AM4 motherboard. The kit does this with a new acrylic top for the block.
Properties
- For
- cuplex PRO water block
- Sockets
- AM5, AM4
- Material
- Acrylic top, stainless steel springs
- Ports
- G1/8 threads on the top
How the conversion works
To do so, the acrylic top of the block will be exchanged for the one in this set, which can be used on either AMD socket. The four threaded bolts come in both imperial and metric versions, and springs with knurled nuts set the mounting pressure. Please note that the new top uses G1/8 threads, so the fittings must match that thread.
The gasket
Like Aquacomputer, we recommend that you exchange the gasket whenever the water block is being disassembled. For that reason a replacement O-ring gasket is included in the conversion kit, so the block can be reassembled with a fresh seal.
What the conversion needs
The kit is for a cuplex PRO you already own. Other mounting parts are in our mounting hardware section, and complete blocks for this platform are among our AMD CPU blocks.

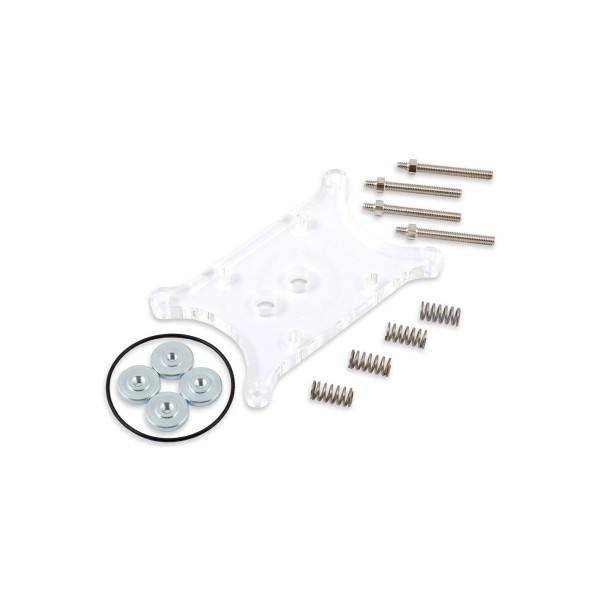

In the box
- 1x Acrylic top
- 1x O-ring gasket
- 4x Threaded bolts (imperial/metric)
- 4x Stainless steel springs
- 4x Knurled nuts
