Details

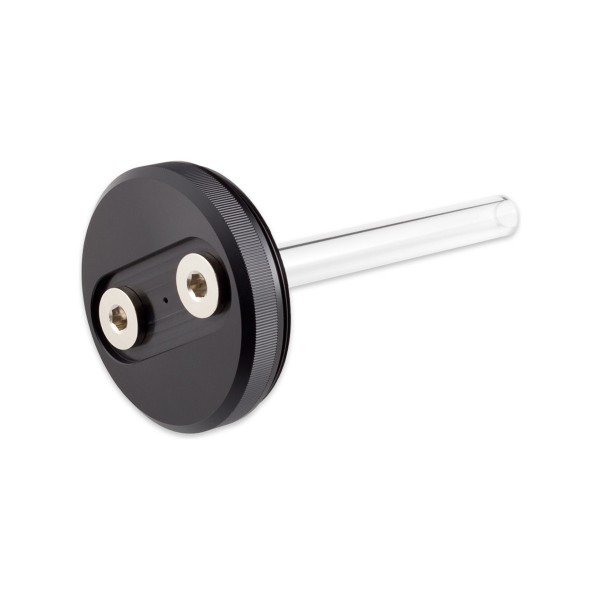

The Aquacomputer Multiport Lid for ULTITUBE 150 Reservoir (34132) is a replacement lid for ULTITUBE 150 series reservoirs, with two threaded G1/4 ports and an integrated pressure compensation membrane. The reservoir is not included in delivery.
Properties
- For
- ULTITUBE 150 series reservoirs
- Ports
- 2x G1/4
- Material
- Acetal
- Inlet tube
- Acrylic glass, approx. 100 mm
Pressure equalization membrane
The lid is made of acetal and has a membrane that lets gases pass but completely blocks coolant from leaking. It continuously equalizes the internal pressure of the liquid cooling loop with the ambient pressure. That way it effectively compensates the pressure fluctuations caused by temperature changes.
Return port and inlet tube
The coolant return can be connected to the reservoir lid through the G1/4 ports. An enclosed acrylic glass tube, about 100 mm long, can be inserted in the lid where the coolant is flowing in. It helps prevent noise and bubble formation due to that coolant influx.
What you need
The lid needs an ULTITUBE 150 reservoir, for example the ULTITUBE D5 150 Reservoir (34091). The same lid in other sizes is sold for the ULTITUBE 100 (34131) and ULTITUBE 200 (34133). G1/4 fittings for the return line are in our fittings section.
Notes
- The recess around the connection threads measures 25 mm in diameter and 2.5 mm in depth. Connectors with a larger outer diameter only fit with suitable extensions, not included in delivery.
In the box
- 1x Multiport lid for the ULTITUBE 150 reservoir
- 2x G1/4 screw plugs
- 1x Acrylic glass tube, 100 mm
