Details
The Aquacomputer Mounting Plates, Socket 1851/1700/1366/1200/1156/1155/1151/1150/775 for Cuplex Kryos PRO / XT / HF (21568) are a retrofit kit for a cuplex kryos PRO, XT or HF CPU waterblock. Aquacomputer lists the kit for Intel sockets LGA 1851, LGA 1700, 1200, 1156, 1155, 1151, 1150, 775 and 1366. It is not compatible with the screws of socket 2011 mounts.
Properties
- For
- cuplex kryos PRO, XT, HF
- Sockets
- LGA 1851, LGA 1700, 1200, 1156, 1155, 1151, 1150, 775, 1366
- Pieces
- 2 mounting plates, 4 spacers M4 x 3
- Material
- Stainless steel plates
Rebuilding the block for another socket
With this kit, an existing cuplex kryos PRO, XT or HF can be adapted to different mainboards and processors. These two plates replace the original ones on the block, so the same waterblock can be used on a new platform when you change the CPU. The cuplex kryos Delrin has its own mounting plates for the Delrin version.
What the rebuilding needs
Apart from the spacers, the kit contains no screws or other mounting material. Those parts are being reused from the original water block. Please note: socket 2011 mounts use a completely different screw kit that can not be reused, hence a block built for socket 2011 cannot keep its own screws. In this case also order article number 96047.
Fitting a cuplex kryos XT or HF onto socket 1700 takes four additional M4 x 6 mm screws, item no. 91177, which are ordered separately. Other CPU mounting parts are in our mounting hardware section.
In the box

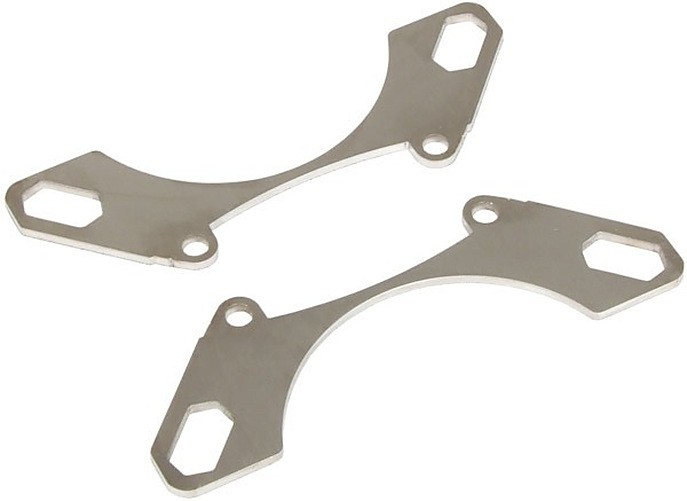

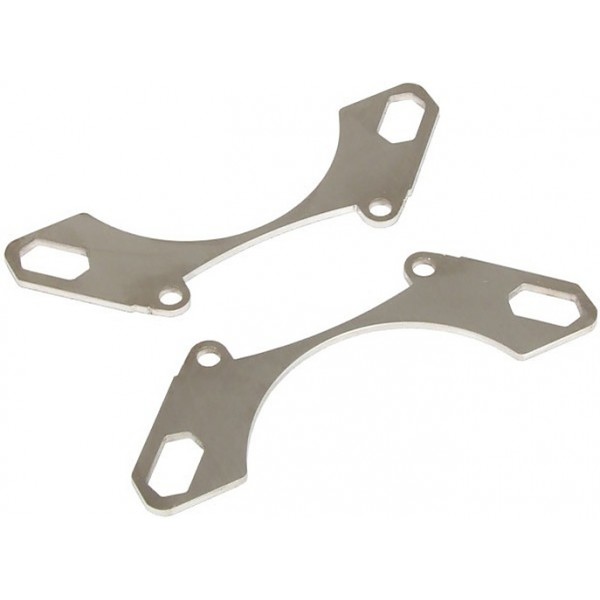

- 2x Stainless steel mounting plates
- 4x Spacers M4
