The cuplex kryos NEXT represents a new milestone in the development of CPU water coolers. Every detail has been analyzed, optimized and tested in order to achieve perfection in the areas of cooling performance, assembly and functionality. The result is not just a CPU cooler that sets new standards in cooling performance - an entire model family covers a spectrum of color and equipment variants. A worldwide unique feature of CPU water coolers in the VARIO models is a base plate that can be deformed during operation - never before has a CPU cooler been able to be adjusted to an optimal fit to the CPU during operation. The models with the VISION module are equipped with powerful electronics: a high-resolution OLED display, integrated water temperature measurement and USB interface are just three examples of the range of functions.

Radiator base with microstructure
The radiator base of the cuplex kryos NEXT is equipped with an extremely fine microstructure, the structure width is less than 200 µm. The coolant flows through a flat nozzle integrated in the cooler housing onto the center of the microstructure and is discharged from there in two directions. Depending on the cooler variant, the cooler base is made of copper, nickel-plated copper or .925 sterling silver.

mounting system
The mounting system of the cuplex kryos NEXT consists of solid stainless steel sheets with a material thickness of 2.5 mm, into which nickel-plated spring cups are pressed. Knurled screws and springs attach the cooler to the mainboard. When installed, the holding system looks very tidy due to the spring cup and the low overall height. All bracket variants have a defined stop for optimal contact pressure and force distribution. The knurled screws can be fitted by hand, and an Allen key also allows for easy installation.
The cooler variants for socket 1700 are equipped with a backplate with a rubber cover, which additionally stabilizes the mainboard.
For optimal performance, each cuplex kryos NEXT comes with 0.5 grams of excellent thermal paste, which is packed in a syringe for easy use. A plastic spatula is also included for application. The paste has a high thermal conductivity and, thanks to its low viscosity, is distributed very well between the CPU and the water cooler during assembly. The supplied quantity is sufficient for approx. five assemblies of the cooler.

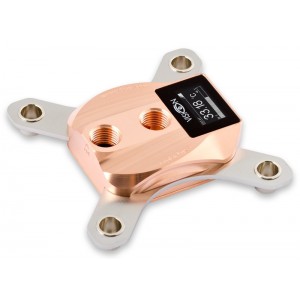

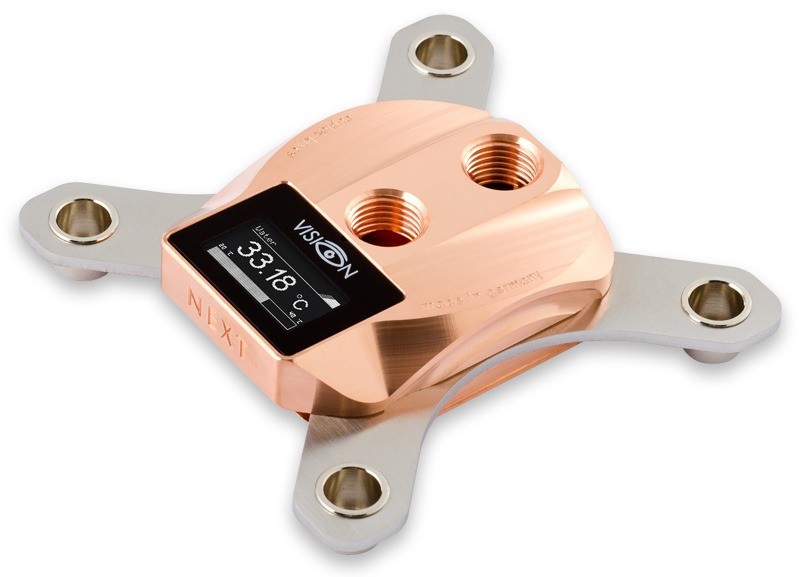

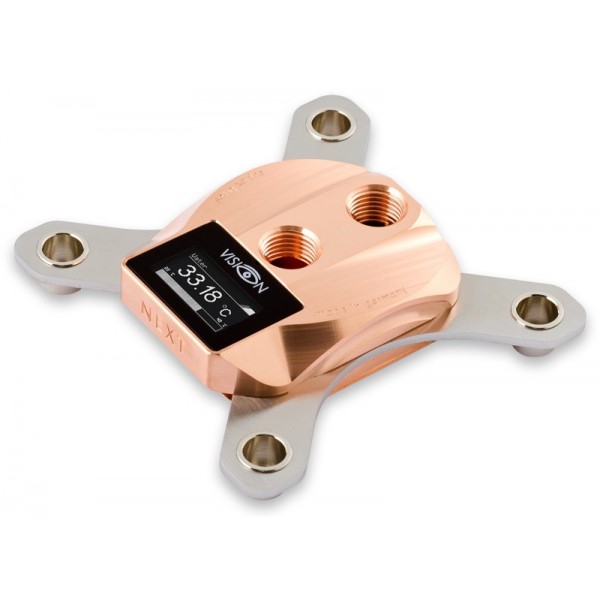

VISION: Integrated electronics
The VISION variants of the cuplex kryos NEXT are equipped with a microprocessor control and OLED graphic display. The most important features include:
- Water temperature measurement integrated in the cooler
- Connection option for a flow sensor or alternatively an alarm output
- USB interface to the PC
- aquabus interface for data exchange with an aquaero 5 or 6
- configurable display pages
- display of various hardware data via aquasuite software, e.g. B. current processor
load In the acrylic versions of the cuplex kryos NEXT with VISION, an additional RGB LED is integrated for lighting, which can be controlled depending on the temperature or via USB.
Due to the limited space, a maximum of two connection cables can be routed into the cooler, possible combinations are therefore:
- USB and aquabus
- USB and flow measurement or alarm
output - aquabus and flow measurement or alarm output

Color variants
The cooler housing is available in different materials and coatings:
Black acetal: Shiny black high-performance
plastic Acrylic glass: Transparent housing with lighting option
Copper: Shiny red
Brass nickel-plated: Bright metallic
shine Brass PVD coated: High-quality multi-layer coating with dark metallic shine

Material
combination copper/copper: Housing copper, cooler base copper

Technical data
Dimensions:
Socket 1700: 94 x 94 x 22 mm (screws and backplate not included)
Connection thread: G1/4
Connection thread distance: 24 mm Scope of

delivery
- Mounted cooler
- Mounting kit (screws, springs, etc.)
- Thermal paste, approx. 0.5 grams in a syringe
- Plastic spatula
- Assembly instruction
