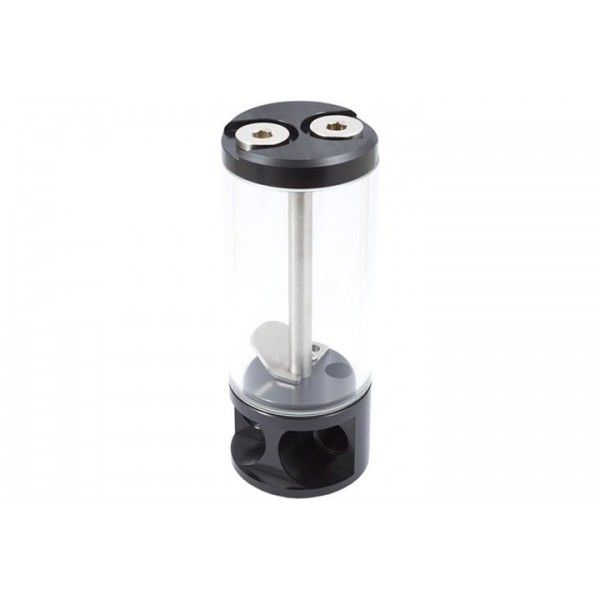

Aquacomputer Aqualis ECO 100 mL Reservoir (34054)

Availability: Out of stock

Sku: 45351


Quick Overview

The Aqualis ECO Borosilicate reservoirs are some of the highest quality, most integrated reservoirs we carry. Most are compatible with other aftermarket Aquacomputer parts and come installed with flow meters, temperature sensors and other light attachments. Aqualis reservoir / top combos are available for both standard D5 and DDC configurations.


All reservoirs of the Aqualis series are equipped with a borosilicate glass tube. In contrast to acrylic glass, which is often used for tube reservoirs, borosilicate glass is extremely hard and scratch-resistant, features superb thermal and chemical resistance and a very low thermal expansion. The glass tube of the 100 ml and 150 ml variants has an outer diameter of 50 mm and a wall thickness of 5 mm. Base and top of the Aqualis reservoirs are made from Delrin and connected by a stainless steel rod. A deflector plate is installed above the return channel into the reservoir to effectively remove air from the water circuit.

The aqualis XT variants feature an acrylic window in the base part and one LED (5 mm size) can be installed into the base part. Additionally, the XT variants feature an electronic fill level sensor with USB and Aquabus interface, a programmable alarm output and an external temperature sensor input. For monitoring and configuration, the Aquasuite software can be downloaded free of charge. In addition to the USB interface, the 4-pin Aquabus interface can be used to directly connect the fill level sensor to an Aquaero 5 or 6 controller (not included in delivery). The alarm output can be configured to be used as a rpm signal to be connected to a fan connector with fault detection (for example motherboard fan headers) or to be used as a switched output for example to connect a LED. Fill level and external temperature sensor input can be configured to raise an alarm. The external temperature sensor input is compatible with all Aqua Computer temperature sensors. Many reservoirs are also available with pump top adapters and pumps pre-installed.

Most variants are also available with a nano coating that will cause water to roll off the inner surface of the borosilicate glass tube.

Installation Manual

Additional Information

NE US Item # 9SIA9F95468756
NE CA Item # 9SIAA5K5468727
Amazon ASIN NA
Manufacturer Aquacomputer
Overall Dimensions 50 x 50 x 130 mm
Color Black / Dark Blue
Reservoir Size 100 mL
Reservoir Type Tube
Tube Diameter 50mm
Number of Ports 4x G1/4
Pump Included No
Material Borosilicate Glass
Pump Compatibility Any
Included -1x Reservoir
-Hardware and Accessories
