Details

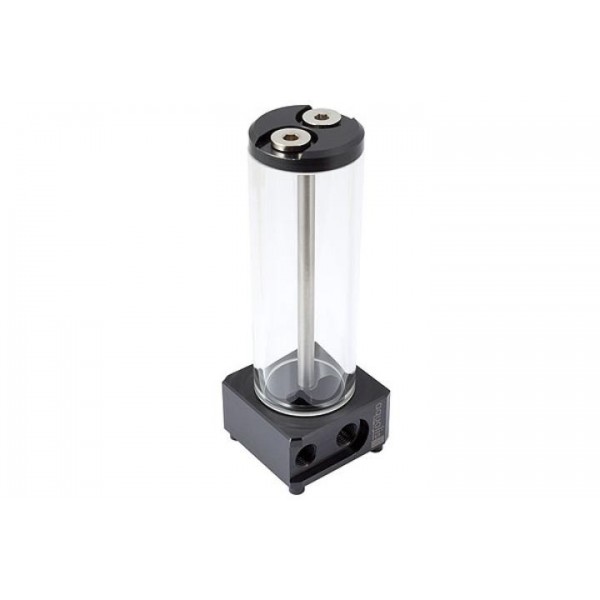

The Aquacomputer Aqualis DDC 150 mL Reservoir is a tube reservoir with a built-in DDC pump top: a Laing DDC pump motor mounts directly to its base. It holds approx. 150 ml, and the pump itself is not included.
Properties
- Pump
- Laing DDC, mounted directly (not included)
- Capacity
- approx. 150 ml
- Ports
- G1/4
- Size
- approx. 62 x 62 x 177 mm without pump
- Material
- Borosilicate glass tube, Delrin base and lid, stainless steel rod
Borosilicate glass tube
Every expansion tank in the aqualis series is equipped with a tube made of borosilicate glass. In contrast to the Plexiglas (acrylic glass) tubes commonly used for tube reservoirs, it has a very high hardness and scratch resistance, excellent chemical and thermal resistance and very low thermal expansion. On the 100 ml and 150 ml variants the tube has an outer diameter of 50 mm and a wall thickness of 5 mm.
The bases and covers are made of Delrin, and lid and base are connected by a stainless steel rod. All 100 ml and 150 ml versions are also available with a nano coating, allowing the water to pearl off from the inside of the glass. One of them is the aqualis DDC 100 ml with nano coating (34076).
DDC pump mounting
These DDC 100/150 ml variants are designed for direct mounting of a Laing DDC pump at the reservoir. Remove the four screws of the pump's top section; only the housing with the electronic components, the impeller and the gasket are needed. Seat the gasket in the groove of the pump housing, insert the motor and secure it with the M4 x 16 mm screws, gently and by hand.
Four rubber decouplers (art. no. 41092, the Ultra Soft Pump Decoupling Kit) fit into the rear of the base part. Alternatively, install pump and reservoir in the PC case using the two mounting protrusions of the pump body. For a Laing D5 pump, the aqualis D5 100/150 ml variants are the ones to look at in our 150mm D5 tube reservoirs.
What the loop needs
A DDC pump and the fittings, both of which are ordered separately; the decouplers are not in the box either. Return line and suction line both connect to the base of the reservoir. To take the tube out, turn the top counter-clockwise, and keep the gaskets aligned in their grooves when you screw it back on without tools.
Technical details
| Dimensions without pump | approx. 62 x 62 x 177 mm |
| Dimensions with pump (not included in delivery) | approx. 88 x 62 x 192 mm |
| Filling volume | approx. 150 ml |
| Connection threads | G1/4 |
| Recess around connection threads of the base part | diameter 26 mm, depth 3.5 mm |
| Recess around connection threads of the lid | diameter 23 mm, depth 3 mm |
Notes
- A connector with a larger outer diameter than the recess only installs with a suitable extension, not included in delivery.
In the box
- 1x Reservoir Tube
- 1x DDC Pump Top
- Hardware and Accessories
- 2x sealing screws G1/4 (preinstalled)
- 4x screws (to attach the pump to the reservoir)
The installation manual for the aqualis DDC 100/150 shows pump installation, reservoir assembly and the loop connections.
