Details

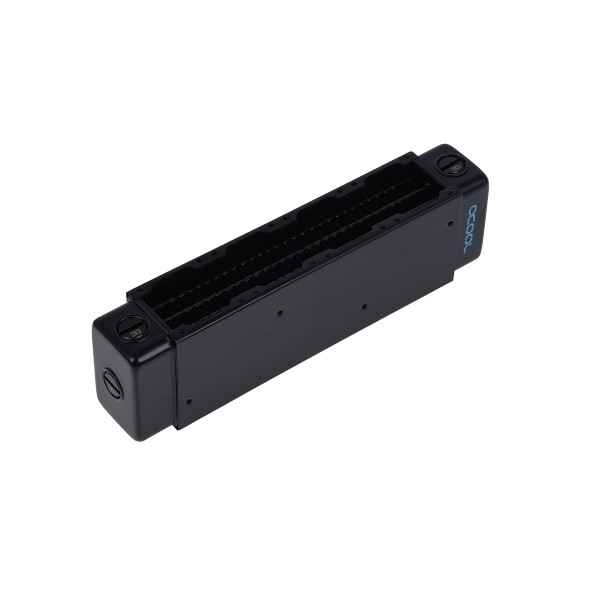

The Alphacool NexXxoS UT60 Full Copper X-Flow 40mm Quad Radiator is a radiator for four 40 mm fans, 60 mm thick, with six G1/4 connections. It is one of Alphacool's X-Flow Server Radiators: water goes in on one side and comes out on the other.
Properties
- Fans
- 4x 40 mm
- Size (L x W x H)
- 205 x 40.5 x 60 mm
- Thickness
- 60 mm
- Ports
- 6x G1/4
- Material
- copper cooling channels and slats, steel housing
- Fins per inch
- 10
X-Flow
Alphacool relies on the X-Flow for the new NexXxoS server radiators, under the heading "Find the easy route". The flow runs from one side of the radiator to the other and directly uses all fins. In Alphacool's words, the radiator immediately achieves the best possible cooling of your system with optimized water circulation.

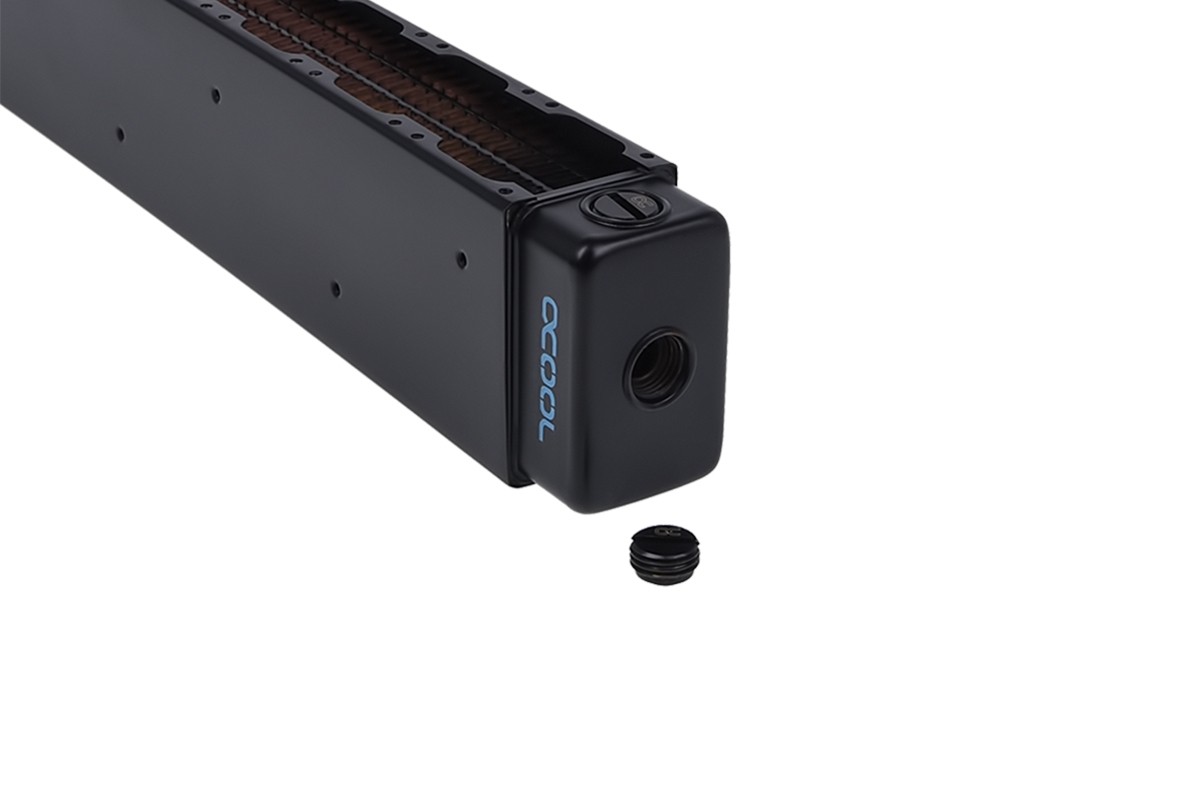

Countersunk screw plugs
For the first time Alphacool has countersunk the screw plugs, a design it calls unique and "anything but ordinary". It allows you to stay flexible with the positioning, so you can mount your radiator the way you need it. Thanks to the multiple inlets and outlets, you have more options to create something unique and, more importantly, efficient.
Solid copper
The radiator of the new series is also made of solid copper, ensuring, according to Alphacool, that the radiators offer you the highest thermal conductivity for the best performance at the highest level. Its advice is to rely on what it calls the No. 1 in materials. The technical data names copper for the cooling channels and the slats and steel for the housing.
Cooling capacity
Alphacool states that this radiator can discharge up to 280 W at an ambient temperature of 30 °C and fans with 12.000 rpm.
Different sizes, 2U server racks
The UT60 X-Flow is available in different sizes and thicknesses, and Alphacool promises the same quality for each. All radiators of this series are compatible with 2U server racks. Thanks to the special shape, Alphacool says, installation is child's play, even with the larger radiators. Alphacool introduces the series with the line that it's the best system because it's your system, and tells builders to strive for perfection. Its claim is that the server radiators help you to get one step closer and increase the performance of your system. Its closing line is to decide for yourself which size is perfect for your system and always choose the best quality.
What the loop needs
Six G1/4 connections: two are used, one inlet and one outlet, so the loop takes two G1/4 fittings. The radiator holds four 40 mm fans on its M3 fan thread.
Technical data
| Dimensions (L x W x H) | 205 x 40.5 x 60 mm |
| Quantity of cooling channels | 9 |
| Thickness | 49 - 69 mm |
| Cooling channels | Copper |
| Color | black |
| Fan thread | M3 |
| Connection | 6x G1/4 |
| Slats | Copper |
| Number of fans | 4 |
| Housing | Steel |
| Pressure tested | 0.8 bar |
| Manufacturer | Alphacool |
| Fins per inch | 10 |
| Fan size | 40 mm |
In the box
- 1x Alphacool NexXxoS UT60 Full Copper X-Flow 40mm Quad Radiator
- Mounting Materials
Alphacool's data sheet is a PDF with the technical data. Its 3D model of the radiator is an STP file, and the 3D viewer shows it from every side.
