Details

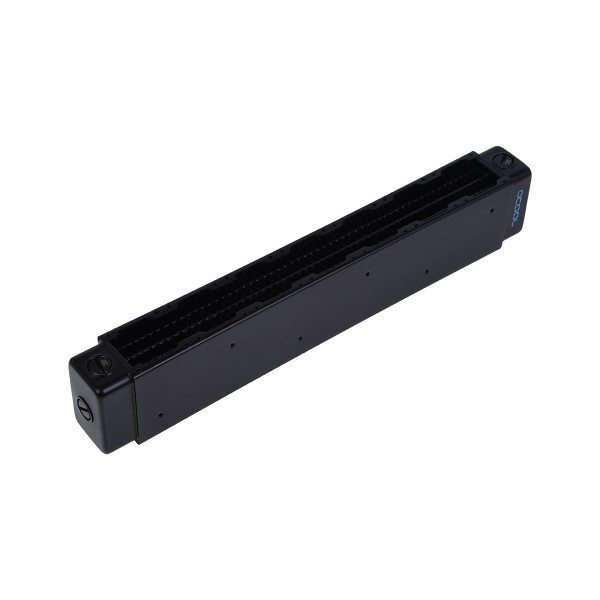

The Alphacool NexXxoS UT60 Full Copper X-Flow 40mm Hepta Radiator is a server radiator for seven 40 mm fans in a row (7x40mm), or 14 with fans on both sides. Alphacool gives its size as 326.5 x 60 x 40.5 mm (L x W x H). It has six G1/4 threads, M3 fan threads and the water inlet and outlet on opposite sides.
Properties
- Fans
- 7x 40 mm one-sided / 14x double-sided, M3 fan threads
- Size (L x W x H)
- 326.5 x 60 x 40.5 mm
- Ports
- 6x G1/4
- Material
- Copper cooling fins, cooling channels and prechamber, steel outer housing
- Fins per inch
- 12
Server radiator
Alphacool opens with a motto: "It's the best system because it's your system, strive for perfection!" The new NexXxoS UT60 X-Flow Server Radiators are meant to help you to get one step closer to that. Alphacool also expects them to increase the performance of your system. According to Alphacool, this radiator can discharge up to 490 W at an ambient temperature of 30 °C and fans with twelve thousand rpm.
X-Flow
Alphacool's title for this design is "find the easy route". It relies on the X-Flow for the new server radiators, for what it calls the best possible cooling of your system. The flow runs from one side of the radiator to the other, and on the way it directly uses all fins. Alphacool says the radiator immediately achieves that cooling with optimized water circulation.
Countersunk screw plugs
For the first time Alphacool has countersunk the screw plugs, which it describes as "anything but ordinary". This unique design, as Alphacool calls it, allows you to stay flexible with the positioning of the radiator and to mount it the way you need it. Thanks to the multiple inlets and outlets, it adds, you have more options to create something unique and, more importantly, efficient. The data sheet calls the countersunk screw plugs patented.
Solid copper
The radiator of the new NexXxoS series is also made of solid copper, ensuring, in Alphacool's words, that the radiators offer you the highest thermal conductivity for the best performance. Alphacool files this under "the best performance at the highest level" and tells buyers to rely on "the No. 1 in materials". Its technical data lists copper for the cooling fins, the cooling channels and the prechamber, and steel for the outer housing.
Different sizes, same quality
The UT60 X-Flow is available in different sizes and thicknesses, and Alphacool promises the same quality in each. All radiators of this series are compatible with 2U server racks. Alphacool says that thanks to the special shape, installation is child's play, even with the larger radiators. It leaves you to decide for yourself which size is perfect for your system, and to always choose the best quality.
What the loop needs

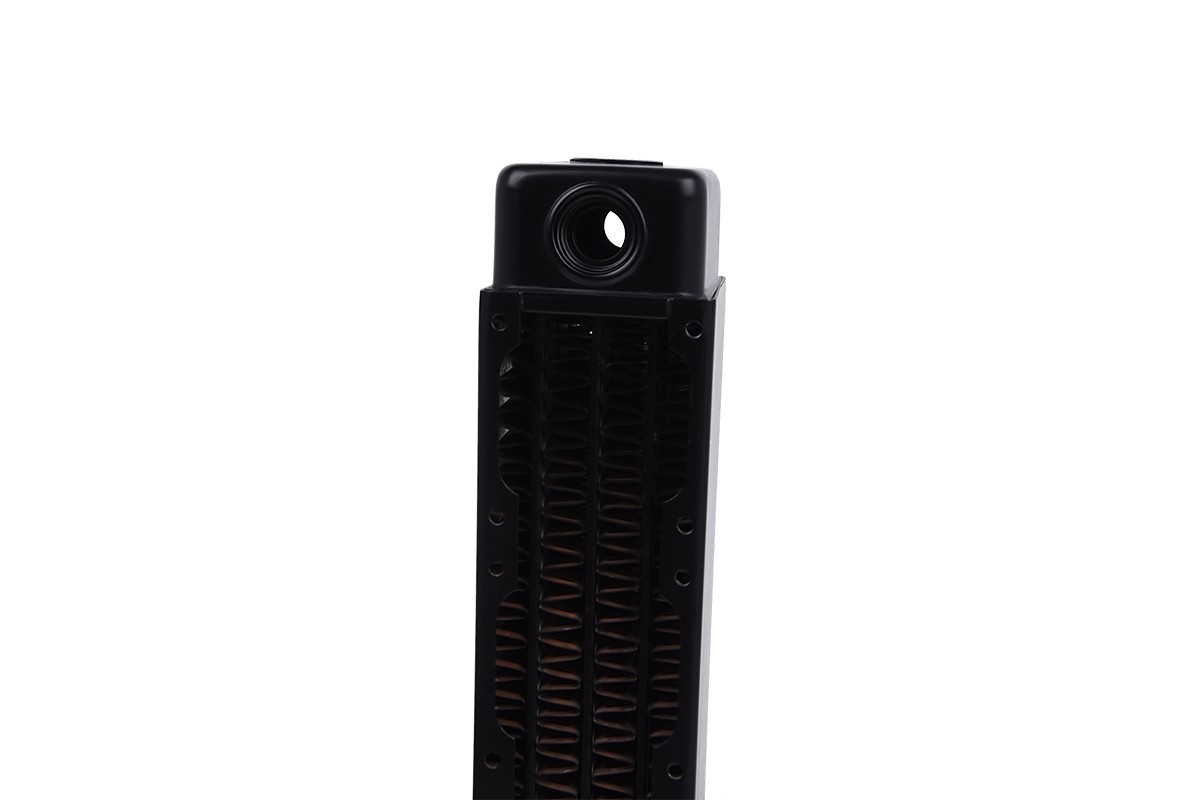

The radiator has six G1/4 threads, and the data sheet counts three connection options on each side. Two of them are used, one as inlet and one as outlet, so it takes two G1/4 fittings. Its fan slots hold seven 40 mm fans one-sided or 14 double-sided, on M3 fan threads. For mounting there are 12 M3 threads, and the data sheet names holes for M3x5 screws on the top and bottom. Mounting material is in the box.
Technical Data
| L x W x H | 326.5 x 60 x 40.5 mm |
| Quantity of cooling channels | 9 |
| Net weight | 657 g |
| Max. working temperature | 60 °C |
| Material cooling fins | Copper |
| Material cooling channels | Copper |
| Prechamber material | Copper |
| Material outer housing | Steel |
| Fins per Inch | 12 |
| Threads | 6x G1/4 |
| Mounting options | 12 x M3 threads |
| Fan size | 40 mm |
| Fan slots | 7 one-sided / 14 double-sided |
| Fan threads | M3 |
| Pressure tested | 0.8 bar |
In the box
- 1x Alphacool NexXxoS UT60 Full Copper X-Flow 40mm Hepta Radiator
- Mounting Materials
Alphacool's data sheet is a PDF. Its 3D model of the radiator is an STP file, and the 3D viewer shows it from every side.
